INSTALLATION INSTRUCTIONS

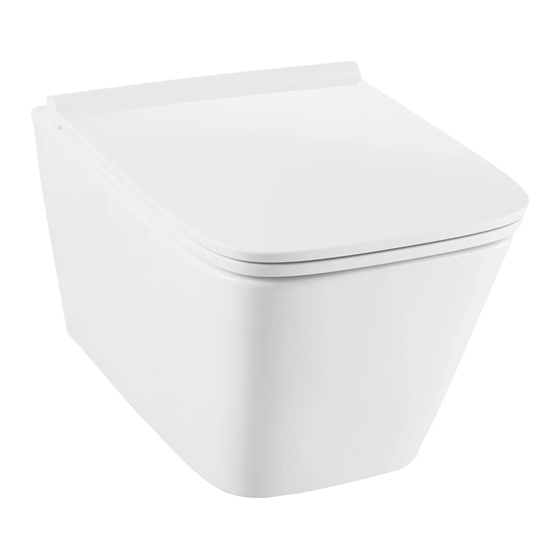

DXV Modulus
Wall Hung Dual Flush
Toilet with Seat
Model D23040A Series
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Putty Knife
10'
Tape Measure
1a
ROUGHING-IN DIMENSIONS: for GEBERIT FRAME
7-1/8"
(180 mm)
OPTIONAL SUPPLY
FOR WASHLET SEAT
4"
(100 mm)
3-1/2"
FINISHED
(90 mm)
FLOOR
0" - 7-7/8"
(0 - 200 mm)
4" MIN.
(100 mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2023
™
Adjustable Wrench
Regular Screwdriver
19-3/4"
(500 mm)
SUPPLY
AS REQUIRED
6-3/8"
(162 mm)
26-3/8"
(670 mm)
(1143-1249 mm)
X
12"-16"
(305-407 mm)
Level
Sealant
Closet Bolts
Hacksaw
5-1/2"
2-13/16"
MIN.
(72 mm)
(140 mm)
1/2"
NPT
45"-49"
FINISHED
FLOOR
STUD FRONT
CENTER PIPE
4-1/4"
(108 mm)
- 1 -
Flexible Supply Tube
14-3/16"
(361 mm)
5-1/2"
(140 mm)
22"
(559 mm)
11-13/16"
(350 mm)
13-3/4"
(350 mm)
FINISHED RIM
HEIGHT (FRM)
FRM = X
PLUS 76
3" (76 mm)
7302314-100 Rev. D (1/23)
18-1/2"
(470 mm)
