DXV Lyndon D25005001.415 Installation Instructions

INSTALLATION INSTRUCTIONS

Lyndon
™

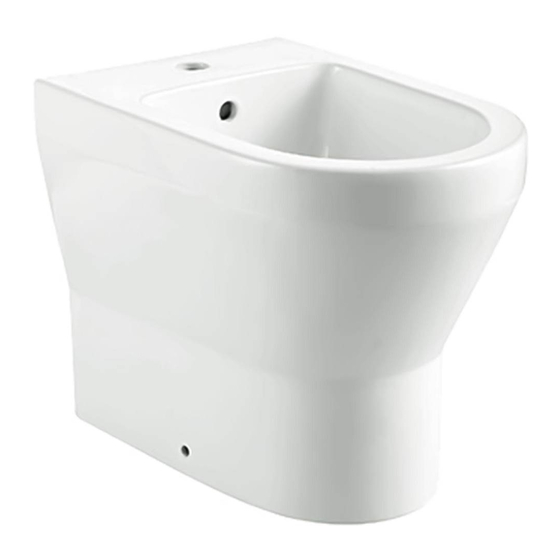

Floor Standing Bidet
Model D25005001.415
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE
LOCAL PLUMBING AND BUILDING CODES
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Putty Knife
10'
Tape Measure Regular Screwdriver
ROUGHING-IN DIMENSIONS:
20-1/2"
520 mm
1-3/8"
1-13/16"
35 mm
46 mm
2-3/8"
60 mm
8-1/4"
210 mm
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Adjustable Wrench
If a side by side toilet and bidet installation is desired, a comfortable separation
of 2 feet (610 mm) is required between the units.
2-3/8"
60 mm
14-3/16"
360 mm
2-3/4"
70 mm
6-1/5"
165 mm
Closet Bolts
Sealant
Hacksaw
20-1/2"
520 mm
1/2"
12 mm
1-3/8"
35 mm
8-1/4"
210 mm
17-5/16"
440 mm
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Flexible Supply Tube
Level
16-3/8"
415 mm
10-1/4"
260 mm
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
7302269-100 Rev. 1.0 (5/17)
