INSTALLATION INSTRUCTIONS

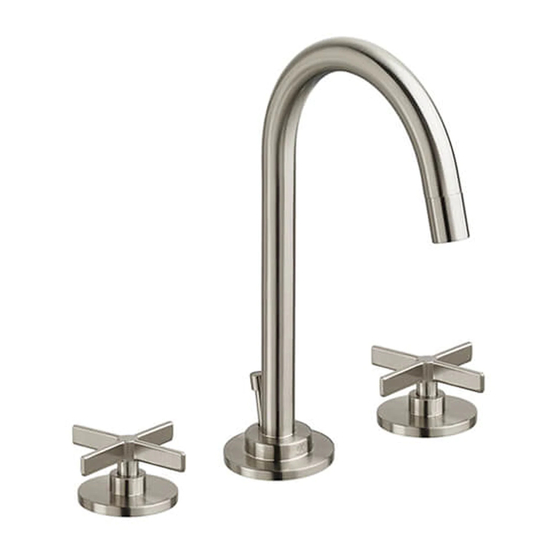

Percy
®
Widespread Lavatory Faucets
Tri-Spoke Handle
Model D35105870
Cross Handle
Models D35105840, D35105840RB
Cylinder Handle
Models D35105800, D35105800RB
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work has begun.
Channel Locks

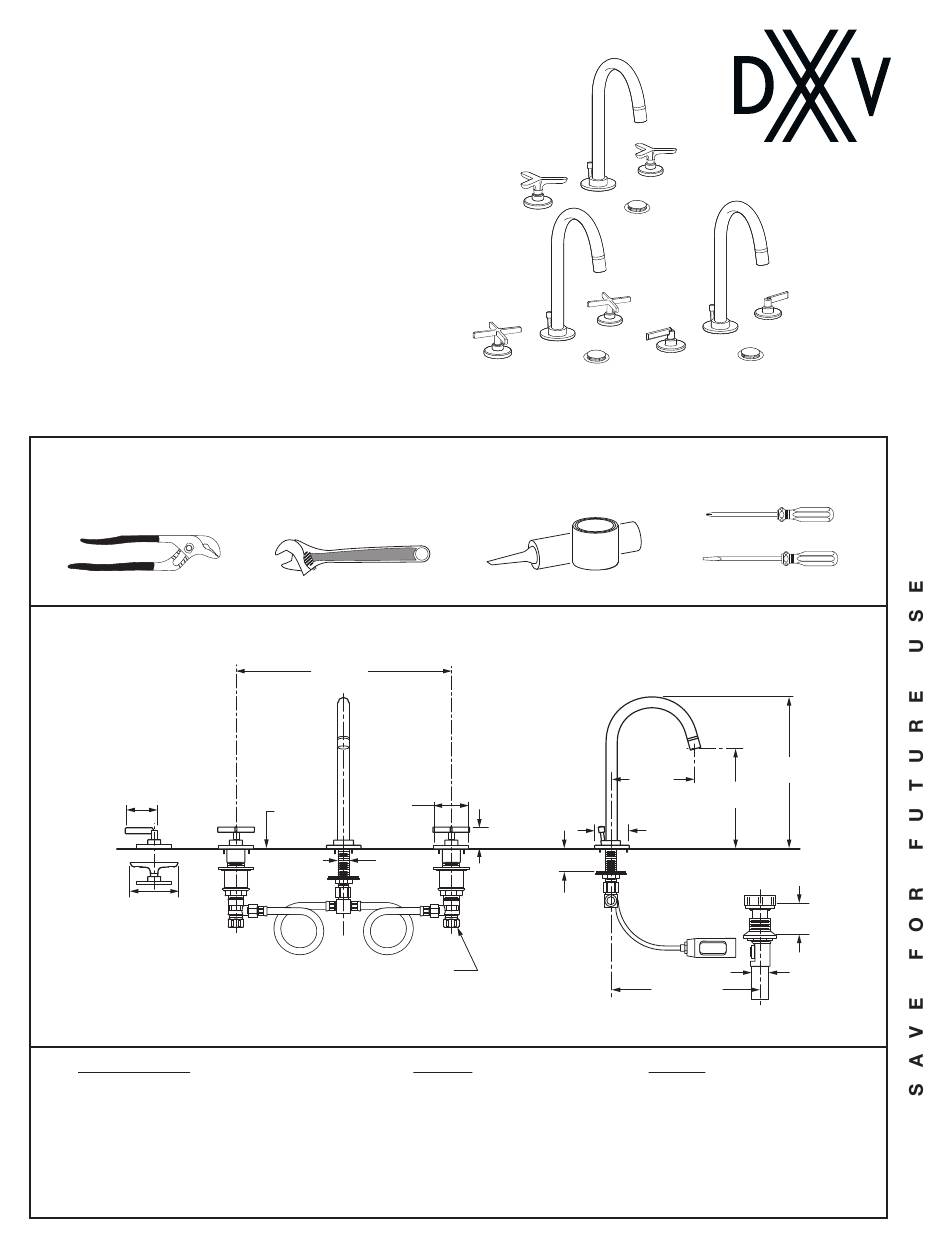

ROUGHING-IN DIMENSIONS:
• For reference
2-1/2"
(63 mm)
CROSS
CYLINDER
HANDLE
HANDLE
TRI-SPOKE
HANDLE
3"
(77 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Adjustable Wrench
6" to 12"
(152 to 305 mm)
3-1/8"
MOUNTING
(80 mm)
SURFACE
7/8" DIA.
(22 mm)
CONNECTIONS:
• 1/2" IPS FLEXIBLE SUPPLIES
• 3/8" O.D. BULL-NOSE RISERS
NOTE: MOUNTING HOLES ARE 1-3/8" DIA. (35 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
D35105840
D35105840RB
Plumbers' Putty or Caulking
5-7/16"
(138 mm)
1-1/2"
(37 mm)
1-1/2" MAX.
(38 mm)
- 1 -
D35105870
D35105800
D35105800RB
Phillips Screwdriver
Flat Blade Screwdriver
10"
(254 mm)
6-9/16"
(167 mm)
2-1/4" DIA.
(57 mm)
2" MAX
(51 mm)
1-1/4" O.D.
(32 mm)
10-1/2" MAX.
(267 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965534 Rev. 1.9 (4/18)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Percy D35105870
Summary of Contents for DXV Percy D35105870
- Page 1 D35105870 Tri-Spoke Handle Model D35105870 Cross Handle Models D35105840, D35105840RB Cylinder Handle Models D35105800, D35105800RB Thank you for selecting DXV. To ensure that your D35105840 D35105800 installation proceeds smoothly, please read these D35105840RB D35105800RB instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores.
-
Page 2: Spout Assembly
SPOUT ASSEMBLY TEE ASSEMBLY Turn off hot and cold water CAUTION supplies before beginning. • Thread TEE BODY (1) COUPLING NUT (2) to SPOUT SHANK (3). Tighten with wrenches. • Insert SPOUT ASSEMBLY (1) and CABLE CONNECTOR (2) through center hole, making sure O-RING SEAL (3) is properly seated in SPOUT BASE (4) groove. - Page 3 INSTALL POP-UP DRAIN Fig. B. Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). Fig. A. DRAIN • Remove FOAM SPACER (2) from under BODY DRAIN POP-UP (3). Fig. A. • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE MOUNTING WASHERS Fig.
- Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. Fig. A. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4"...
- Page 5 CONNECT DRAIN • Connect 1-1/4" (32mm) O.D. tailpiece on POP-UP DRAIN to waste outlet. 1-1/4" (32mm) O.D. TAILPIECE WASTE OUTLET TEST INSTALLED FITTING • With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. •...
-
Page 6: Troubleshooting Guide
Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •... -
Page 7: Unlocked Mode
STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Fig. G. LOCKED MODE: • Look at the Plastic Loop at the bottom of the Stopper and notice that the Loop is on one side of the Stopper. - Page 8 Percy ® Widespread Lavatory Faucets MODEL NUMBERS Tri-Spoke Handle D35105870 M970437-YYY0A M964630-YYY0A TRI-SPOKE HANDLE CYLINDER HANDLE Cross Handle ASSEMBLEY ASSEMBLEY D35105840 / D35105840RB Cylinder Handle D35105800 / D35105800RB Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL M964629-YYY0A CROSS HANDLE ASSEMBLEY M964751-YYY0A...
