DXV Equility D2210AA109 Installation Instructions

DXV Equility D2210AA109 Installation Instructions

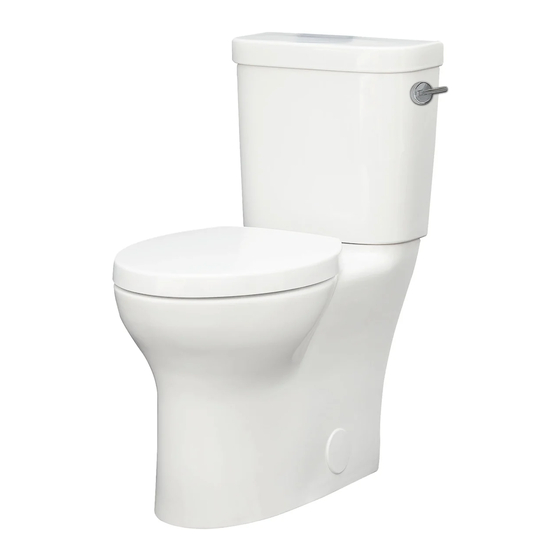

2-piece toilet, concealed trapway, right height, elongated, het, left/right-hand trip lever

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS

Equility
(Formerly LYNDON
2-Piece Toilet, Concealed Trapway
Right Height
, Elongated, HET
®
Models: D2210AA109 - Left-Hand Trip Lever
D2210AA108 - Right-Hand Trip Lever
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is tessential that the tools and materials be on hand before work is begun.
Adjustable Wrench
Putty Knife
10'
Tape Measure
Regular Screwdriver
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2

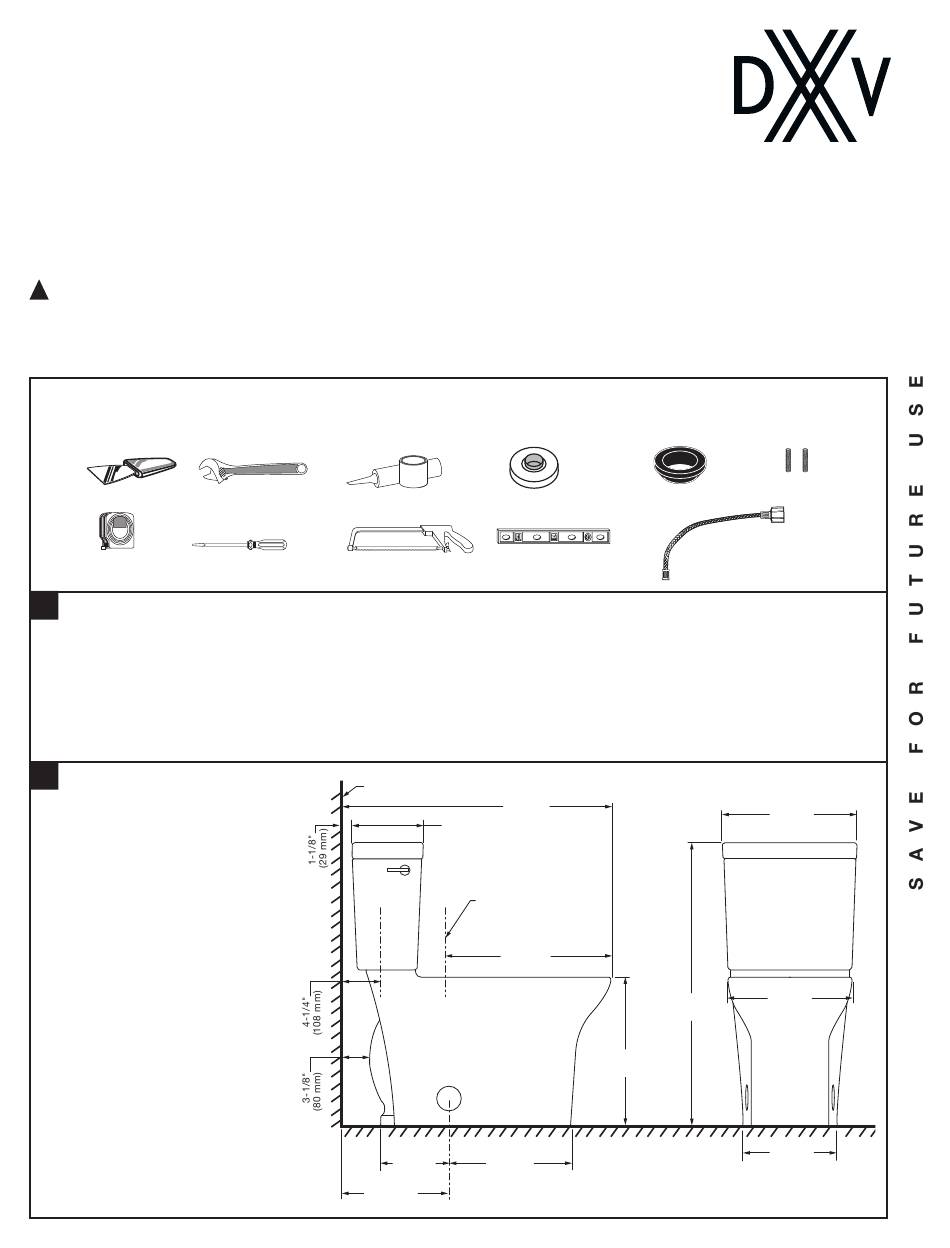

ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to
closet flange centerline must
be as listed below:
IMPORTANT: Water supply on
the wall is required at 2-1/4" or 8"
from centerline of the toilet (see
rough-in). First suggested
position is hidden behind the
toilet. The geometry of the toilet
gives space for this installation.
The second suggested position is
next to the toilet. Between these
two positions, the space for the
supply between wall and toilet is
limited to 4-1/2". In this case,
check your supply and hose
dimensions.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
)
®
Sealant
Hacksaw
FINISHED
WALL
7-15/16"
(201 mm)
9"
(230 mm)
12"
(305 mm)
- 1 -
Wax Ring
Level
30-3/16"
(767 mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140 mm) CENTERS
18-1/2"
(470 mm)
16-1/2"
(419 mm)
12-1/4"
(312 mm)
Closet Bolts
Gasket
Flexible Supply Tube
15-1/8"
(384 mm)
14"
31-9/16"
(356 mm)
(802 mm)
10-5/8"
(270 mm)
7302363-100 Rev. A (5/18)
