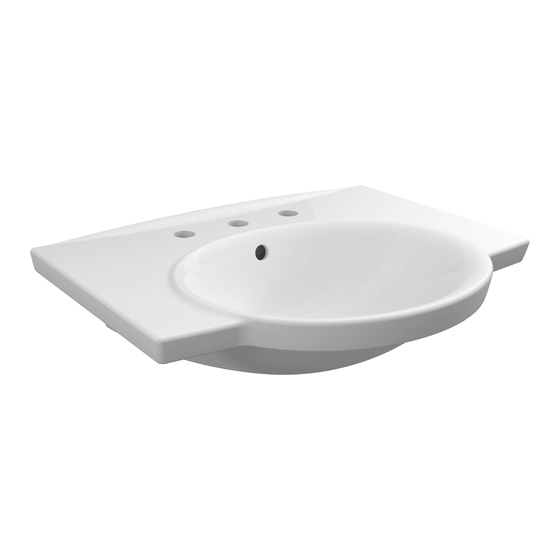

Console lavatory kit

Advertisement

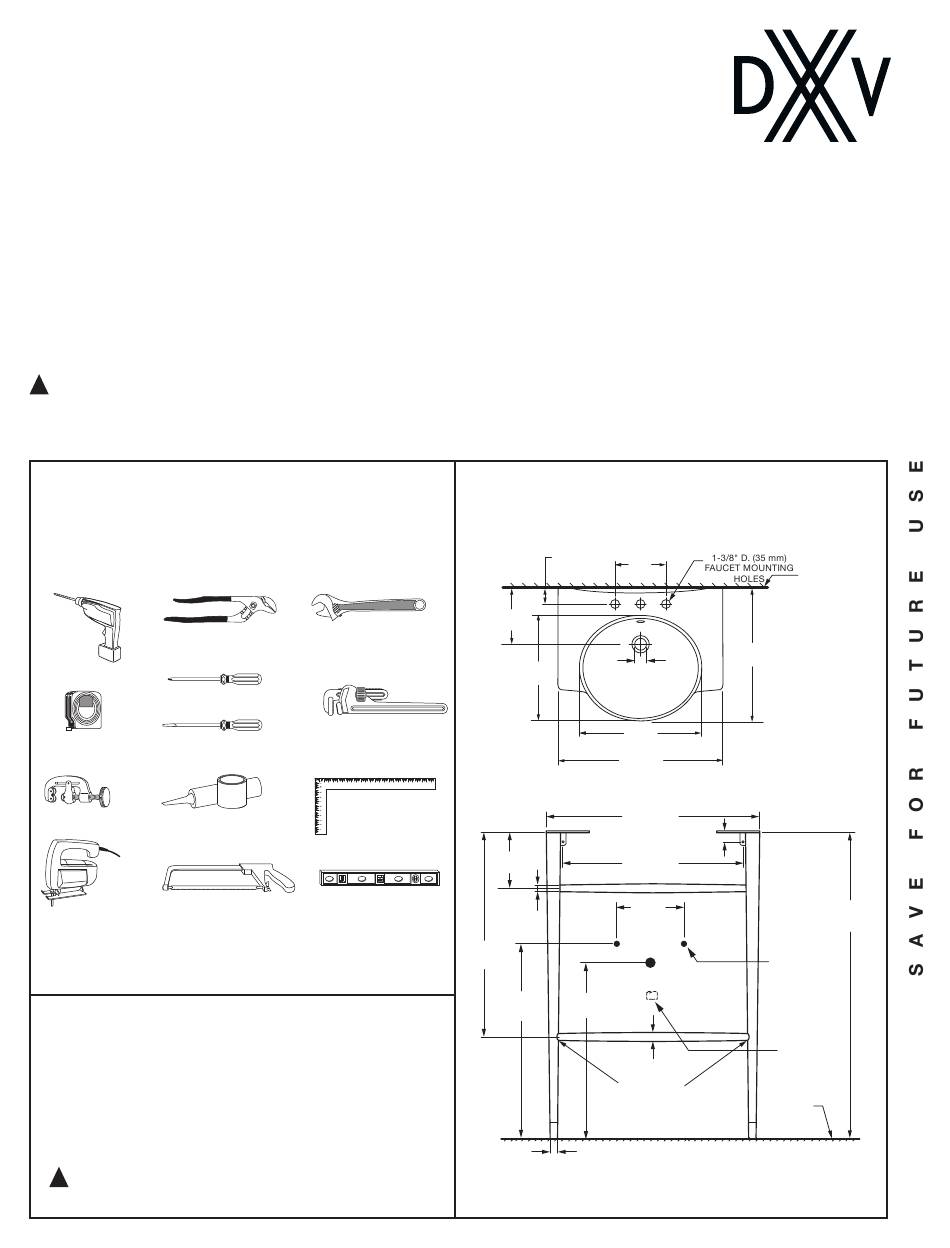

INSTALLATION INSTRUCTIONS

Lowell
Console Lavatory Kit
Models: D20070001 — Single-Hole Lavatory
D20070008 — Three-Hole Lavatory
D21420026 — 26" Console
D28005000 — Towel Bar
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY, HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
Visit www.DXV.com for French and Spanish Installatio Instructions.

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools
and materials, which are available from hardware and
plumbing supply stores. It is essential that the tools and
materials be on hand before work is begun.
Channel Locks
Electric
Drill
Phillips Screwdriver
10'
Tape Measure
Regular Screwdriver
Tubing Cutter
Sealant
Saber Saw
Hacksaw
REPLACEMENT USE
When replacing an original unit, be certain to shut-off water
supplies before removing the unit or disconnecting water
supply lines and drain fittings. Original supply lines and
shut-off valves should be replaced and used with fittings
and adapters to match the hookups on the
replacement unit.
USE TEFLON SEALANT TAPE ON PIPE THREADS
!
FOR WATERTIGHT CONNECTIONS!
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
(optional component)
ROUGHING-IN DIMENSIONS:
• For reference
Lowell Lavatory can be installed without console
(230 mm)
Adjustable Wrench
Pipe Wrench
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Square
6-5/16"
(160 mm)
Level
23-1/16"
(585 mm)
(578 mm)
- 1 -
2-3/4"
8"
(70 mm)
(203 mm)
9"
15-3/4"
1-3/4" D.
(401 mm)
(45 mm)
18-1/4"
(464 mm)
26"
(659 mm)
22-7/16"
(570 mm)
1-1/16"
(27 mm)
20-5/16"
(570 mm)
8"
(203 mm)
3/4"
(19 mm)
22-3/4"
20-1/2"
(521 mm)
1"
(25 mm)
FRONT/REAR BARS
ø 18.5 mm on both sides
ø 25 mm at the center
7/8" (22 mm)
FINISHED
WALL
21"
(535 mm)
34-5/16"
(872 mm)
SUPPLIES AS
REQUIRED
1-1/4" O.D.
WASTE
1-1/4" O.D.
TAILPIECE
FINISHED
FLOOR
7302302-100 Rev. A (6/17)
