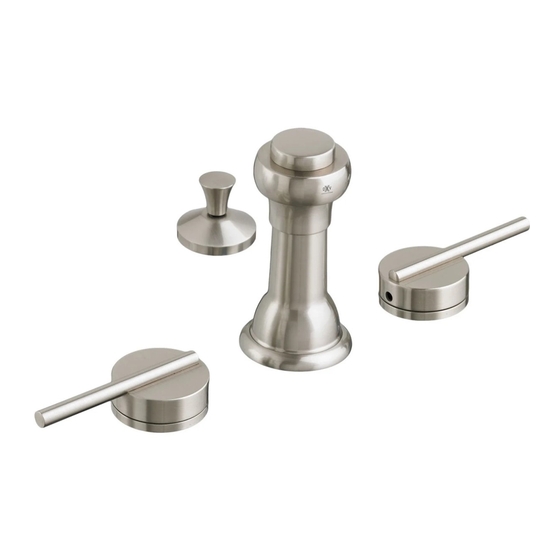

3-hole bidet set with vacuum breaker
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

INSTALLATION INSTRUCTIONS
Rem
®
3-Hole Bidet Set
with Vacuum Breaker
Model D35100330
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Tubing Cutter
ROUGHING-IN DIMENSIONS:
• For reference
3"
(75 mm)
4" MAX
(102 mm)
1-1/2"
(38 mm)
CONNECTIONS ARE FOR 1/2" IPS
FLEXIBLE SUPPLIES or 3/8" O.D.
BULL-NOSE RISERS
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Flat Blade Screwdriver
Channel Locks
Phillips Screwdriver
2-1/2" to 6"
2-1/2" to 6"
(64 to 152 mm)
(64 to 152 mm)
2-7/16"
(62 mm) D.
1-1/8" D.
1-1/8" D.
(29 mm)
(29 mm)
Plumbers' Putty or Caulking
DIVERTER
AND VACUUM
BREAKER
2"
(51 mm)
LIFT ROD
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Basin Wrench
Adjustable Wrench
13" MAX
(330 mm)
5-5/8"
(143 mm)
SPRAY
2" MAX
(51 mm)
7" MAX
(178 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965497 Rev. 1.6 (5/17)
2-1/8" DIA.
(54 mm)
1-1/4" O.D.
(32 mm)
