DXV Equility D21035033 Installation Instructions

INSTALLATION INSTRUCTIONS
Equility
™
(Formerly LYNDON
Console Lavatory Kit
Model D21035033
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully
before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

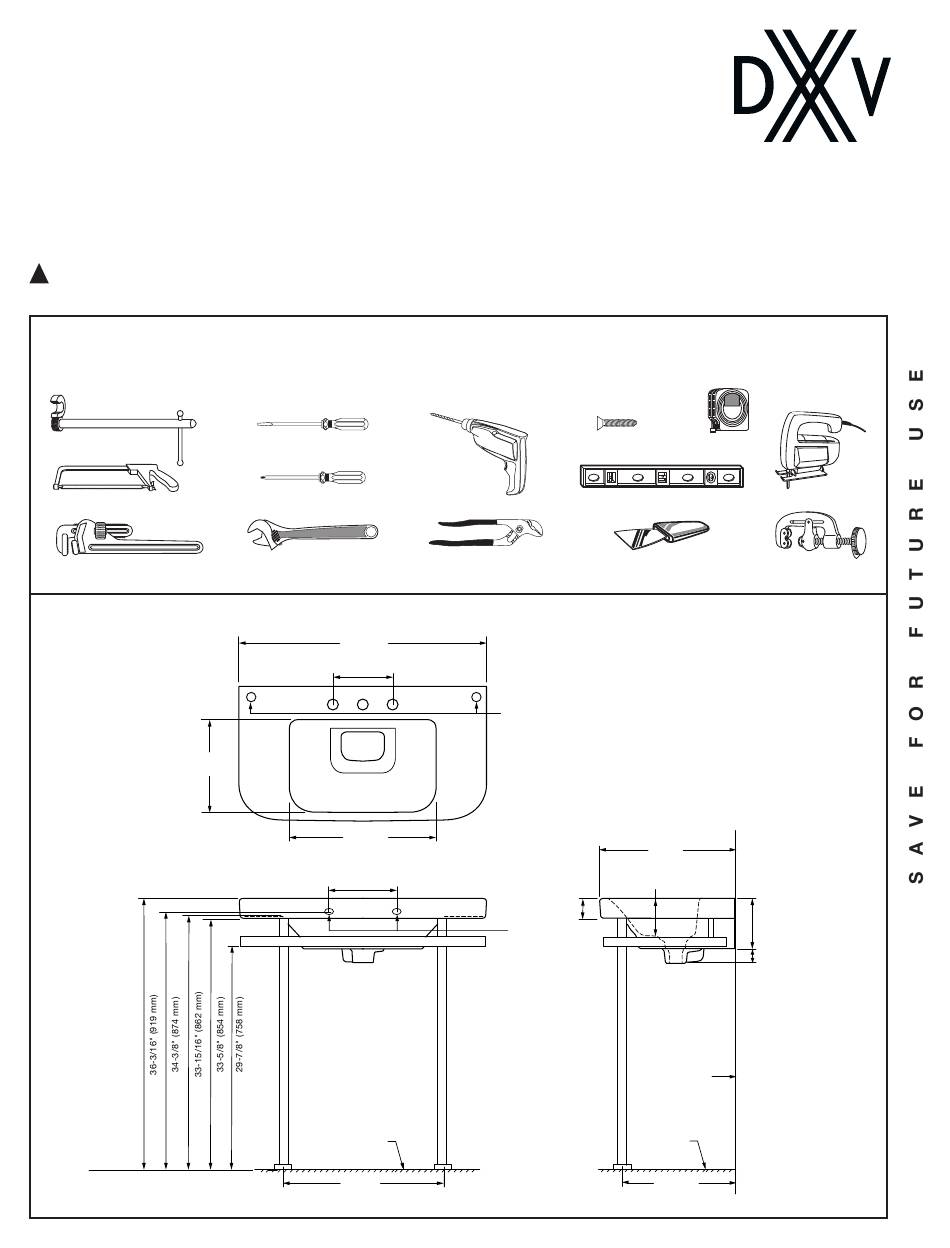

RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Basin Wrench
Hacksaw
Pipe Wrench
ROUGHING-IN DIMENSIONS:
• For reference
12"
(304 mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
)
®
Regular Screwdriver
Phillips Screwdriver
Adjustable Wrench
33"
(837 mm)
8"
(203 mm)
19-7/16"
(494 mm)
9"
(229 mm)
FINISHED
FLOOR
21-1/4"
(540 mm)
Screw
Drill
Channel Lock
CONSOLE TO LAVATORY
MOUNTING HOLES ARE IN
THE BOTTOM OF LAVATORY
2-9/16"
(65 mm)
FOR ANCHOR
SCREW MOUNT
- 1 -
10'
Tape Measure
Level Saber Saw
Putty Knife Tubing Cutter
18"
(457 mm)
5"
(128 mm)
6-5/8"
(168 mm)
1-15/16"
(49 mm)
FINISHED
WALL
FINISHED
FLOOR
15"
(380 mm)
770237-100 Rev. B (5/18)
