INSTALLATION INSTRUCTIONS

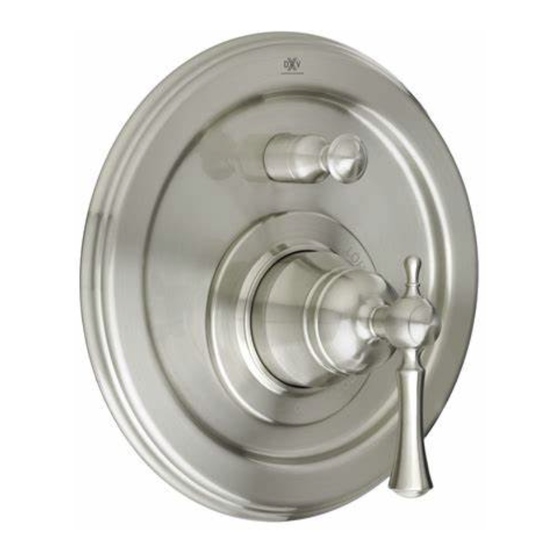

Fitzgerald
®
Pressure Balance
Tub/Shower Diverter
Valve Trim Kit
Model D35160600
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.

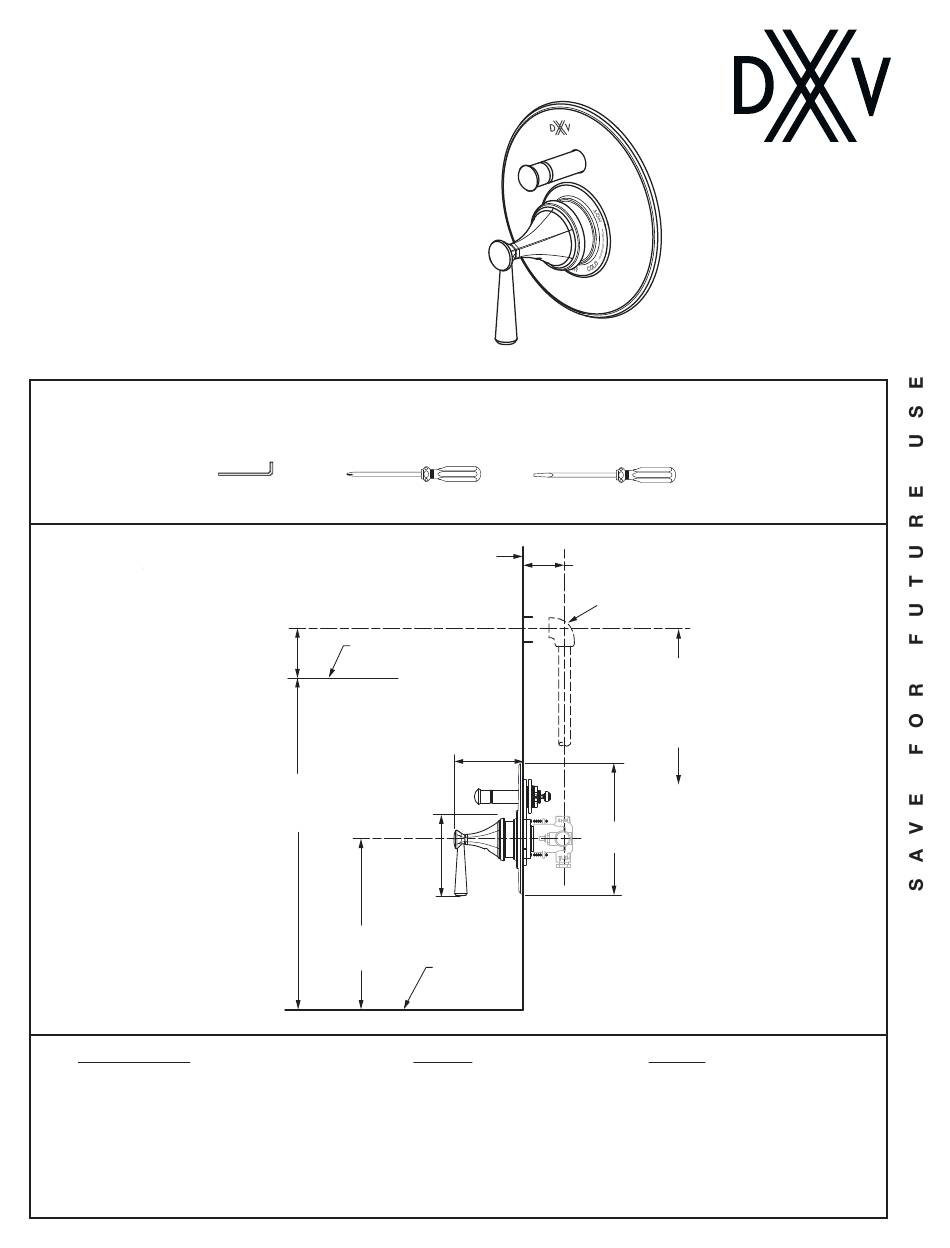

TRIM DIMENSIONS:
• For reference
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Hex Wrench
Phillips Screwdriver
(Supplied)
BOTTOM OF
SHOWER HEAD
74" FOR HEAD
CLEARANCE
(OPTIONAL)
(1880 mm)
(117 mm)
48" TO 54"
OPTIONAL
(1219 TO 1372 mm)
Flat Blade Screwdriver
FINISHED WALL
1-5/8" TO 3-1/4"
(41 TO 82 mm)
4-13/16" MAX.
(122 mm)
4-5/8"
BOTTOM OF
TUB
OR SHOWER
STALL
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
1/2" NPT
OPTIONAL TO
FINISHED
FLOOR
USUALLY
BETWEEN
72'' AND 84"
(1829 AND 2134 mm)
7-15/16"
XX" D.
(201 mm)
(XX mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965919 (8/18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Fitzgerald D35160600
Summary of Contents for DXV Fitzgerald D35160600
- Page 1 Pressure Balance Tub/Shower Diverter Valve Trim Kit Model D35160600 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL DIVERTER DIVERTER PORT Turn off hot and cold water CAUTION supplies before beginning. • When finished tiling the wall, remove PLASTER GUARD (1). Remove two screws that secure the DIVERTER LID (2) and remove Lid. Inspect the inside surface of diverter port. Diverter port must be free of any dirt.
- Page 3 • Figure 3. Thread DIVERTER KNOB (1) onto diverter stem. • Install HANDLE ADAPTER (2) onto VALVE STEM (3) and secure with SCREW (4). • Align LEVER HANDLE (5) so lever is facing down and tighten SET SCREW (6) with hex wrench to secure LEVER HANDLE (5).
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Pressure Balanced Shower Valve with Check Stops Model D35000.500 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS ROUGHING-IN DIMENSIONS:... - Page 5 CAUTION Turn off water at main supply. ROUGHING-IN PARA TENER ACCESO A LA VÁLVULA PARA DARLE SERVICIO NOTE When soldering, remove PLASTER GUARD, CARTRIDGES and CHECK STOPS (IF PRESENT). When finished soldering, flush valve body, replace Cierre el suministro de agua, ya sea cerrando el suministro principal de agua o cerrando los TOPES DE PASO de agua fría y cartridges, check stops (if present) and plaster guard to continue installation.
- Page 6 PRECAUCIÓN Cierre el agua en el suministro principal. TO GAIN ACCESS TO VALVE FOR SERVICING PRESENTACIÓN NOTA Al soldar, quite el PROTECTOR DE YESO, los CARTUCHOS y los TOPES DE PASO (SI ESTÁN PRESENTES). Al terminar de soldar, enjuague el cuerpo de la válvula, vuelva a colocar Shut off water supply by either closing off main water supply, or closing off the hot and cold CHECK STOPS on los cartuchos, los topes de paso (si están presentes) y el protector de yeso para continuar la instalación.
-
Page 7: Instrucciones De Instalación
INSTRUCCIONES DE INSTALACIÓN Válvula de ducha de presión equilibrada con topes de paso Modelo D35000.500 Gracias por elegir DXV by American Standard. Para asegurarse de que no haya problemas durante la instalación, lea atentamente estas instrucciones antes de comenzar. HERRAMIENTAS Y MATERIALES RECOMENDADOS DIMENSIONES GENERALES: "... -
Page 8: Instructions D'installation
INSTRUCTIONS D’INSTALLATION Robinet de douche à pression équilibrée avec clapets anti-retour Modèle D35000.500 Merci d’avoir choisi la marque DXV d’American Standard. Avant de commencer, veuillez lire ces instructions attentivement pour vous assurer que votre installation s’effectue sans problème. OUTILS ET MATÉRIAUX RECOMMANDÉS La majorité... - Page 9 ATTENTION Fermer l’entrée d’eau principale. AJUSTEMENT POUR ACCÉDER À LA VANNE À DES FINS D’ENTRETIEN REMARQUE Avant de souder, retirer le DISPOSITIF DE PROTECTION, les CARTOUCHES et les CLAPETS ANTI-RETOUR (le cas échéant). Lorsque la soudure Fermer l’alimentation en eau en fermant l’alimentation principale en eau ou en fermant les CLAPETS ANTI-RETOUR est terminée, rincer le robinet, remplacer les cartouches, les clapets anti-retour sur le robinet, le cas échéant.
