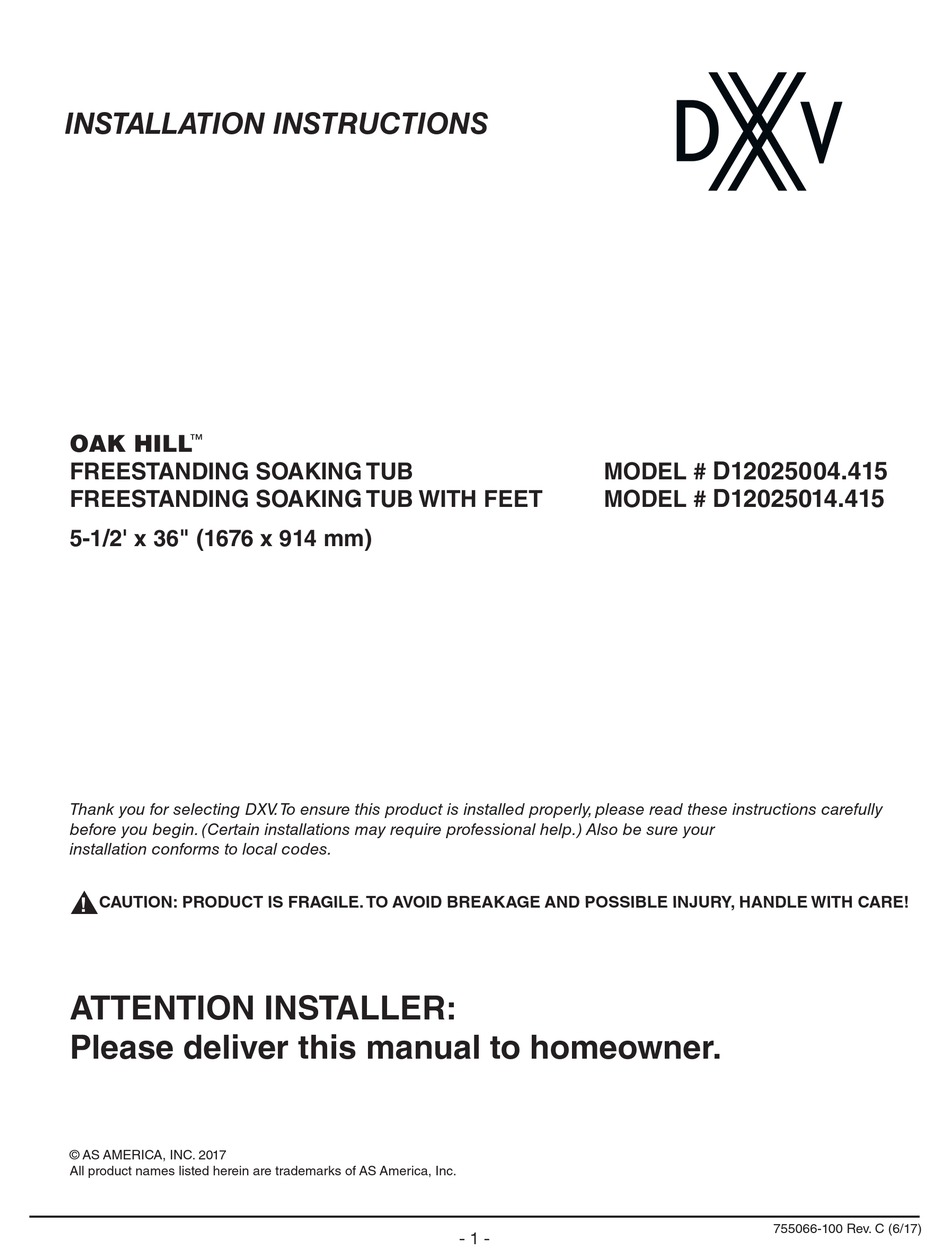

INSTALLATION INSTRUCTIONS
OAK HILL
™

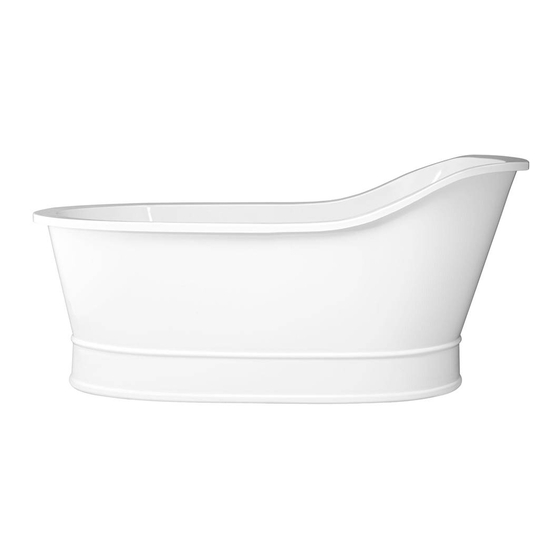

FREESTANDING SOAKING TUB
FREESTANDING SOAKING TUB WITH FEET
5-1/2' x 36" (1676 x 914 mm)
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully
before you begin. (Certain installations may require professional help.) Also be sure your
installation conforms to local codes.
s
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY, HANDLE WITH CARE!
!
ATTENTION INSTALLER:
Please deliver this manual to homeowner.
© AS AMERICA, INC. 2017
All product names listed herein are trademarks of AS America, Inc.
MODEL #
MODEL #
- 1 -
D12025004.415
D12025014.415
755066-100 Rev. C (6/17)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV OAK HILL D12025004.415
Summary of Contents for DXV OAK HILL D12025004.415
-
Page 1: Installation Instructions
MODEL # 5-1/2' x 36" (1676 x 914 mm) Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes. - Page 2 TABLE OF CONTENTS: Cover ....................Page 1 Table of Contents ..................Page 2 Safety Instructions Notice ..............Page 3 General Installation Information ............Page 4 Tub Specifications / Roughing-in References ........Page 5 Installation Instructions ..............Page 6-7 Post Installation Instructions ..............Page 8 755066-100 Rev. C (6/17) - 2 -...
-
Page 3: Important Safety Instructions
If you are or think you may be pregnant, consult your physician before using the bathtub. Use this unit only for its intended use as described in this manual. Do not use any attachments not recommended by DXV. SAVE THESE INSTRUCTIONS 755066-100 Rev. - Page 4 GENERAL INSTALLATION INFORMATION Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor immediately. After inspection and during installation, protect the bath from construction damage. Before installing, the bath must be filled with water to check for leaks that may have resulted from shipping damage or mishandling! Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately.
- Page 5 (1676 x 914 mm) (187 kg./sq. m) For more details, see specification page per model at www.dxv.com The drain outlet is directly under the drain hole in the tub. NOTE: An access panel must be provided to facilitate the connection of the drain to the drain/waste outlet.
- Page 6 FREESTANDING SOAKING TUB GENERAL INFORMATION Rough in dimensions For critical dimensions, we suggest taking the measurements of the actual tub on site. All printed specifications are +/- 1/2 inch (13 mm) and subject to change without notice. An access panel must be provided to facilitate the connection of the drain to the drain/waste outlet. Access must be made through the floor below the tub.
- Page 7 INSTALLING THE 1-1/2" DIAMETER TAIL PIECE ASSEMBLY INTO P-TRAP • The tail piece assembly, consisting of tail piece, drain strainer THREADED PORTION gasket and slip-joint nut is used to connect the tub drain to OF DRAIN ADAPTER TAIL PIECE the drain/waste outlet. See Fig. 4. ASSEMBLY DRAIN STRAINER GASKET •...
- Page 8 Ecatepec, Estado de México 55540 Canada For residents of the United States, warranty Toll Free: 01-800-8391200 information may also be obtained by calling Toll Free: 1-800-387-0369 www.DXV.mx the following toll free number: (800) 227-2734 Local: 905-306-1093 www.DXV.com Fax: 1-800-395-1498 www.DXV.ca 755066-100 Rev.
