DXV Randall D35102840 Installation Instructions Manual

Widespread lavatory faucets
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

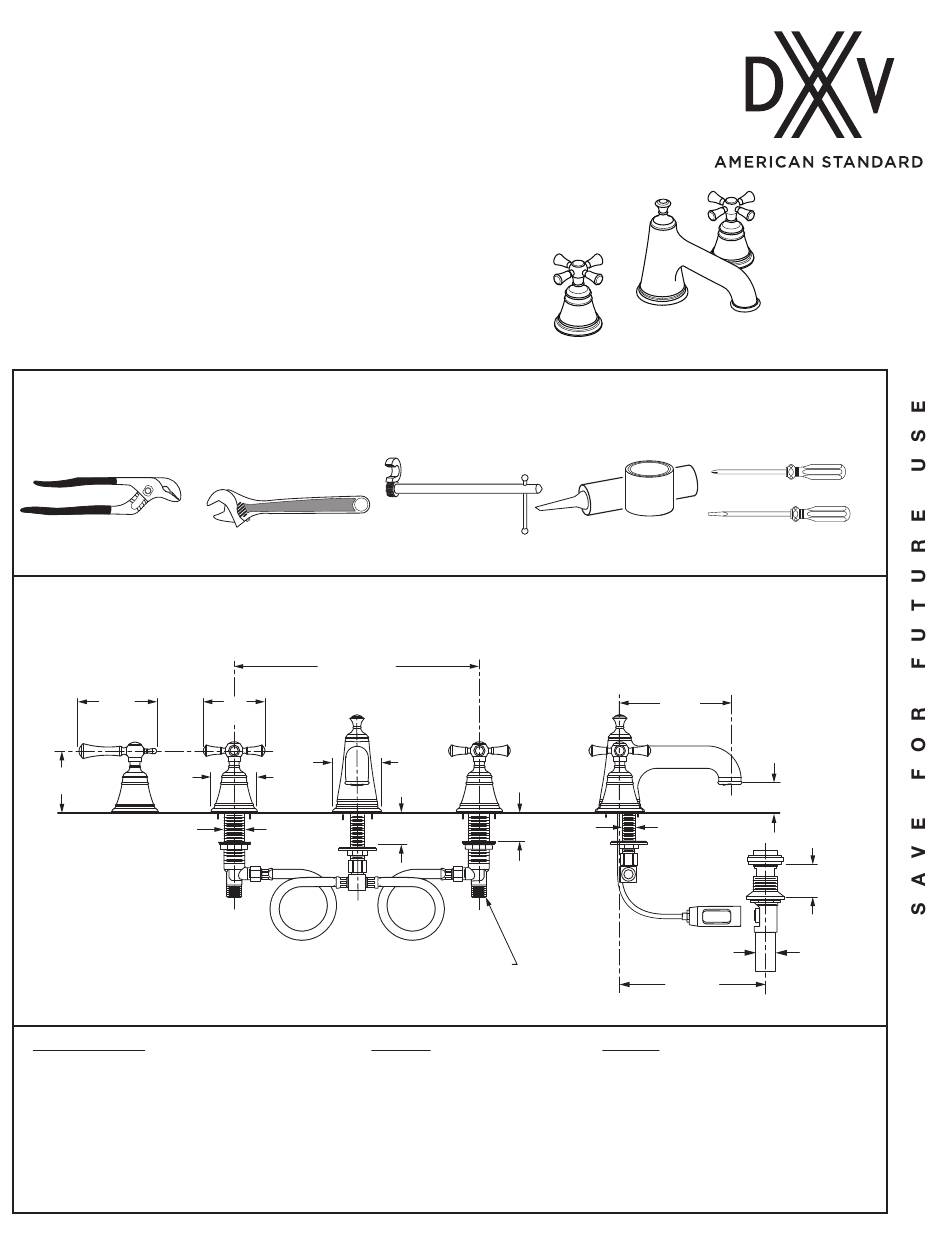

INSTALLATION INSTRUCTIONS
Randall
Widespread Lavatory Faucets
™
Cross Handle
Model D35102840
Lever Handle
Model D35102800
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
ROUGHING-IN DIMENSIONS:
• For reference
LEVER
CROSS
HANDLE
HANDLE
3-3/4"
(96mm)
3-3/4"
(96mm)
1-1/16" DIA.
(29mm)
NOTE: MOUNTING HOLES
ARE 1-3/8" DIA. (35mm)
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Adjustable Wrench
6" - 12" MAX.
(153mm - 305mm)
3"
(76mm)
2-1/4" DIA.
(61mm)
1-1/2" MAX.
(38mm)
CONNECTIONS ARE FOR
1/2" IPS (38mm) FLEXIBLE
SUPPLIES or 3/8" O.D. (10mm)
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
www.DXV.ca
Basin Wrench
Plumbers' Putty or Caulking
2-3/8" DIA.
(61mm)
1-1/4" MAX.
(32mm)
BULL-NOSE RISERS
1-800-395-1498
- 1 -
Phillips Screwdriver
Flat Blade Screwdriver
5-3/8"
(136mm)
1-3/8"
(35mm)
7/8" DIA.
(22mm)
7" MAX.
(178mm)
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965561 Re v. 1 . 3
MAX 2"
(51mm)
1-1/4 O.D.
(32mm)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Randall D35102840 and is the answer not in the manual?

Questions and answers

Related Manuals for DXV Randall D35102840

Summary of Contents for DXV Randall D35102840

  • Page 1 ™ Cross Handle Model D35102840 Lever Handle Model D35102800 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores.

  • Page 2: Spout Assembly

    CAUTION SPOUT ASSEMBLY Turn off hot and cold water supplies before beginning. • Insert SPOUT (1) and CABLE CONNECTOR (2) through center hole, making sure SEAL WASHER (3) is properly seated in SPOUT BASE (4) groove. • Assemble RUBBER WASHER (5), BRASS WASHER (6) and LOCKNUT (7) onto SPOUT SHANK (8) from under side of sink.
  • Page 3 INSTALL POP-UP DRAIN Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). • Remove CARDBOARD SPACER (2) from under DRAIN DRAIN POP-UP (3). BODY • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE FLANGE Fig.
  • Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4" (32mm) O.D. Fig. B. 1-1/4"...
  • Page 5 CONNECT DRAIN • Connect 1-1/4" (32mm) O.D. tailpiece on POP-UP DRAIN to waste outlet. WASTE OUTLET 1-1/4" (32mm) O.D. TAILPIECE TEST INSTALLED FITTING • With HANDLES (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. •...

  • Page 6: Troubleshooting Guide

    Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
  • Page 7 STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Locked Mode: Fig. G. • Look at the Plastic Loop at the bottom of the Stopper and notice that the Loop is on one side of the Stopper.

  • Page 8: Model Numbers

    Randall ™ Widespread Lavatory Faucets MODEL NUMBERS Cross Handle D35102840 Lever Handle D35102800 Replace the "XXX" or "YYY" with appropriate nish code POLISHED CHROME A860682.XXX H960622.XXX BRUSHED NICKEL HANDLE CAP POP-UP KNOB PLATINUM NICKEL M964764-YYY0A POP-UP ROD A860682.XXX HANDLE CAP A860681.XXX LEVER HANDLE A860680.XXX...
