INSTALLATION INSTRUCTIONS
Rapid SL
44" In-Wall Carrier
Model D29050044.000
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES.
ROUGHING-IN
DIMENSIONS:
SUPPLY
AS REQ'D
7-1/16"
(180 mm)
FINISHED
(100 mm)
FLOOR
0" - 7-7/8"
(0 - 200 mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
19-11/16"
(500 mm)
X
12"-16"
(305-407 mm)
4"
4" MIN.
(102 mm)
X=
13"-16-15/16"
(330-430 mm)
5-1/2"
MIN.
(140 mm)
1/2"
NPT
44-1/2"-48-7/16"
(1130-1230 mm)
FINISHED
FLOOR
STUD FRONT
CENTER PIPE
4-1/4"
(108 mm)
- 1 -

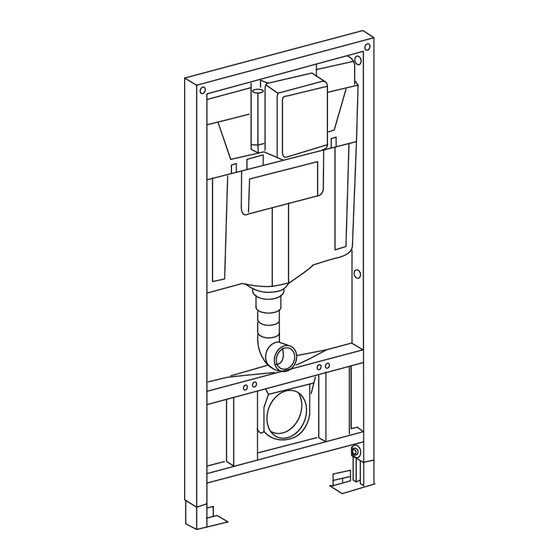

CONCEALED TANK AND CARRIER
The concealed water closet tank and
carrier are adjustable for bowl rim height
15-3/4" to 19-11/16" to be used with an
IAPMO listed 1.6 GPF wall hung bowl.
Requires 1/2" water supply and 3"
nominal outlet.
In compliance with: A 112.6.2
Note that some wall hung toilets are
delivered with their own mounting set
which should be used if possible.
14-3/16"
(361 mm)
5-1/2"
(140 mm)
18-1/2"
(470 mm)
22"
(559 mm)
11-13/16"
(300 mm)
13-3/4"
(350 mm)
7302355-100 (8/17)
FINISHED RIM
HEIGHT (FRM)
FRM = X
PLUS 76
3" (76 mm)
