Table Of Figures - MTI AUTOFRY -40C Operator's Manual

FIGURE 1 – RESET HIGH LIMIT .................................................................................................6
FIGURE 2 – INSTALL LEGS ........................................................................................................7
FIGURE 3A – REMOVE FOOD ENTRY CHUTE .............................................................................7
FIGURE 3B – SEPARATE FOOD ENTRY CHUTE ...........................................................................7
FIGURE 4 – FILTER COVER PLATE .............................................................................................8
FIGURE 5 – FILTERS ................................................................................................................8
FIGURE 6 – OIL POT FLANGE & BRACKET .................................................................................8
FIGURE 7 – DRAIN VALVE CLOSED ...........................................................................................8
FIGURE 8 – HEATER SOCKET & THERMOCOUPLE PLUG ............................................................9
FIGURE 9 – INSTALL HEATER BOX ............................................................................................9
FIGURE 10 – OIL POT FILL LINES ..............................................................................................9
FIGURE 11 – INSTALL FOOD EXIT CHUTE ................................................................................ 10
FIGURE 12A – BASKET ROD & CAM ....................................................................................... 10
FIGURE 12B – BASKET ROD & RECEIVER CLIP ......................................................................... 10
FIGURE 13 – BASKETS AT READY POSITION & SPLASH GUARD ............................................... 10
FIGURE 14A – REMOVEABLE COVER ...................................................................................... 22
FIGURE 14B – FIRE DAMPER ................................................................................................. 22
MTI-40C
9600 Watts, 1 Phase
40 Amps

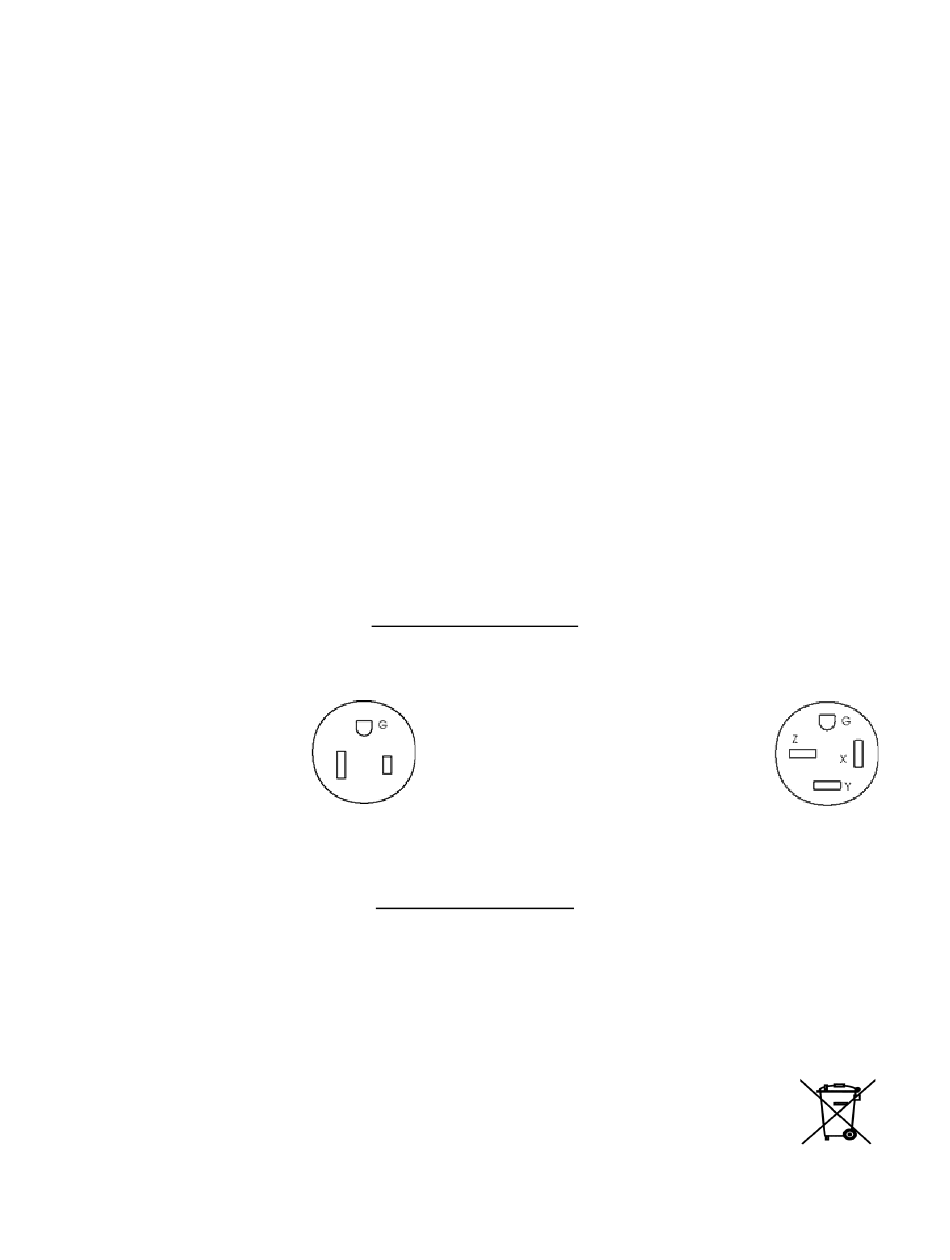

NEMA 6-50 Plug
with 6FT cord
UL, cUL, CE & NSF
Dimensions: Length = 36" x Width = 25" x Height = 32.50" (with 4" legs)
Shipping Dimensions: 32" x 40" x 36" - Shipping Weight: 310 lbs.
Motion Technology, Inc. supports the European Parliament Directive 2002/96/EC for recycling of waste electrical
and electronic equipment (WEEE).
When your AUTOFRY has reached the end of its life DO NOT DISPOSE OF IT IN THE MUNICIPAL WASTE.
Most of the materials used in its construction can be recycled. Return to your distributor for preparation and recycling.
63-0128 MTI-40C TS OM 11/23
MTI-40C Operator's Manual

TABLE OF FIGURES

Electrical Specifications:
240 ACV Dedicated Grounded Circuit
Dedicated 50 AMP Grounded Circuit
Physical Specifications:
Clearances: Sides & Back = 0" – Top = 24" Minimum
Weight: 285 lbs.
Materials: 304 Stainless Steel
AutoFry
MTI-40C 3 Phase
12000 Watts, 3 Phase
28.9 Amps
NEMA 15-50 Plug
with 6FT Cord
UL, cUL, CE & NSF
