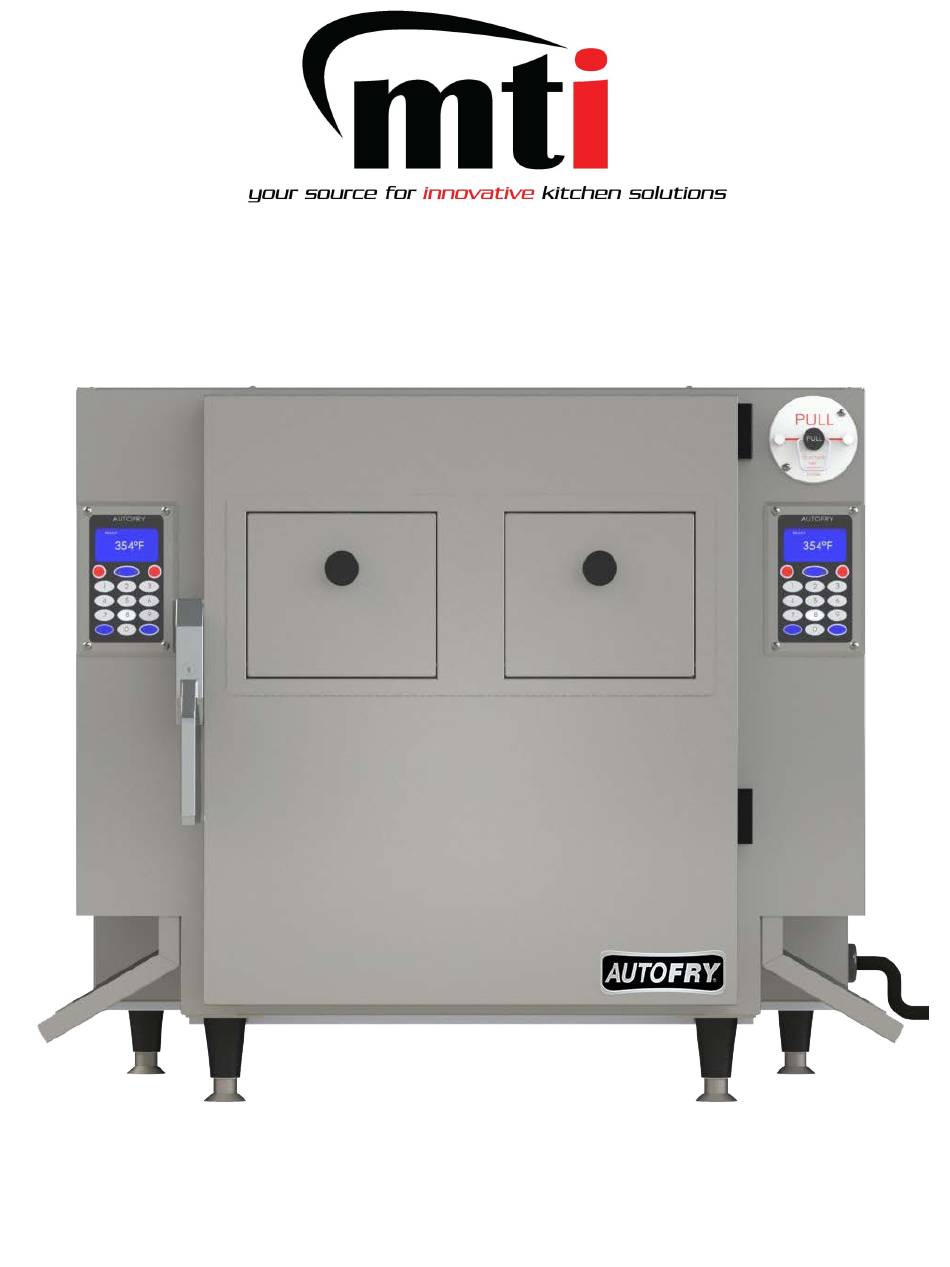

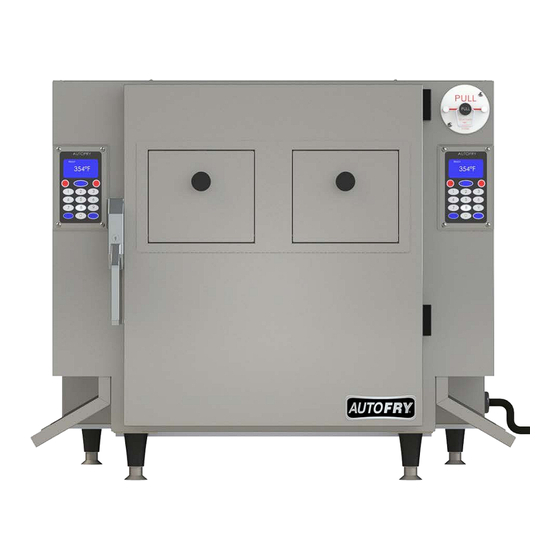

  • Page 1 AUTOFRY Operator’s Manual Model MTI-40C E167654...
  • Page 2 AUTOFRY A Patented Product of Motion Technology, Inc. 10 Forbes Road Northborough, MA. 01532 Tel.: 800-348-2976 508-460-9800 Fax: 508-393-5750 E167654...

  • Page 3: Table Of Contents

    COOKING OIL DISPOSAL ....................... 21 QUESTIONS & ANSWERS ....................22 – 23 ERROR CODES & TROUBLESHOOTING GUIDE ..............24 – 27 MAINTENANCE LOG ..................... 28 – 30 WIRING DIAGRAM ................BACK PANEL OF AUTOFRY MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 4: Table Of Figures

    When your AUTOFRY has reached the end of its life DO NOT DISPOSE OF IT IN THE MUNICIPAL WASTE. Most of the materials used in its construction can be recycled. Return to your distributor for preparation and recycling. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 5: Warranty Information

    These warranties are in lieu of all other warranties, by MTI to sell its equipment and it is not expressed or implied, including, but not limited to transferable.

  • Page 6: General Information

    This appliance is not for continuous mass production of food. • This appliance is not to be cleaned with jet water or steam. • No water should come in contact with the cooking oil. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 7: Prepare Electrical Service

    Choose a counter top location that is sturdy, level, easily cleanable and fire resistant. Stainless steel, fire resistant laminate or solid surface materials are acceptable. Never use a porous material to prepare food as bacterial contamination could result. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 8: Autofry Installation

    *Check the red high limit reset button on the bottom of each heater box assembly by fully depressing it with the eraser end of a pencil. If the switch has been tripped you will hear a click. Figure 1. High Limit Reset Button Figure 1 MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 9: Leg Installation

    Separate the two-piece food entry chute and wash in warm soapy water followed by a clear water rinse. Figure 3B. Sanitize the parts. • All parts must be sanitized. • Reassemble and reinstall the clean, dry parts. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 10: Install Charcoal Filter

    AutoFry. Be sure the oil pot flange slips over the bracket on the floor of the cooking chamber. Figure 6. • Ensure that the drain valves are in the closed position. Figure 7. Figure 6 Figure 7 MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 11: Install Heater Box Assembly

    Extreme low oil levels could cause smoking. Older or degraded oil has a reduced flash & smoke point. Follow the oil manufacturers recommendations for oil use. NEVER operate the AutoFry with low or no oil! Figure 10 MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 12: Install Exit Chutes / Teflon Cook Baskets

    Power. • Close and lock the main door. Figure 13 • Plug the AutoFry into the properly rated, grounded outlet. You are now ready to start cooking! MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 13: Starting The Autofry

    354°F. Although the heating element is programmed to stop at 350° - 354°F, the oil temperature can go as high as 365°F due to the circulation of the oil in the oil pot. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 14: Begin Cooking

    The food chute should only be will show READY and 4 quick beeps will signal the opened when the display shows AutoFry is ready for the next order. READY; or when the timer is still counting down. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 15: Autofry Shut Off

    The oil will remain hot for a long period. To assure continuous air cleaning, the exhaust fan will run for 2 hours or until the oil temperature falls below 192°F. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 16: The Standby Button

    CLEAN MODE will be displayed; the basket will raise to the dispense position and hold there. To Exit: • Press and hold the STANDBY button for 5 seconds. • The basket will return to the ready position and the AutoFry will turn off. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 17: Programming Cook Times

    Press 3 to edit comp. :15 or :30 seconds. • Press any digit to change the value from Yes • Press START to save the changes. to No. • Press START to save the changes. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 18: Temp Compensation / Shake Feature / Counters

    Access the count feature from the System Programming screen by pressing 2. To reset the count press CLEAR. All Cycles and All Hours cannot be cleared. To exit the count screen press POWER until the display turns off. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 19: Melt / Boil Out Parameters

    With the AutoFry turned off press and release the START button, then within two seconds press the POWER button. To Cancel: Press CLEAR Boil Out Parameters: 5. Boil Temp. 195°F (adjustable from 190 – 212°F) 6. Boil Time 15:00 (adjustable from 5:00 – 25:00 minutes) MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 20: Recommended Cleaning Schedule

    Figure 8. Figure 8 Sanitize all parts and interior surfaces. Polish the exterior surfaces using AutoFry shine stainless steel polish and a soft cloth. Replace the clean dry components and add liquid shortening as needed. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 21: Weekly Cleaning

    TO THE CIRCUIT BOARD OR INJURY COULD OCCUR. Remove filters and clean the entire interior to bare metal. Reinstall the clean dry stack cover / fire damper. Replace the filters. Figure 14B Visit www.AutoFryWebStore.com to reorder filters! MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 22: Charcoal Filter

    The fusible links and s-hooks located in the cook chamber and exhaust stack must be replaced semi- annually. WHEN REPLACING FUSIBLE LINKS, YOU MUST USE THE SAME RATED LINKS OR THE FIRE SUPPRESSION SYSTEM MAY NOT WORK AS DESIGNED! COOKING CHAMBER: 280°K Fusible Link FIRE DAMPER: 212°B Fusible Link MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 23: Safety System Test

    Included with this manual is a maintenance log to be signed and dated after the completion of daily, weekly and quarterly maintenance and testing. Your local or state health and safety inspectors may require this log to be posted in a noticeable location. MTI-40C OM 04/17 Rev C 63-0008C...

  • Page 24: Questions & Answers

    Are you overfilling the food entry chute? • Are you entering a second order before the first order has dispensed? • Although the AutoFry is fully enclosed it is a deep fryer and splashing of oil is normal. MTI-40C OM 04/17 Rev C 63-0008C...
  • Page 25 Our Service Technicians will always attempt to correct the problem over the phone. If this is not possible, a service company in your area will be contacted and dispatched to your location. UNAUTHORIZED SERVICE ON THE AUTOFRY MAY VOID THE WARRANTY! MTI-40C OM 04/17 Rev C 63-0008C...
