Table Of Figures; Specifications - MTI AUTOFRY -40E Operator's Manual

FIGURE 1A – FOOD ENTRY CHUTE ...........................................................................................6
FIGURE 1B – REMOVING FOOD ENTRY CHUTE .........................................................................6
FIGURE 2 – FILTER COVER PLATE .............................................................................................7
FIGURE 3 – FILTERS INSTALLED ...............................................................................................7
FIGURE 4 – DRAIN VALVES CLOSED .........................................................................................7
FIGURE 5 – COLD FILL / HOT FILL LINES ...................................................................................7
FIGURE 6 – ELEMENT COVER PLATES .......................................................................................8
FIGURE 7A – BASKET ROD & CAM ...........................................................................................8
FIGURE 7B – BASKET ROD & RECEIVER CLIP .............................................................................8
FIGURE 8 – COMPLETED BASKET INSTALLATION ......................................................................8
FIGURE 9 – FUSIBLE LINK & CABLE ........................................................................................ 19
FIGURE 10A – REMOVABLE STACK COVER & FIRE DAMPER .................................................... 20
FIGURE 10B – FAN SECTION .................................................................................................. 20
FIGURE 11 – CHANGING THE CHARCOAL ............................................................................... 21
MTI-40E
12000 Watts, 1 Phase
50 Amps
Hardwire Only
No plug supplied
Dedicated 60 AMP Grounded Circuit
UL, cUL, CE & NSF
Dimensions: Length = 36" x Width = 33" x Height = 64"
Shipping Dimensions: 40" x 42" x 70" - Shipping Weight: 560 lbs.
Motion Technology, Inc. supports the European Parliament Directive 2002/96/EC for recycling of waste electrical
and electronic equipment (WEEE).
When your AUTOFRY has reached the end of its life DO NOT DISPOSE OF IT IN THE MUNICIPAL WASTE.
Most of the materials used in its construction can be recycled. Return to your distributor for preparation and recycling.
63-0130 MTI-40E TS OM 01/24
MTI-40E Operator's Manual

TABLE OF FIGURES

Electrical Specifications:
240 ACV Dedicated Grounded Circuit
Physical Specifications:
Clearances: Sides & Back = 0" – Top = 24" Minimum
Weight: 400 lbs.
Materials: 304 Stainless Steel
AutoFry
MTI-40E 3 Phase
12000 Watts, 3 Phase
28.9 Amps

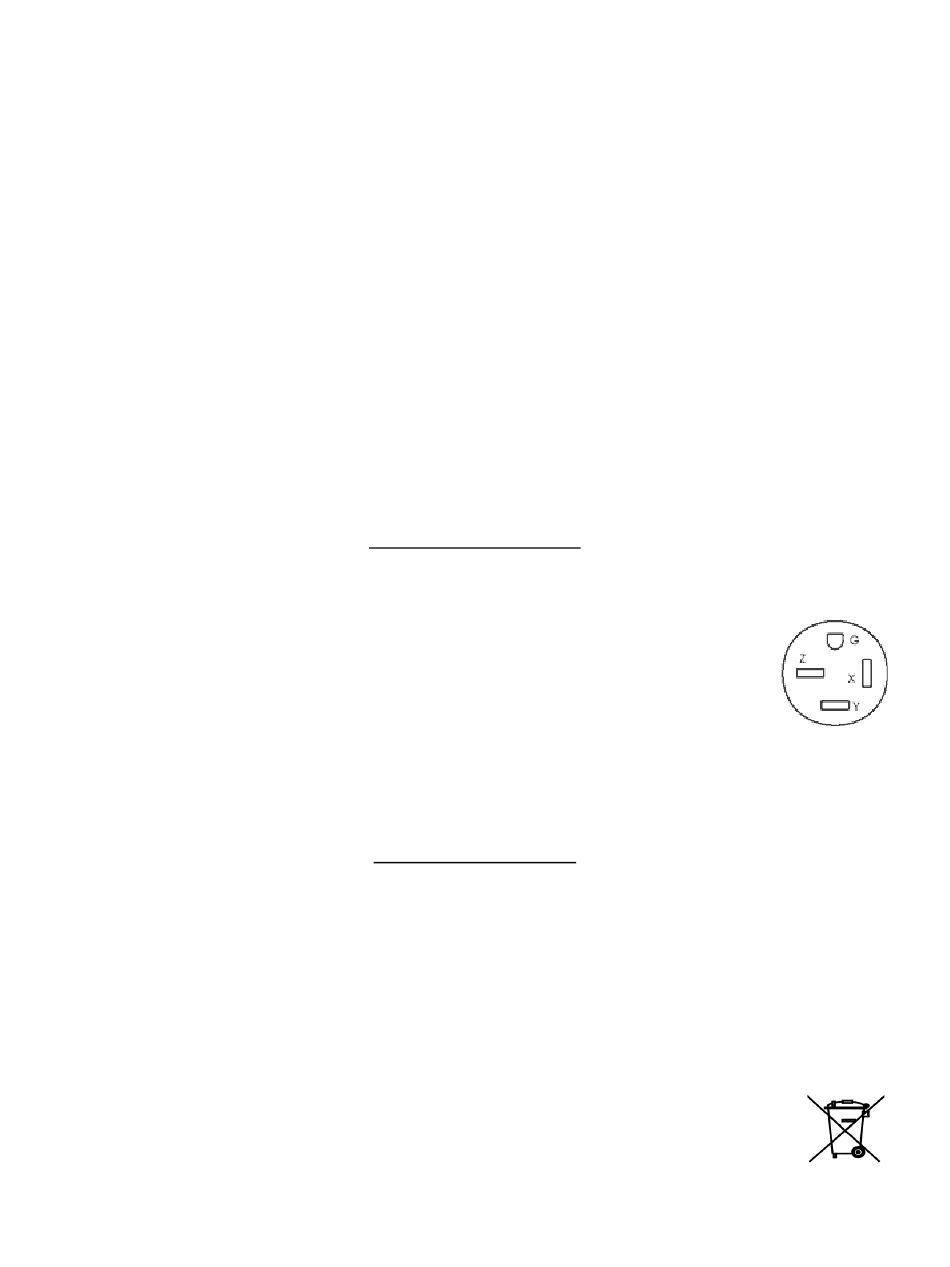

NEMA 15-50 Plug
w/ 6FT Cord
UL, cUL, CE & NSF
2
