Test setup
AVS: 15.0 V-28.0 V 140 W
•
Choose a suitable pre-configured PDO or configure a new one using the EZ-PD™ Configuration Utility.

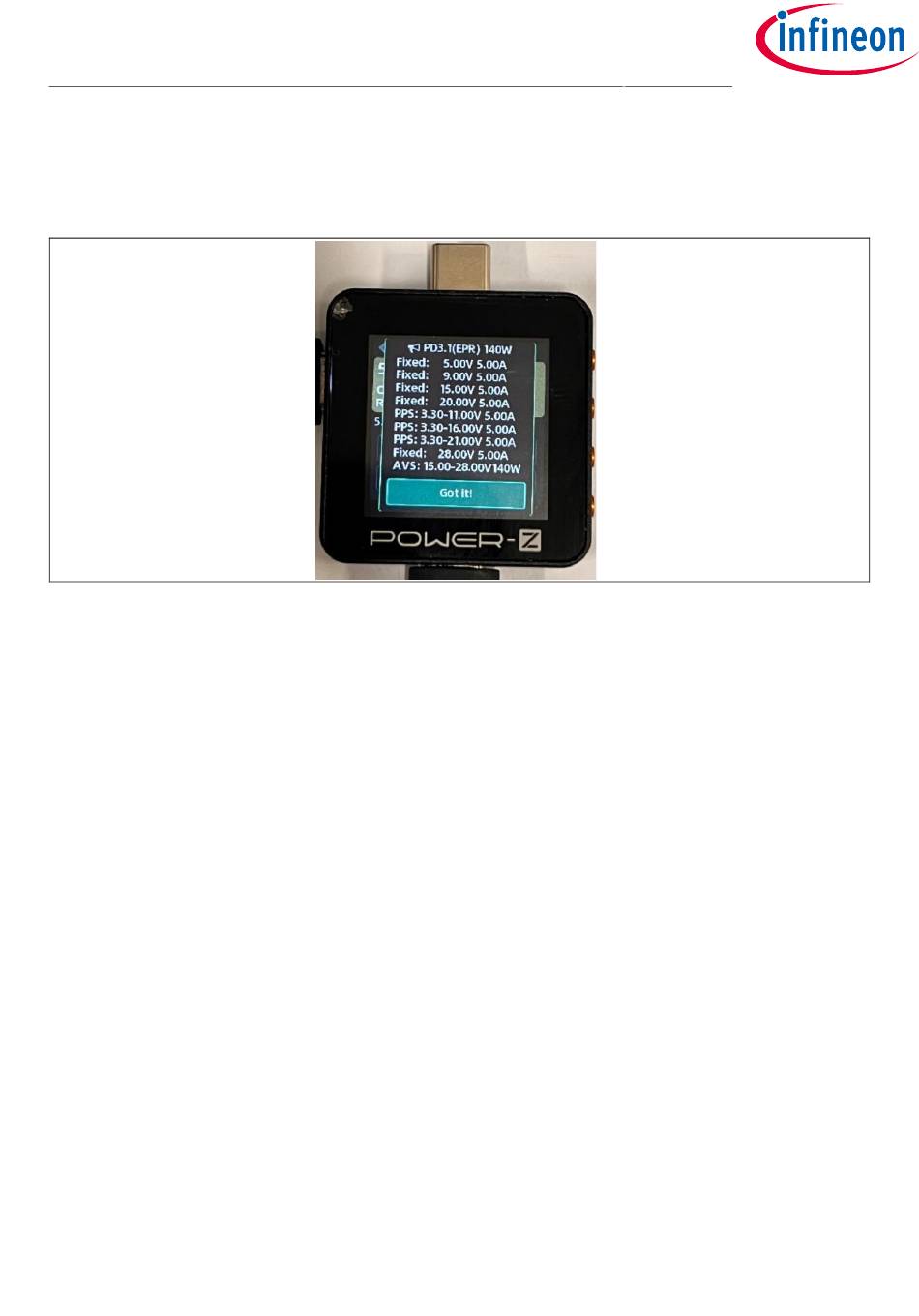

Figure 10 USB-C PD POWER-Z tester
