Procedure to program EZ-PD™ CYPAS213-based board
4 Procedure to program EZ-PD™ CYPAS213-based board
EZ-PD™ PAG2S supports the PSoC™ MiniProg4 (CY8CKIT-005) as a programmer to program the EZ-PD™
controllers. The EZ-PD™ CYPAS213-based main board can be programmed using a PSoC™ MiniProg4 five-pin
connection.

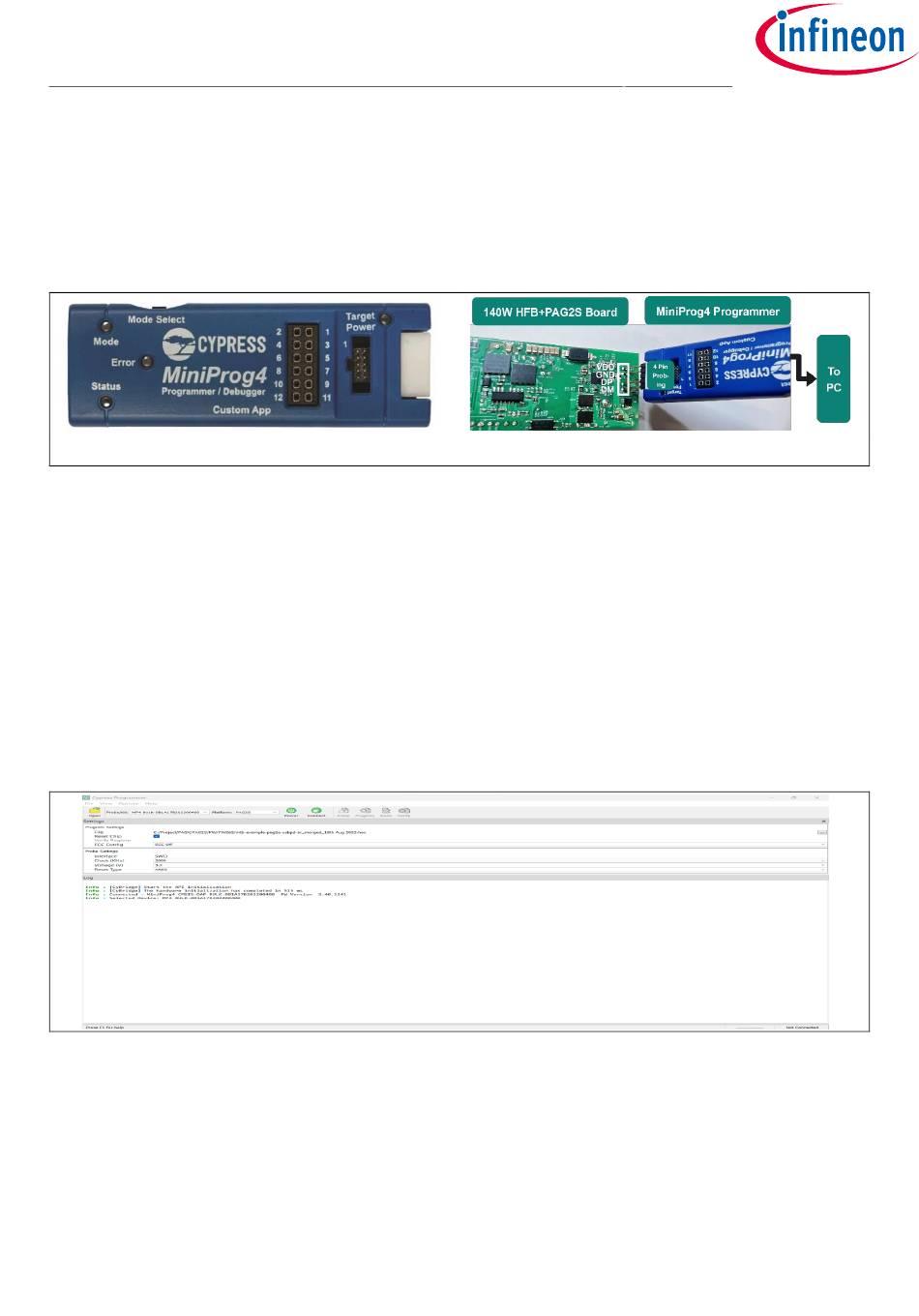

Figure 4 (A) PSoC™ MiniProg4 (CY8CKIT-005) Programmer Kit and (B) Programmer Kit connection with
provision jumper
4.1

Programming interface and settings

There are two ways to program the firmware file on an EZ-PD™ CYPAS213-based main board:
1. Using the CY8CKIT-005 MiniProg4 Program and Debug Kit
2. Using the CY4532 EZ-PD™ Program and Evaluation Kit
4.1.1

Using the CY8CKIT-005 MiniProg4 Program and Debug Kit

Prior to starting CYPAS213 firmware burning, a provision jumper connection between the Programmer Kit and
CYPAS213 IC pin signals (VDDD, GND, DP, and DM) is required, as shown in
Figure 5 Programming interface to program EZ-PD™ PAG2S
1. On the programmer window, click Open to select the firmware (.hex) file from the folder as shown in
Figure 5.
2. Select the PAG2S option from the drop-down for Platform.
3. Click Power to power the programmer cable.
If successful, it is indicated at the bottom right of the window as "Powered".
4. Click Connect after you see "Powered".
User guide
(A)
Figure 4(B).
11
(B)
