140 W HFB+PAG2S Solution Board (REF_140W_HFB_PAG2S) user
guide
Procedure to program EZ-PD™ CYPAS213-based board
After successful toggling between the PAG2S IC and programmer, the "Connected" message is shown at the
bottom right of the window.
5. Click Program after you see the "Connected" message.
If the program is successful, a "Successfully programmed" message is shown at the bottom of the window.
The second way to program the CYPAS213 IC firmware is shown in the next section.
4.1.2 Using the CY4532 EZ-PD™ Program and Evaluation Kit
CYPAS213 supports another method for firmware programming that uses the
CY4532 EZ-PD™ Program and Evaluation
programming CY4532 kit is to be connected to the CYPAS213-based board via a USB Type-C connector, and a
+5 V is to be supplied to VBUS_IN at the CYPAS213-based board. The procedures for programming are:
1. In the EZ-PD™ Configuration Utility programmer window, click the firmware update icon, as shown in
Figure 6(B).
2. In the Firmware Update pop-up window, click ... to select the firmware file for Firmware path, as shown in
Figure 6(C).
3. Click UFP-Unknown to connect to the CYPAS213-based board.
If toggling between CYPAS213 and the Programmer Kit is successful, the "DR Swap Successful" message is
shown at the bottom left of the window.
4. Click Program to start the firmware file update.
(A)

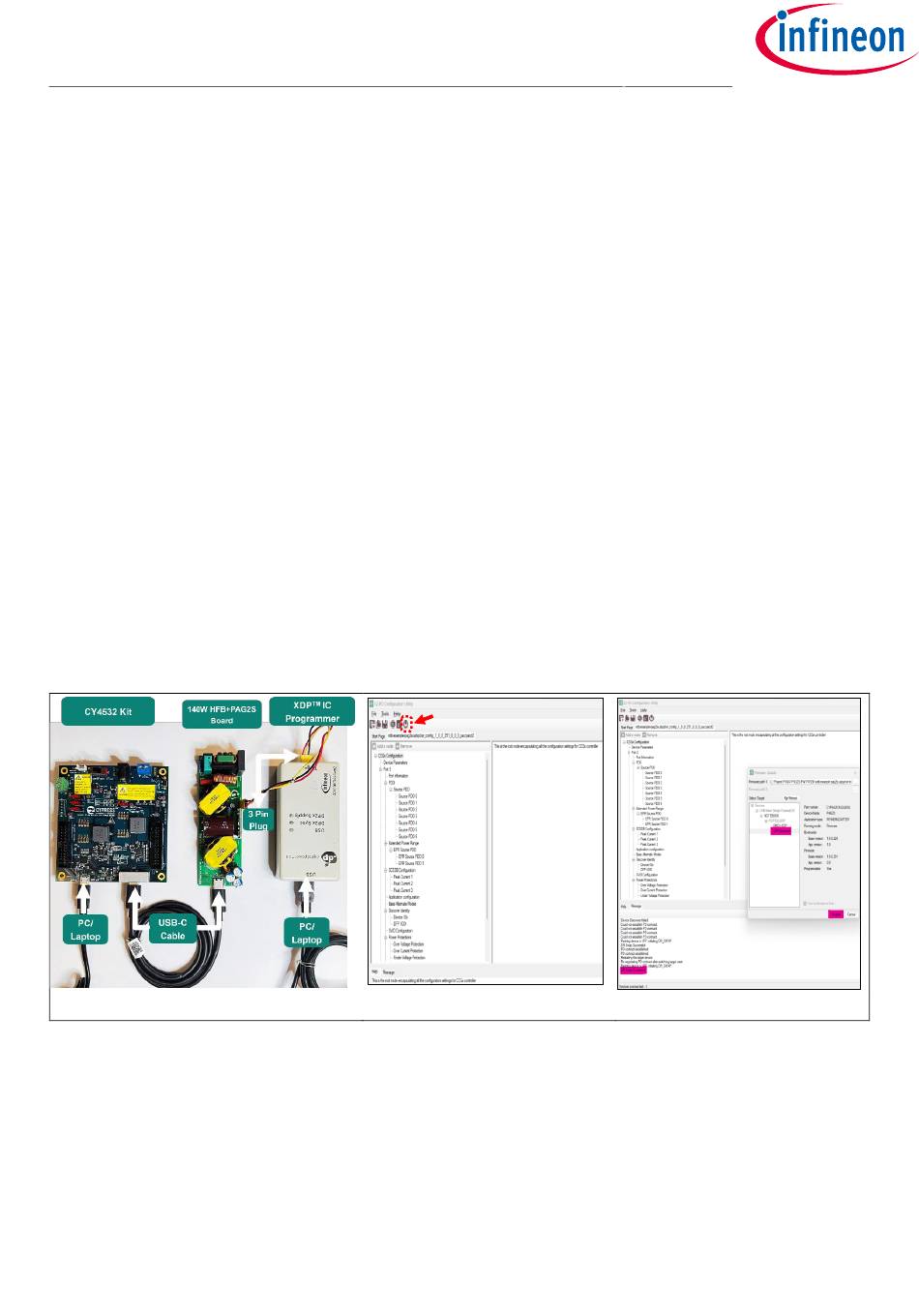

Figure 6 CYPAS213 programming using (A) CY4532 EZ-PD™ Program Kit (left side kit) via USB Type-C
connector and XDP™ IC .dP vision programming interface (right side kit), (B) EZ-PD™
Configuration Utility, and (C) Programming file selection and Program window
User guide
Kit, as shown in Figure 6. The proceed CYPAS213 firmware
Firmware update
(B)
12
(C)
