E3860F & E3865F
DOMINATOR
USERS INSTRUCTIONS
SECTION 1 - GENERAL DESCRIPTION
SECTION 2 - LIGHTING and OPERATION
SECTION 3 – CLEANING AND MAINTENANCE
SECTION 4 – SPARE PARTS
This appliance has been UKCA/CE marked based on compliance with the relevant Electrical and
Electromagnetic Compatibility (EMC) Regulations/Directives for the voltages stated on the data plate.
The appliance MUST BE installed by a competent person in compliance with the INSTALLATION AND
SERVICING INSTRUCTIONS and National Regulations in force at the time.
UK regulations are listed on the front of the Installation and Servicing Instructions.
PREVENTATIVE MAINTENANCE CONTRACT
To obtain maximum performance from this unit regular servicing of the appliance should be undertaken to ensure
correct operation, it is functioning as intended, and safe to use. We recommend servicing in accordance with SFG20
Maintenance Schedules and as a minimum, after 2,500 hours of use, or annually, whichever comes
maintenance contract be arranged with an appointed service contact. Visits may then be made at agreed intervals to
carry out adjustments and repairs.
WARNING - THE APPLIANCE MUST BE EARTHED
Upon receipt of the User's Instruction manual, the installer should instruct the responsible person(s)
of the correct operation and maintenance of the unit.
This equipment is ONLY FOR PROFESSIONAL USE and shall be operated by QUALIFIED persons.
It is the responsibility of the Supervisor or equivalent to ensure that users wear SUITABLE
PROTECTIVE CLOTHING and to draw attention to the fact that, some parts will, by necessity, become
VERY HOT and will cause burns if touched accidentally.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of unit life, dispose of appliance and any replacement
parts in a safe manner, via a licenced waste handler.
Units are designed to be dismantled easily and recycling of all
material is encouraged whenever practicable.
Falcon Foodservice Equipment
HEAD OFFICE AND WORKS
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
SERVICELINE CONTACT
Phone: 01438 363 000
PLUS
Fax: 01438 369 900
Fryers
first and
that a
T100981 Ref. 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the DOMINATOR PLUS E3860F and is the answer not in the manual?

Questions and answers

Related Manuals for Falcon DOMINATOR PLUS E3860F

Summary of Contents for Falcon DOMINATOR PLUS E3860F

  • Page 1 Units are designed to be dismantled easily and recycling of all material is encouraged whenever practicable. Falcon Foodservice Equipment T100981 Ref. 7 HEAD OFFICE AND WORKS Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.

  • Page 2: Section 1 - General Description

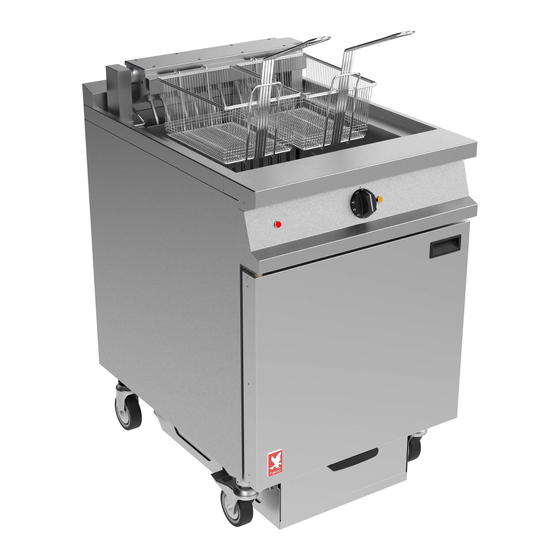

    SECTION 1 - GENERAL DESCRIPTION The E3860F & E3865F are medium duty, free-standing, fryers. The E3860F is 600mm wide with 1 pan which accommodates 2 baskets. The unit is thermostatically controlled. The E3865F is 600mm wide with 2 pans, each pan accommodates 1 basket. The unit is thermostatically controlled.

  • Page 3: Section 2 - Lighting And Operation

    SECTION 2 - LIGHTING and OPERATION Controls The thermostat control knobs and indicator lamps are mounted on the fascia panel. The mains indicator lamp (red) will become lit when power is supplied to unit. The thermostat indicator lamp(s) (amber) lights only when heating elements are being supplied with current. It will go out when oil has reached selected temperature.
  • Page 4 Warning Attention is drawn to following safety related points:- NEVER, under any circumstances, switch unit on unless it is filled with oil or water. Before draining pan or raising elements for cleaning, the appliance MUST be isolated at the mains switch.

  • Page 5: Section 3 - Cleaning And Maintenance

    SECTION 3 - CLEANING and MAINTENANCE Daily Cleaning/Filtering Turn burner and temperature controls On/Off switch to OFF position and allow the oil to cool. Open cabinet door. Ensure the strainer and micro filter are clean. Ensure oil container is located under the fryer. Open drain valve and filter oil through the strainer into the oil container.

  • Page 6: Important Note

    9. Drain water from pan as item 2. 10. Rinse pan with clean water and dry thoroughly. Elements can be hinged upward to gain access to wipe pan. When elements are fully raised, a support latch will secure them in position. Also ensure drain valve is dried thoroughly before use.
