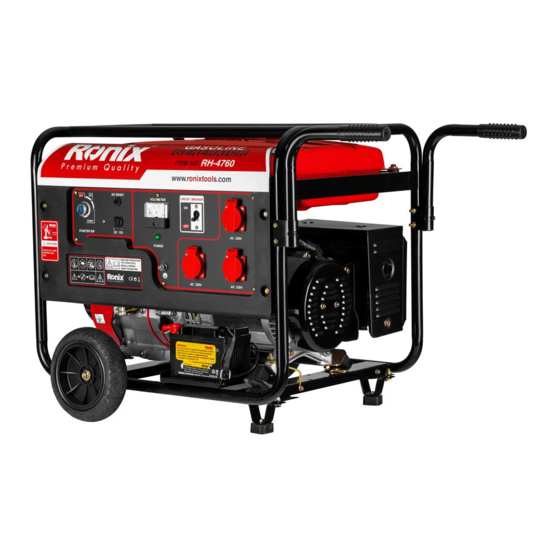

- Page 1 6000W GASOLINE GENERATOR RH-4760...
-
Page 2: Technical Specification
TECHNICAL SPECIFICATION Model RH-4760 Power 6000W Voltage 220V Frequency 50Htz DC Output 12V-8A Fuel Capacity 25Liter Cylinder Capacity 389cc Noise <75 DB Weight 85kg Full Load Continuous Working 8.5 Hours 1/2 Load Continuous Working 12.7 Hours PARTS LIST Voltage Meter... -
Page 3: Residual Risks
INTENDED USE / NOT INTENDED USE The machines are portable generators with a four -stroke gasoline engine, with AC 50Hz / 60Hz and 12V DC output for domestic use. The gasoline generator set is suitable for temporary power supply. It may only be operated in a well-ventilated area. The product is intended for household use in accordance with the instructions, all other applications, such as commercial exploitation, are specifically excluded. -
Page 4: Other Safety Tips
SAFETY TIPS - Never operate the generator in door or in a poor-ventilated area. - Do not operate the generator under wet climate (rain, snow). - Never connect to house power circuit if commercial power supply is not cut. - Keep at least 1 m (3ft) away from inflammables. - Do not smoking when fueling. - Page 5 GENERATOR SET ADDING OIL GUIDE - Access hatch closed - Unclip the access hatch - Open the door 6000W GASOLINE GENERATOR...
- Page 6 - Remove the hatch - Release the drain plug - Add oil through funnel - Tighten the drain plug - Close the door USER MANUAL...
- Page 7 FUEL - Open the fuel tank cap. - Check the fuel level and refuel if necessary. - Refuel up to the shoulder of the fuel filter 6000W GASOLINE GENERATOR...
- Page 8 - Reinstall the fuel tank cap. AIR CLEANER - Loosen the clip and remove the air cleaner housing. - Separate the primary and secondary element. - Wash STARTING THE GENERATOR - Remove all the loads from AC socket and switch off the BREAKER. USER MANUAL...
- Page 9 - Set the fuel cock to “ON” position. - Push the choke lever to “CLOSE’ position. - Turn the engine switch to “ON” position. - Pull the starter handle until resistance is felt, then pull it out swiftly from original position. - Once the generator dads, 4-6 gradually turn the chock lever to “ON”...
-
Page 10: Electric Connecting
ELECTRIC CONNECTING To keep the generator in the best running and electric condition, please obey the follows: 1. Ground the generator to prevent electric shock: 2. Refer some appliance for electric consumption: Waltage Sample Type Appliance Rated Starting Appliance Starting Rated Electric Electric bulb... - Page 11 AC ELECTRIC CONNECTING - Starting the generator. - Connecting the appliances. - Turn on the BREAKER or push down the Ac protector. 6000W GASOLINE GENERATOR...
- Page 12 DC APPLICATION The DC terminal may be used for charging 12V automotive-type batteries only. - When using automotive-type batteries with battery cables, be sure to disconnect the minus pole battery cable from the battery before charging. - Connect the charging cable to the battery terminals and the DC terminal of generator.
- Page 13 OPPING THE GENERATOR 1. Turn off the Breaker. 2. Turn off the engine switch. 3. Turn off the fuel cock. NOTE: In emergency, turn the engine switch to -OFF to stop the generator. WARNING! Never stopping the generator at high speed under heavy load, otherwise, the damage will result.
-
Page 14: Regular Inspection And Maintenance
REGULAR INSPECTION AND MAINTENANCE Daily and regular inspection is important to assure safe, proper and long-term operation of the generator. Refer to the regular inspection table when conducting inspection and maintenance. Inspection Replace Cleaning Adjustment 50hrs or 100hrs or 300hrs Daily 20hrs or every 3... -
Page 15: Engine Oil Replacement
ENGINE OIL REPLACEMENT 1. Loosen the of drain plug crankshaft. 2. Drain off the engine oil in the dipstick. 3. Screw in and tighten the drain with seal washer. 4. Filing the engine of to the upper plug level. 5. Reinstall the dipstick NOTE: Recommended Engine oil 4-stroke gasoline engine oil SF, SF from API Service Classification... -
Page 16: Fuel Cock Cleaning
3. Clean away carbon sediment. 4. Measure the electrodes clearance. 0.7-0.8mm 5. Reinstall the spark plug and cap. FUEL COCK CLEANING 1. Set the fuel cock to “OFF” position, and dismantle the filter cup. Dismantle the fuel filter. 2. Clean the fuel filter with air blow from inside. 3. -
Page 17: Troubleshooting
TROUBLESHOOTING 1. Starting failure - Is the engine switch at “ON” position? - Is the oil level too low? - Is there enough the fuel? - Check the spark plug. 2. Appliance do not work - Check the appliance device. - Is the BREAKER at “ON”...
