PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Note:
04943 tail must be use for RPA disable.
Normally open (N/O) read Switch Tail must BE used to disable RPA.
7 pin solution Part No. 04943
12 pin solution with easy fit 90 Degree wiring exist from plug – Part No. 04959 (Socket 12PIN 90 DEG 1200RPA N/O-HR PWR)
CENTRE RECOVERY HOOK
CENTRE RECOVERY POINT LOADING MUST NOT EXCEED 8000kg.
DESIGNED FOR USE WITH A SNATCH STRAP NOT EXCEEDING 8000kg
MBS (MINIMUM BRAKING STRENGTH).
SIDE RECOVERY HOOK (SINGLE)
SIDE RECOVERY POINT LOADING MUST NOT EXCEED 4000kg MBS
(MINIMUM BRAKING STRENGTH).
Hayman Reese (Cequent)
PO Box 4050, Dandenong South VIC 3164
Phone 1800 812 017 Email info@haymanreese.com.au
Rev:
A
03364XW
Maximum Towing Braked:
04835
Maximum Towing Unbraked:
1800 mm
Maximum Static Ball Load:
21366
102462-WL
70 Mins.
Hayman Reese SmartCODE Solution Required:
20 Mins.
RPA Disable/Other:
Bumper Cut Required:
90 Mins.
Page

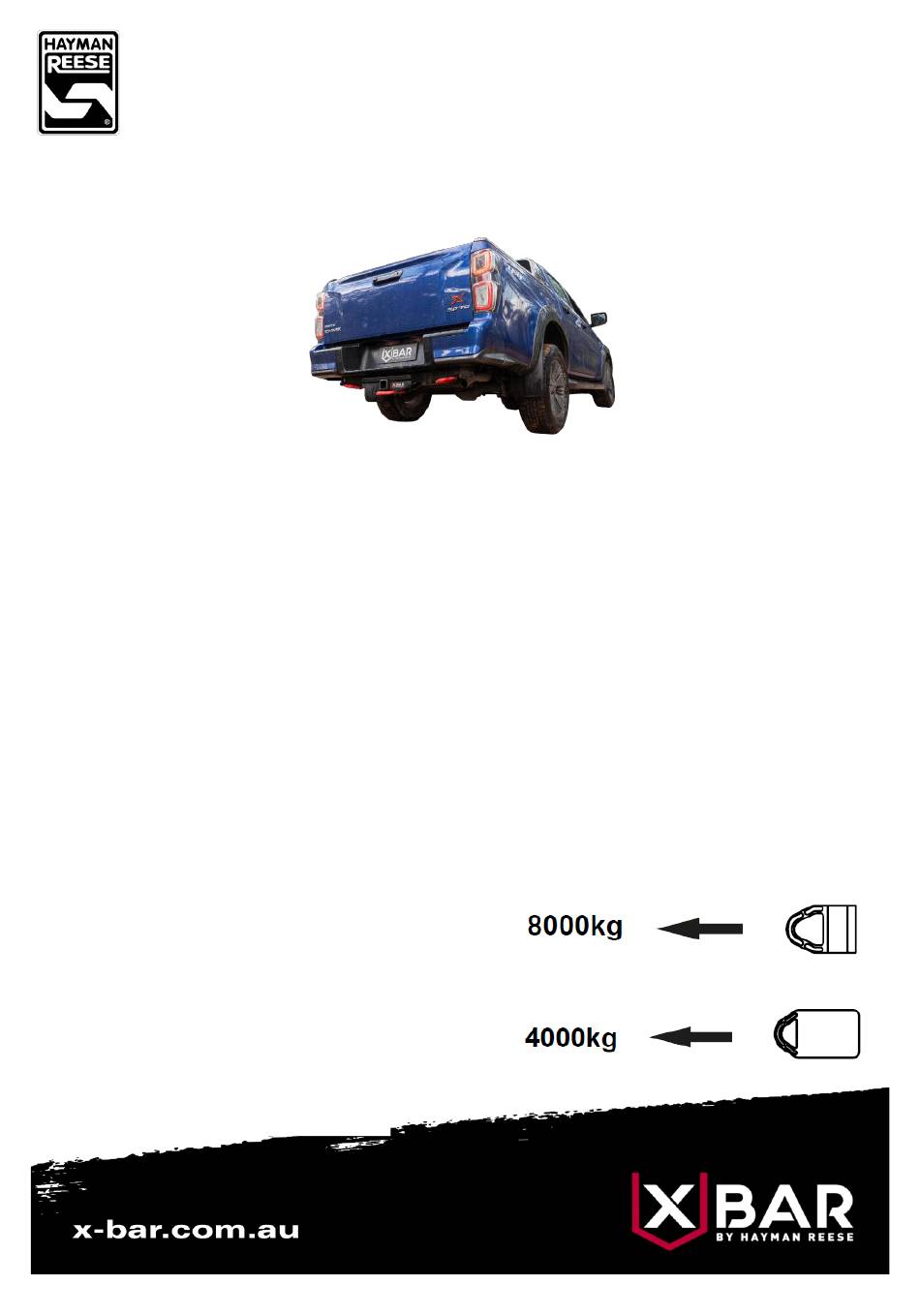

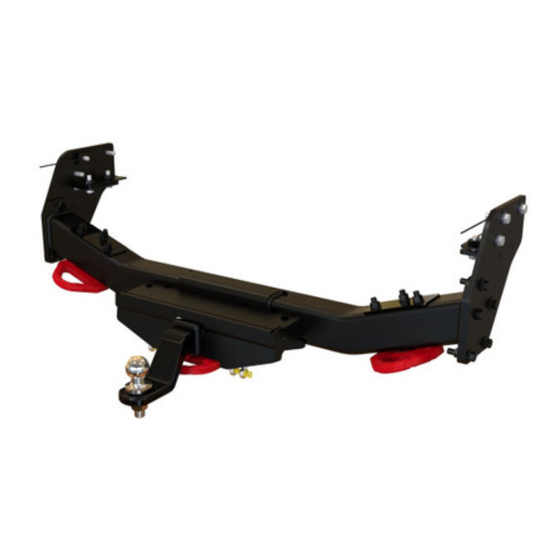

INSTALLATION INSTRUCTIONS
PART NUMBER
ISUZU D-MAX TF / MAZDA BT50 UTE X-BAR
1
TOWBAR
03364XW
3500
kg
750
kg
350
kg
NO
YES
No
Issue Date:
03-02-2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03364XW
Summary of Contents for Hayman Reese 03364XW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21366 Wiring Part Number: 102462-WL FITTING DETAILS: Towbar Installation Time: 70 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 20 Mins. RPA Disable/Other: Bumper Cut Required: Total Installation Time: 90 Mins. Note: ...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 SET SCREW HEX HD M12x40x1.75P COMPLIANCE LABEL WASHER PLAIN 1/2" DOOR RATING LABEL SET SCREW HEX HD M12x45x1.25P9 WIRING LOOM Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev: Page Issue Date:...
- Page 4 SPACER PLATE WASHER TORQUE FASTENERS 4 x M12 x 45mm BOLT TO 100 N.m WASHER B. MOUNT PLUGS TO BRACKET Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev: Page Issue Date: 03-02-2021...
- Page 5 TO PREVENT DAMAGE TO BUSHES WITH SCREW HOLES III. FINALLY FASTEN COVER TO HOUSING BY PUSHING SCREWS THROUGH BUSHES AND SECURING WITH NUTS Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev: Page...
- Page 6 Note. Shim is only required if the step bracket is on vehicle (BT-50 or Cab/Chassis model). 4. Repeat steps 1 to 3 for the opposite side. Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au...
- Page 7 Tighten side arms to chassis rail first in an even pattern/sequence. Repeat for centre section to side arms and finally torque all other fasteners. Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au...
- Page 8 ECU (04835) (2). 13. Secure the ECU to the chassis using tek screws or cable tie (not supplied). Ensure the ECU connector is facing downward. Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev:...
- Page 9 19. Test the trailer patch function using a light board or multi-meter. 20. Secure all harness using cable tie (not supplied). 21. Place fitting instructions in glovebox after fitment. Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev:...
-
Page 10: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 11 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
