PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03388RW
Maximum Towing Braked:
04826
Maximum Towing Unbraked:
1200 mm
Maximum Static Ball Load:
21201
102096WL
90 Mins.
Hayman Reese SmartCODE Solution Required:
25 Mins.
RPA Disable/Other:
115 Mins.
Note:
Yes
Page

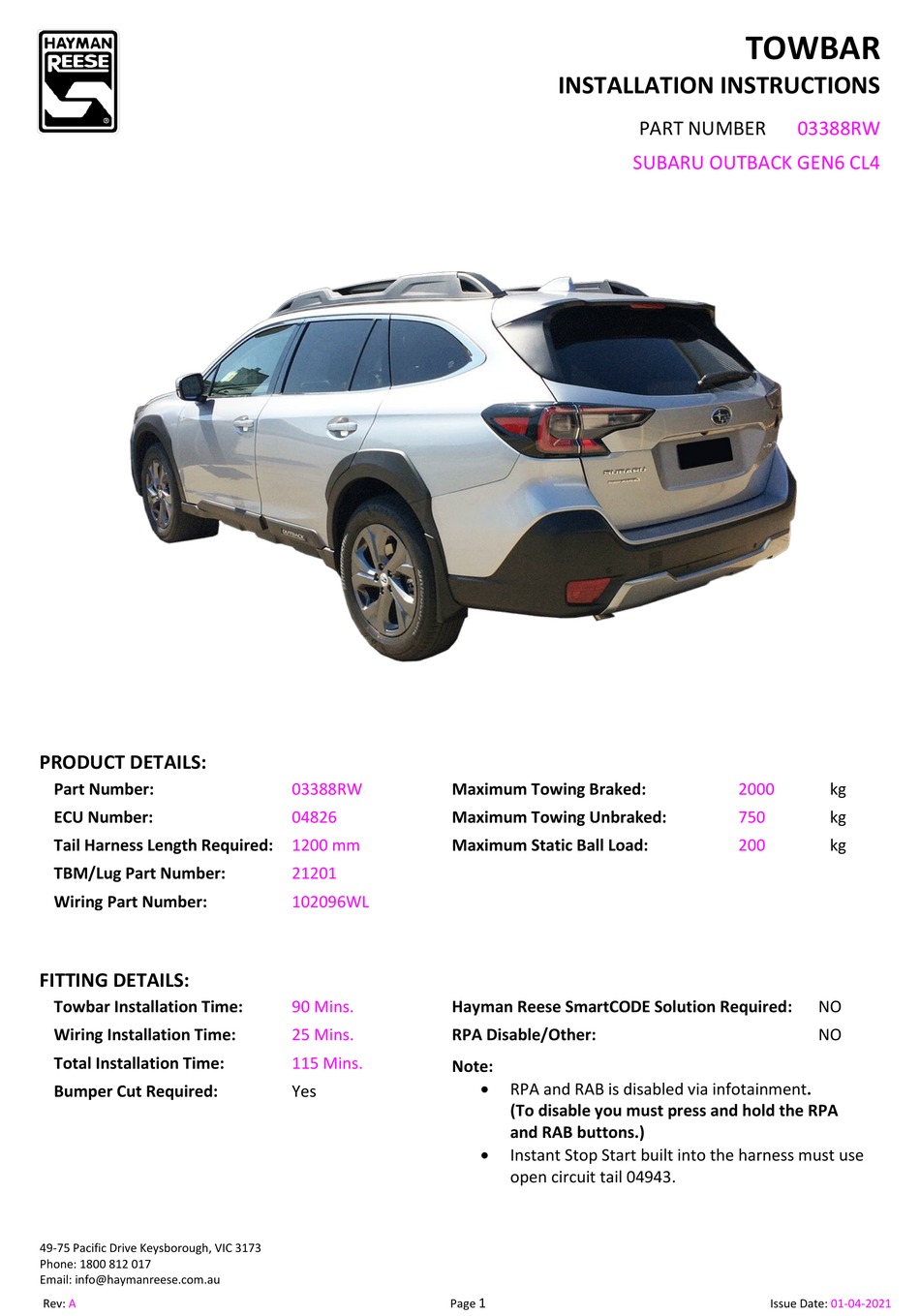

INSTALLATION INSTRUCTIONS
PART NUMBER
SUBARU OUTBACK GEN6 CL4
RPA and RAB is disabled via infotainment.
(To disable you must press and hold the RPA
and RAB buttons.)
Instant Stop Start built into the harness must use
open circuit tail 04943.
1
TOWBAR
03388RW
2000
kg
750
kg
200
kg
NO
NO
Issue Date:
01-04-2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03388RW
Summary of Contents for Hayman Reese 03388RW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21201 Wiring Part Number: 102096WL FITTING DETAILS: Towbar Installation Time: 90 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 25 Mins. RPA Disable/Other: Total Installation Time: 115 Mins. Note: RPA and RAB is disabled via infotainment.
-
Page 2: Installation Instructions

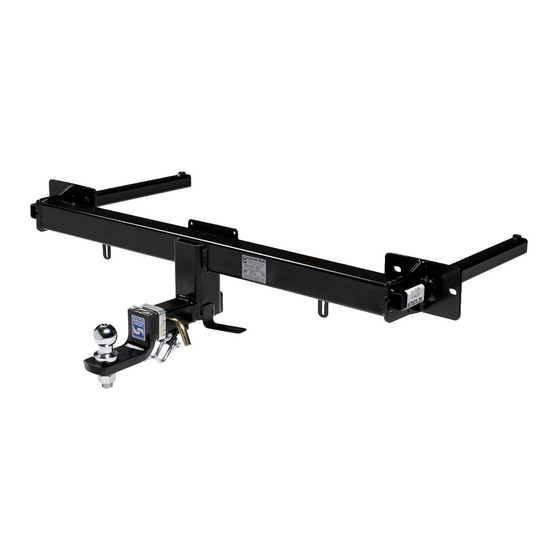

1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 TOWBAR ASSEMBLY DIAGRAM ITEM DESCRIPTION ITEM DESCRIPTION SUBARU OUTBACK WELDED ASSY TEK SCREW 14-20 HEX HD 22mm TRAILER BALL MOUNT TOWBALL 50mm SIDE ARM RHS ASSY "D" SHACKLE 10mm SIDE ARM LHS ASSY SMART PIN GOLD BOLT HEX HD M12x45x1.75P...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 1. Disconnect negative battery terminal (1). 2. Open the rear tailgate. Remove 2x scrivet clips. Remove the plastic cover. Repeat for the other side 3. Remove 2x screws Pull the taillight rear ward and disconnect the wire.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 4. Remove 2x scrivet clips and 3x screws. Repeat for the other side. 5. Remove 2x scrivet clips on bottom edge. Remove mudflap assembly. Remove final scrivet from bumper edge after removal of mudflap.
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 7. Remove 2x bolts from the exhaust muffler. Slide 2x muffler isolators off the hook mounts. Remove the muffler. 8. Remove 4x screws from the heat shield to access the chassis mount hole.
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 10. Unclip and remove the bumper rearward. Disconnect the bumper sensor harness from the LHS. Disconnect the key transmitter connector. Remove 4x bolts and 2x nuts from the impact beam.
- Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 13. Fit the key transmitter bracket and secure with a Tek screw. 14. Place masking tape on the bumper outer skin Mark and cut out an area 160mm x 90mm as shown to clear the hitch box.
- Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 16. Remove the grommet. Feed the tail harness connector through the hole. 17. Slide the grommet to desired length from the socket. Secure the harness with supplied cable ties and ensure the grommet seated in the hole.
- Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 21. At the rear RHS of the boot sill trim locate the 10- way trailer breakout connector. 22. Plug in the trailer patch harness (102096-WL) into the 10-way connector. 23. Using the supplied alcohol wipe clean the sheet metal area and underside of the ECU.
- Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03388RW SUBARU OUTBACK GEN6 CL4 29. Reconnect the negative battery terminal. 30. Refit all previously removed parts from step 2 to 10 and the step 18 to 20 in the reverse order. 31. Test the trailer patch function using a light board.
-
Page 12: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 13 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
