PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03285R
Maximum Towing Braked:
N/A
Maximum Towing Unbraked:
N/A
Maximum Static Ball Load:
21288
40 Mins.
Vehicle Coding Required:
N/A
RPA Disable/Other:
40 Mins.
Note:
No
Page
INSTALLATION INSTRUCTIONS
PART NUMBER
N/A
1
TOWBAR
03285R
JAYCO FA24 SERIES CL4
1500
kg
750
kg
100
kg
NO
NO
Issue Date:
13-06-19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03285R
Summary of Contents for Hayman Reese 03285R

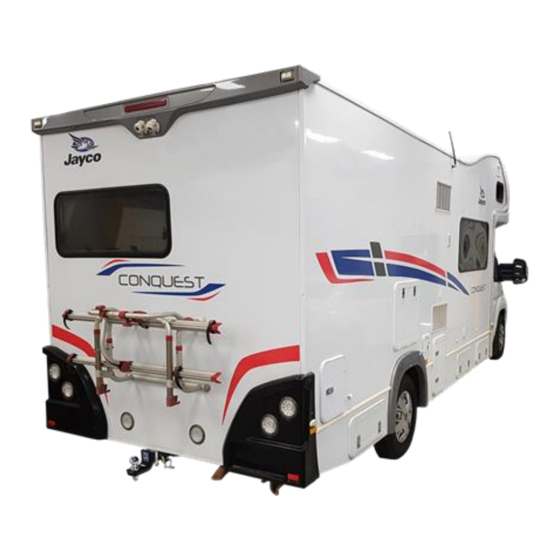

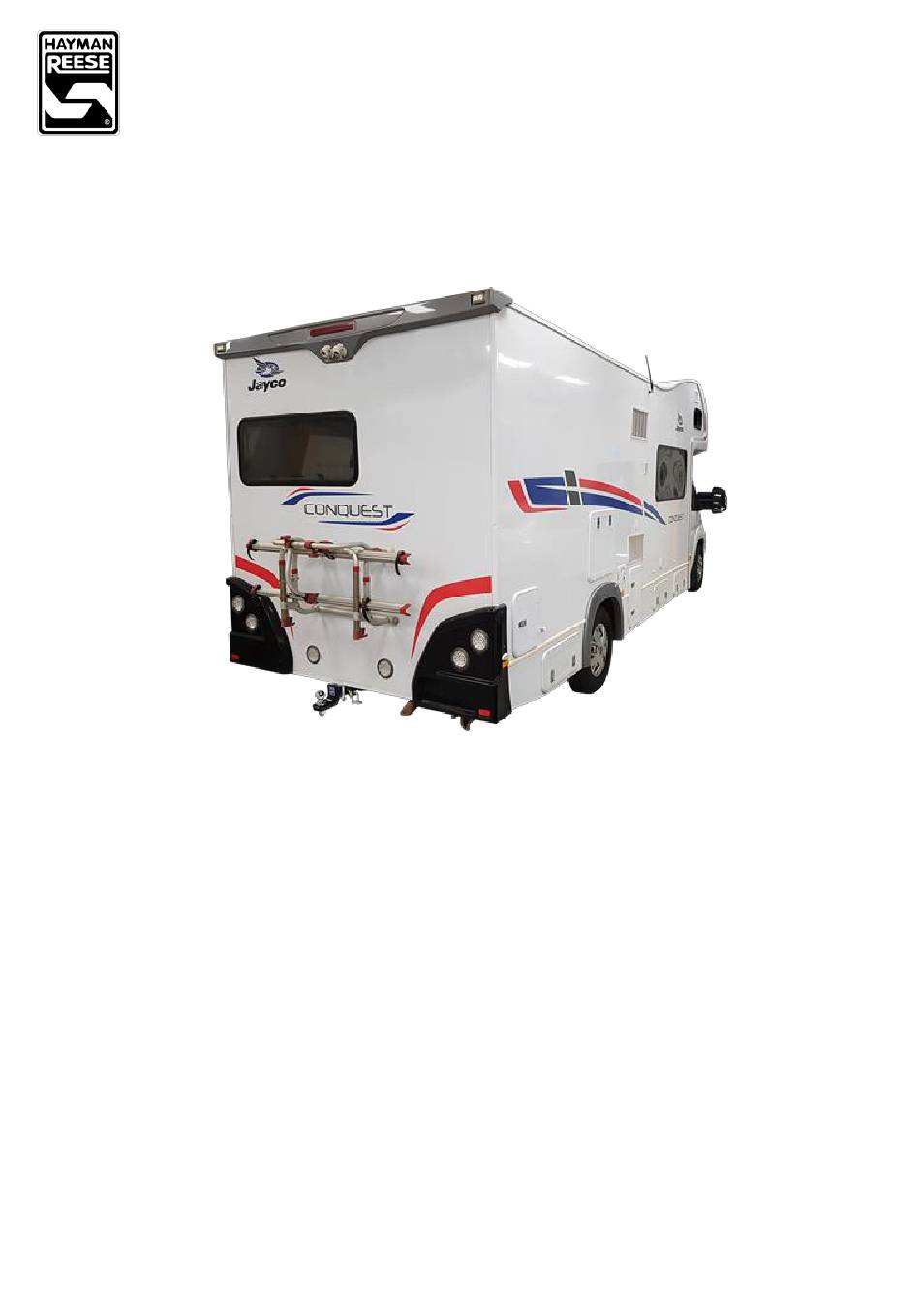

- Page 1 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03285R JAYCO FA24 SERIES CL4 PRODUCT DETAILS: Part Number: 03285R Maximum Towing Braked: 1500 ECU Number: Maximum Towing Unbraked: Tail Harness Length Required: Maximum Static Ball Load: TBM/Lug Part Number: 21288 Wiring Part Number: FITTING DETAILS: Towbar Installation Time: 40 Mins.
- Page 2 1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing.
- Page 3 HITCH BOX COLLAR COVER TOWBALL 50MM FLAT CHROME WASHER PLAIN 3/16x1/2x20G SCREW PAN HD M4x16x0.7P NUT NYLON LOCK HEX M4x0.7P HAYMAN REESE LOGO STICKER ACRYLIC COMPLIANCE LABEL 49-75 Pacific Drive Keysborough, VIC 3173 Phone: 1800 812 017 Email: info@haymanreese.com.au Rev:...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03285R JAYCO FA24 SERIES CL4 1. Remove the plug bracket from back panel. 2. NOTE. This step requires the chassis to be drilled. Position the side arm with the aid of 2 x M12 bolts on the chassis rail and use as a template to mark off on the chassis rail the centre hole position.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03285R JAYCO FA24 SERIES CL4 5. Raise the crosstube to the side arms and secure each end with 1 off M12 x 1.25 bolt complete with 1 x washers to the crosstube internal weld nut and 2 off M12 x 1.25 bolt complete with 2 x washers and 1 x...
- Page 6 TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following.
- Page 7 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
