PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03379RW
Maximum Towing Braked:
04835
Maximum Towing Unbraked:
1200 mm
Maximum Static Ball Load:
21342
102639-WL
60 Mins.
Hayman Reese SmartCODE Solution Required:
30 Mins.
RPA Disable/Other:
90 Mins.
Note:
Yes
Page

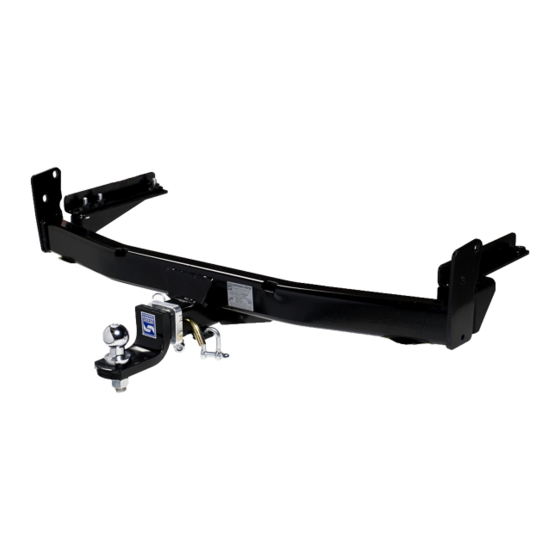

INSTALLATION INSTRUCTIONS
PART NUMBER

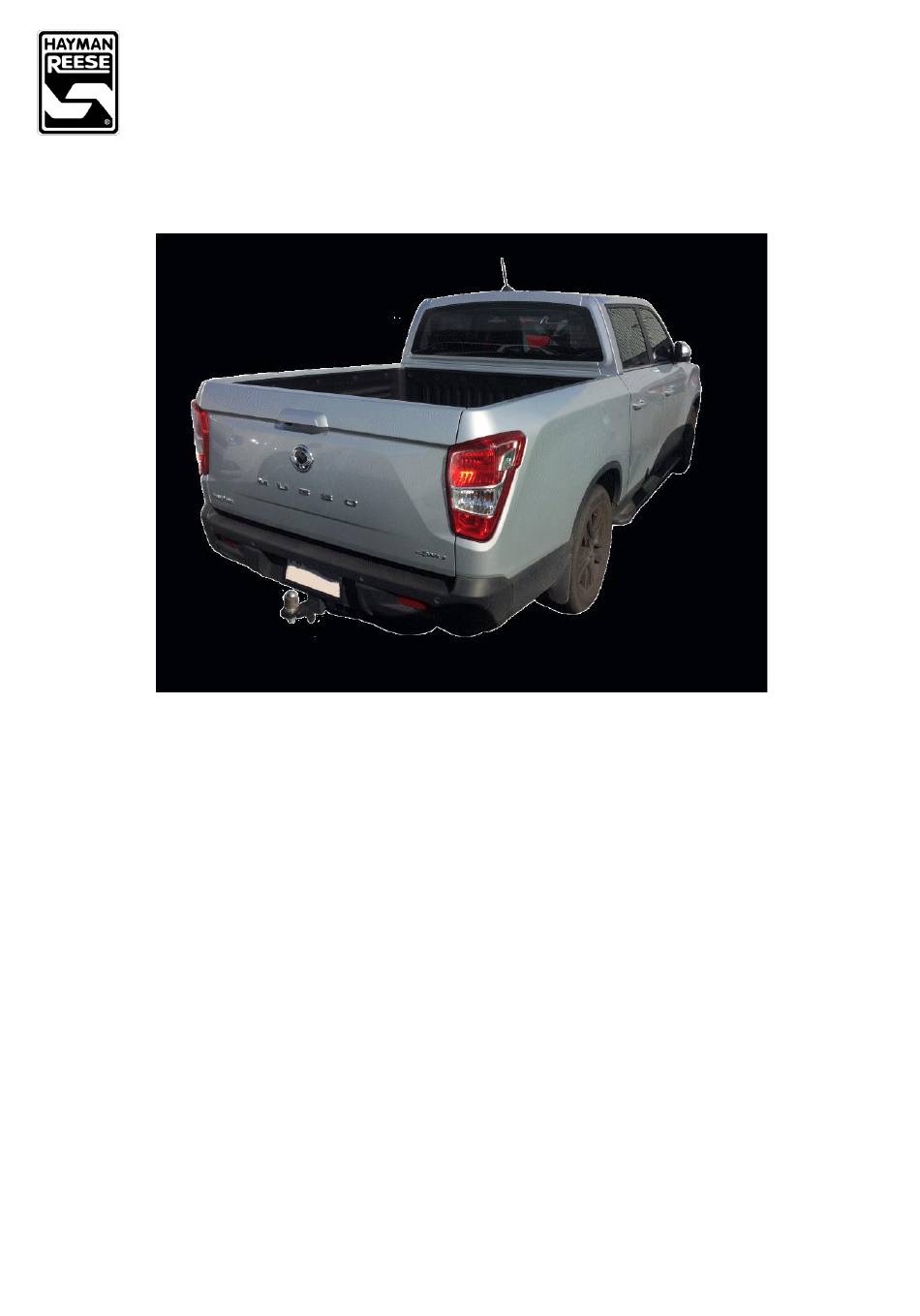

SSANGYONG MUSSO Q200/Q201 CL4
•
When RPA is disabled there will be 3 Question
marks on the centre instrument cluster (This is not
a fault This is to indicate the rear parking sensors
are disabled).
1
TOWBAR
03379RW
3500
kg
750
kg
350
kg
NO
YES
Issue Date:
10-08-2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03379RW
Summary of Contents for Hayman Reese 03379RW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21342 Wiring Part Number: 102639-WL FITTING DETAILS: Towbar Installation Time: 60 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 30 Mins. RPA Disable/Other: Total Installation Time: 90 Mins. Note: Bumper Cut Required: •...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 TOWBALL 50mm UNIVERSAL PLUG BRACKET KIT "D" SHACKLE 10mm BOLT HEX HD M14x190x2.0P SMART PIN GOLD NUT HEX HD M14x2.0P HAYMAN REESE LOGO STICKER WASHER PLAIN M14x28x3 HITCH BOX COLLAR COVER CRUSH TUBE COMPLIANCE LABEL BOLT HEX HD M14x130x2.0P DOOR RATING LABEL...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03379RW SSANGYONG MUSSO Q200/Q201 CL4 1. Using the wheel tool kit and lower the spare wheel. Unclip the harness wire from the chassis 2. Remove the rubber muffler isolator for easy access. 3. Fit the tow bar between the chassis and loosely secure with 1x bolt, 2 washers and 1x nut.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03379RW SSANGYONG MUSSO Q200/Q201 CL4 4. Fit 2x spacers under the chassis. Loosely secure 1x M14 bolt, 1x washer and 1x nut plate. Repeat for the other side SPACERS 5. Fit the crush tube into the chassis and slide 1x CRUSH M14 bolt and 1x washer halfway in.
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03379RW SSANGYONG MUSSO Q200/Q201 CL4 7. Fit the plug bracket on the dropper and secure with 2x screws, 4x washer and 2x nuts. Fit the TBM face up as shown. 8. In the Engine Bay, disconnect the vehicle battery negative terminal (1).
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03379RW SSANGYONG MUSSO Q200/Q201 CL4 13. For vehicles with reverse sensors, under the vehicle left hand side behind the rear left wheel, locate the vehicle bumper connector (1) attached to the chassis. 14. On the vehicle side, cut the RPA ground (Black) wire (2) and strip, crimp, splice and seal the grey and grey black wires to each side of the black wire.
- Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03379RW SSANGYONG MUSSO Q200/Q201 CL4 21. At the rear of the vehicle LHS, connect the tail harness (tail length 1200mm) 8-way connector (1) to the trailer patch mating 8-way connector (2). 22. Cut-off, crimp the tail harness GREY and GREY/BLACK wires (3) to the trailer patch matching GREY and GREY/BLACK wires (4).
-
Page 9: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 10 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
