PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03371RW
Maximum Towing Braked:
WLE70017
Maximum Towing Unbraked:
1800 mm
Maximum Static Ball Load:
21379
WLL90014
90 Mins.
Hayman Reese SmartCODE Solution Required:
60 Mins.
RPA Disable/Other:
150 Mins.
Note:
Yes
Page

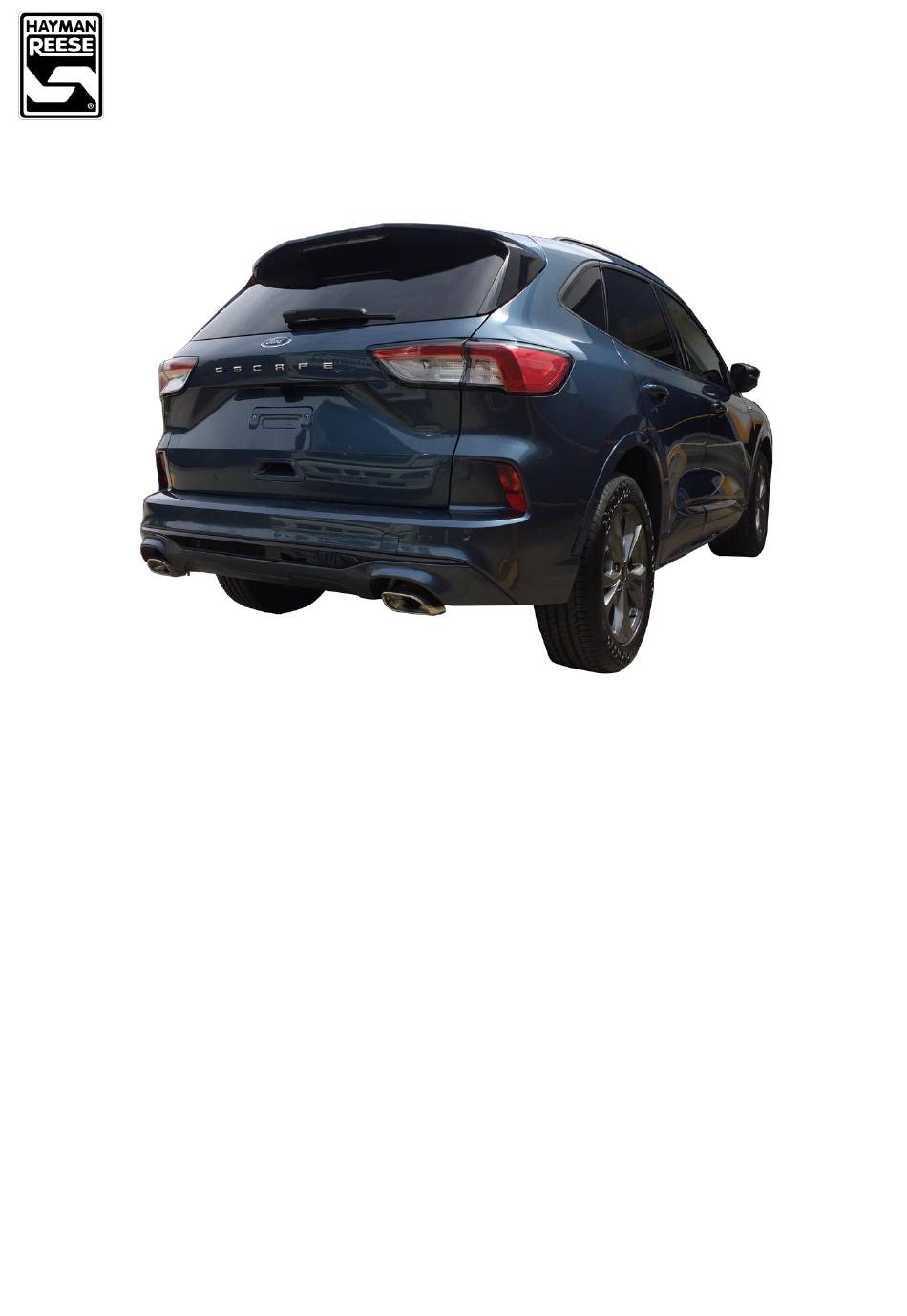

INSTALLATION INSTRUCTIONS
•
Please refer vehicles owner's manual for proper
operation and understanding of towing features
enabled when coded.
1
TOWBAR
PART NUMBER
03371RW

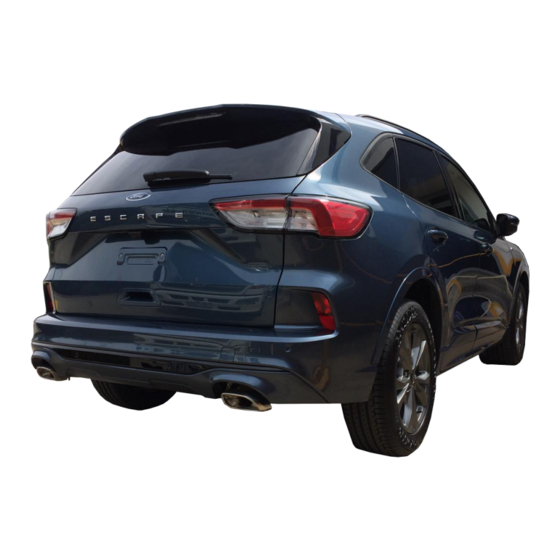

FORD ESCAPE ZH CL4
1800
750
180
Issue Date:
kg
kg
kg
YES
YES
05-07-2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03371RW
Summary of Contents for Hayman Reese 03371RW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21379 Wiring Part Number: WLL90014 FITTING DETAILS: Towbar Installation Time: 90 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 60 Mins. RPA Disable/Other: Total Installation Time: 150 Mins. Note: • Please refer vehicles owner’s manual for proper...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 TOWBAR ASSEMBLY DIAGRAM ITEM DESCRIPTION FORD ESCAPE WELDED ASSY SIDE ARM ASSEMBLY, LH SIDE ARM ASSEMBLY, RH TRAILER BALL MOUNT PLUG BRACKET NUT NYLOC HEX HD M4x0.7P WASHER PLAIN 1/2"...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 1. In wheel arch, remove 5 x scrivets. Repeat for other side. 2. Peel away wheel arch skirting (2 x plastic clips) to reveal 1 x scrivet and remove the scrivet.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 5. On the rear tailgate sill trim locate and remove the 2x scrivets. 6. Release the 2x covers on the cargo hooks to expose the fasteners, then remove. 7. Dislodge and remove the sill trim.
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 10. Under vehicle remove 1 x scrivet and 2 x hex screws. Repeat for other side. 11. Under bumper remove 4 x scrivets and 4 x hex screws. 12. Peel bumper away from the sides and remove from vehicle.
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 15. Insert side arm into the chassis rail and loosely secure the most forward (of vehicle) mounting position with 1 x M12 bolt complete with 1 x washer. Ensure the that the welded-on spacer plates on the side arms are facing outwards of the vehicle and that the orientation of the side arm is correct.
- Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 19. For Bumper cut. Unclip a centre section of the foot sensor from its position and move it away from the clip. Determine the centre of the bumper, measure, mark off and cut out a trapezium section 180/...
- Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 IMPORTANT Due to possible vehicle variations, always confirm any noted vehicle colour wires with a multi-meter to ensure the correct function is identified before soldering or scotch locking. For vehicle wires denoted with two colours (example;...
- Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 27. Drill a 30mm grommet hole (1) in a suitable location to enable the tail harness to be routed from the towbar to the ECU. Note: Remove all sharp edges and spray rust inhibitor.
- Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03371RW FORD ESCAPE ZH CL4 34. Test the trailer patch function using a light board. Note: ensure system is working prior to coding. 35. The next step is coding of the vehicle. Pay attention to the “SmartCODE” instruction page.
-
Page 12: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 13 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
- Page 14 OE functionality as set by OE manufacturer. Please read the vehicles owner’s manual for proper operation and understanding. Coding can be carried out using the Hayman Reese SmartCODE (HRSC) using the following steps. Note, if HRSC is unavailable, vehicle coding can be carried out by OE manufacturer as needed.
