PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03396RW
Maximum Towing Braked:
04835
Maximum Towing Unbraked:
See Note
Maximum Static Ball Load:
21201
102462-WL
60 Mins.
Hayman Reese SmartCODE Solution Required:
60 Mins.
RPA Disable/Other:
120 Mins.
Note:
No
Page

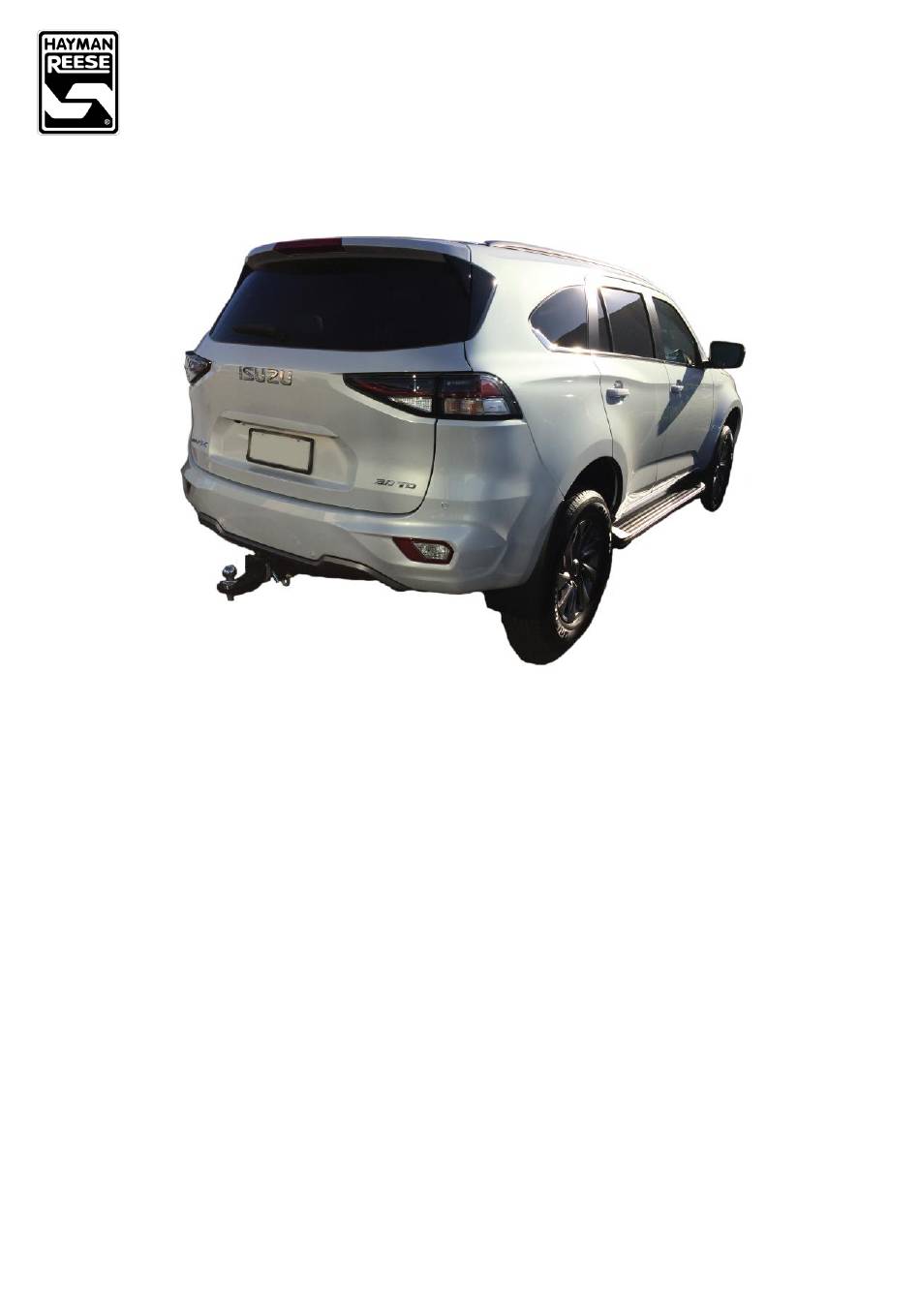

INSTALLATION INSTRUCTIONS
PART NUMBER
•
04943 tail must be use for RPA disable.
1
TOWBAR
03396RW

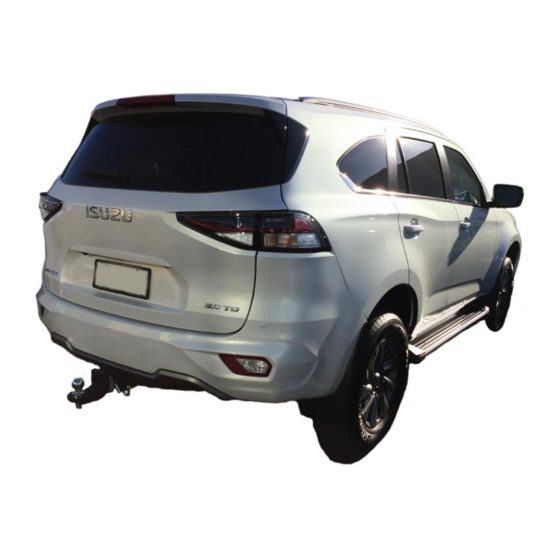

ISUZU MU-X MY21 CL4
3500
kg
750
kg
350
kg
NO
YES
Issue Date:
05-08-2021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03396RW
Summary of Contents for Hayman Reese 03396RW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21201 Wiring Part Number: 102462-WL FITTING DETAILS: Towbar Installation Time: 60 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 60 Mins. RPA Disable/Other: Total Installation Time: 120 Mins. Note: Bumper Cut Required: •...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 WASHER PLAIN 1/2" HITCH BOX COLLAR COVER SET SCREW HEX HD M12x45x1.25P "D" SHACKLE 10mm BOLT HEX HD M10x40x1.25P TOWBALL 50mm WASHER FLAT M10x23x2 HAYMAN REESE LOGO STICKER SPACER PLATE COMPLIANCE LABEL BUMPER TAB DOOR RATING LABEL 2MM SHIM PLATE WIRING LOOM...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03396RW ISUZU MU-X MY21 CL4 1. Open tailgate, lower and remove spare wheel. Spare wheel tools are located behind the driver’s side panel in the luggage compartment. 2. Under bumper, remove the 2 x scrivets securing the bumper to the bumper brackets.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03396RW ISUZU MU-X MY21 CL4 4. Lift the towbar assembly along with the bottom 2mm Shim spacer plate up to chassis rail and loosely secure the if required Bottom side with 3 x M12 bolts complete with 1 x washer per...
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03396RW ISUZU MU-X MY21 CL4 8. Secure the plug bracket to the dropper with 2 x M5 screws complete with 1 x washer and 1 x nut per screw. 9. On the LHS for the chassis locate the 8-way breakout connector and remove the blanking plug (1).
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03396RW ISUZU MU-X MY21 CL4 13. Mount the trailer socket (1) to the plug bracket. 14. Route the tail harness blue connector (2) (tail length 1200mm) towards the trailer patch mating connector. 15. Connect the tail harness 8-way connector (1) to the trailer patch mating 8-way connector (2).
-
Page 8: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 9 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
