PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part Number:
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
A
03375RW
Maximum Towing Braked:
N/A
Maximum Towing Unbraked:
1200 mm
Maximum Static Ball Load:
21163
102647-WL
30 Mins.
Hayman Reese SmartCODE Solution Required:
15 Mins.
RPA Disable/Other:
45 Mins.
Note:
Yes
Page

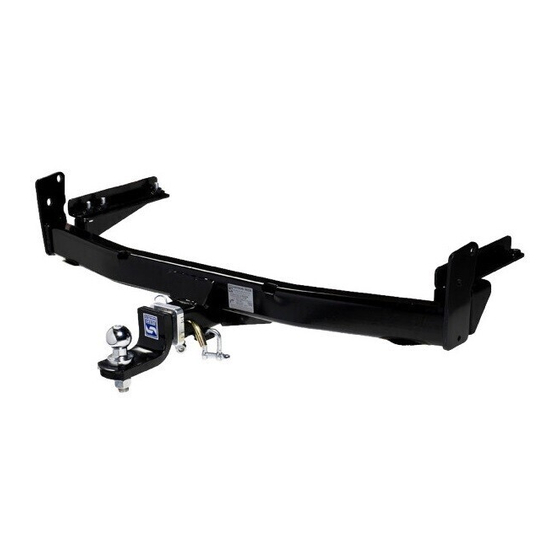

PART NUMBER
VOLKSWAGEN CRAFTER SY CAB/C CL4 SC
•
Please refer vehicles owner's manual for proper
operation and understanding of towing features
enabled when coded.
1
TOWBAR
03375RW
2500
kg
750
kg
250
kg
YES
YES
Issue Date:
25-08-2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03375RW
Summary of Contents for Hayman Reese 03375RW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21163 Wiring Part Number: 102647-WL FITTING DETAILS: Towbar Installation Time: 30 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 15 Mins. RPA Disable/Other: Total Installation Time: 45 Mins. Note: Bumper Cut Required: •...
- Page 2 1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing.
- Page 3 VOLKSWAGEN CRAFTER TRAILER BALL MOUNT BOLT HEX HD M12x120x1.25P WASHER FLAT M12x27x3 NUT HEX HD M12x1.25P UNIVERSAL PLUG BRACKET KIT HAYMAN REESE LOGO STICKER HITCH BOX COLLAR COVER "D" SHACKLE 10mm SMART PIN GOLD TOWBALL 50mm COMPLIANCE LABEL LOAD RATING LABEL...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03375RW VOLKSWAGEN CRAFTER SY CAB/C CL4 SC 1. Remove the spare wheel winder. 2. Fit the tow bar between the chassis and loosely secure with 4x bolts, 8x washer and 4x nuts Repeat to other side.
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03375RW VOLKSWAGEN CRAFTER SY CAB/C CL4 SC 4. Locate the trailer prep 14-way connector located on the LHS chassis. 5. Disconnect the blanking plug. 6. Patch in the trailer patch (102647-WL) Into the trailer prep 14-way connector.
- Page 6 TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following.
- Page 7 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
- Page 8 OE functionality as set by OE manufacturer. Please read the vehicles owner’s manual for proper operation and understanding. Coding can be carried out using the Hayman Reese SmartCODE (HRSC) using the following steps. Note, if HRSC is unavailable, vehicle coding can be carried out by OE manufacturer as needed.
