Connecting Field Power
Wire Range: 12 to 16 AWG (ferrule diameter: 2.053 to 1.291 mm)
Wire Strip Length: 10 mm

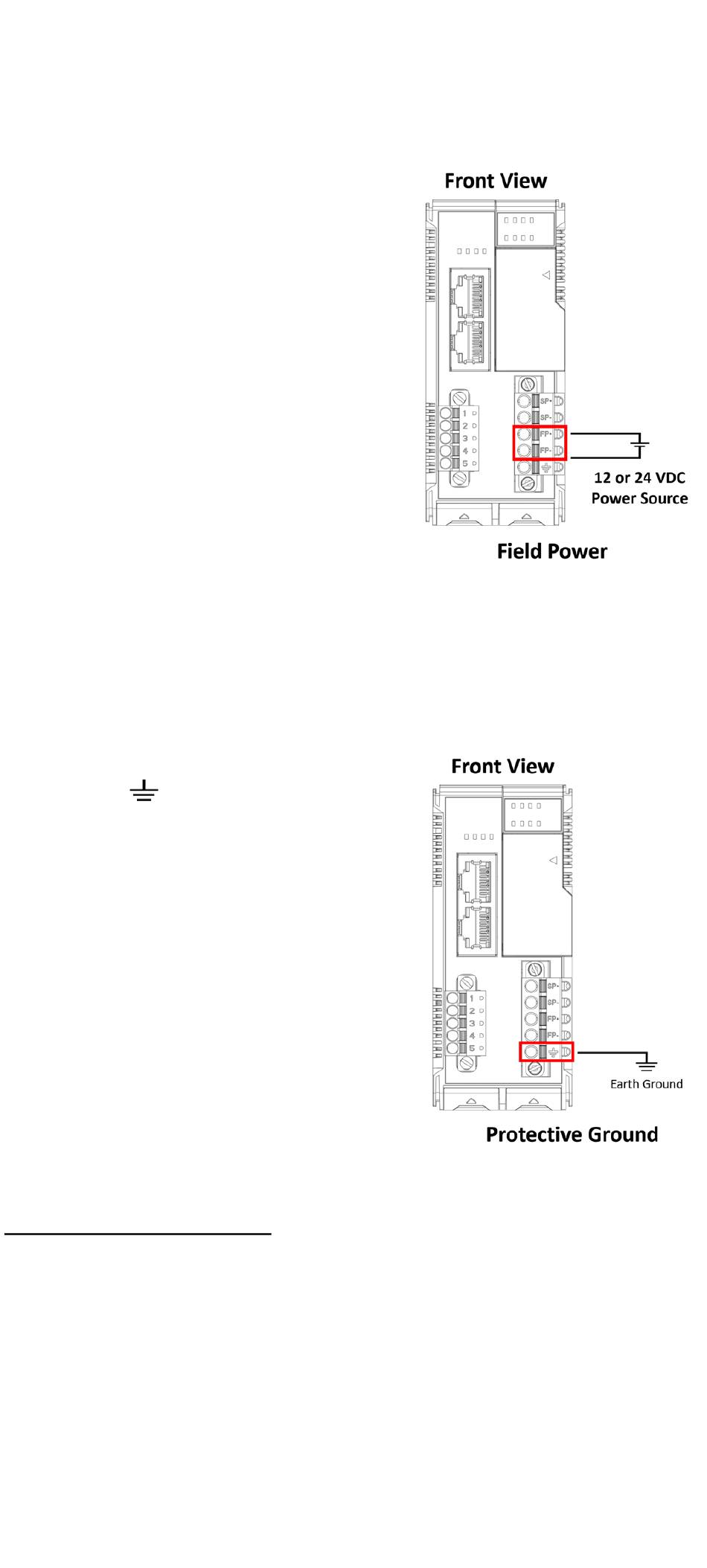

The ioThinx 4510 can receive field power
through a 12/24 VDC power input. Field
power can be used to supply power for
some I/O modules, such as digital input
and analog output modules.
Connecting the Field Power Ground
Wire Range: AWG 12 to 18 (ferrule diameter 2.053 to 1.024 mm)
Wire Strip Length: 10 mm
The iothinx 4510 has a field power ground and two ground pins on the
back of the device.
For surge protection, connect the Field
Ground pin ( ) to your field power
ground and connect the DIN rail to the
earth ground.

Connecting to the Network

Ethernet Communication
The ioThinx 4510 is equipped with dual unmanaged LAN ports (RJ45).
Connect a network Ethernet cable to either port to provide an Ethernet
connection to the unit.
