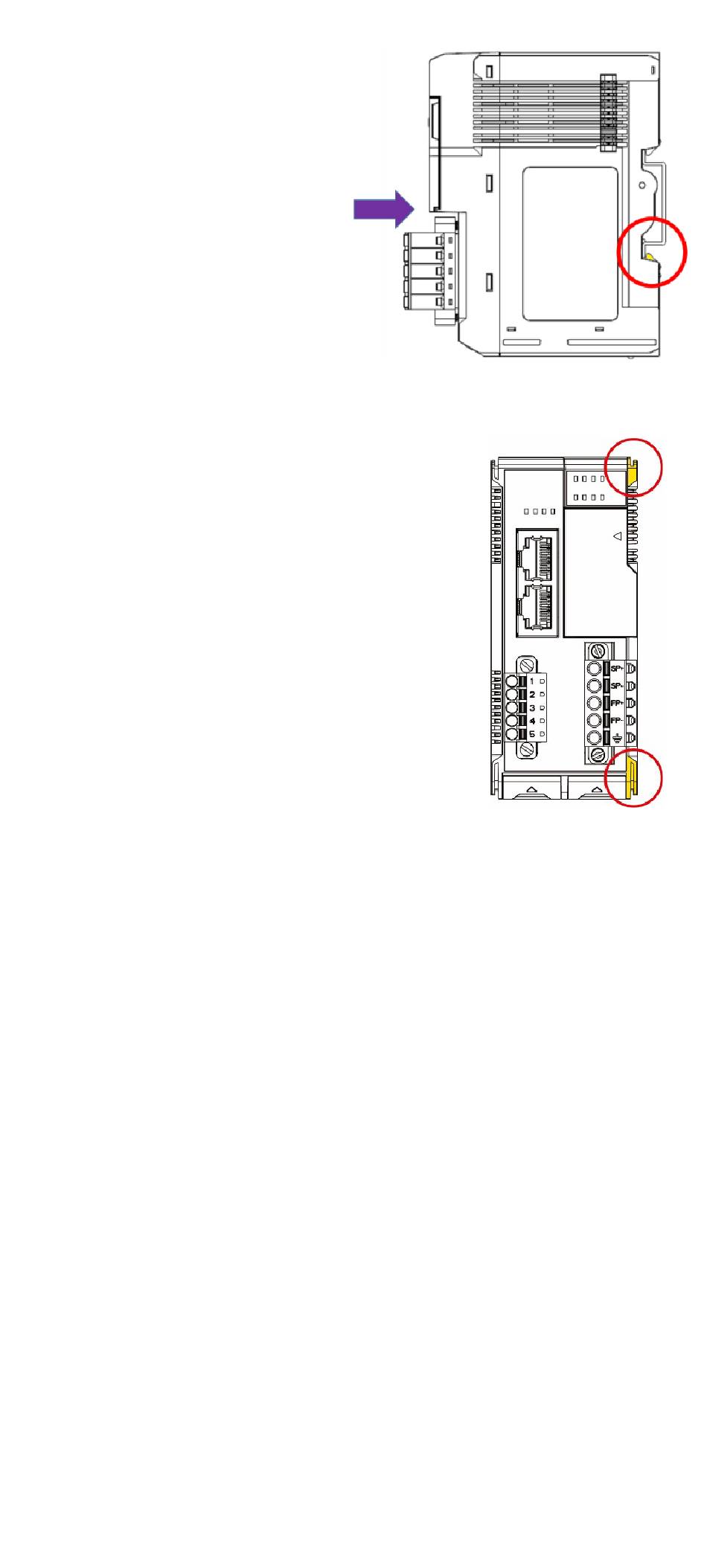

Step 2: Push the unit toward the
DIN rail until the mounting clip
snaps in place.
Installing a 45M Module on a DIN Rail
Step 1: Align the 45M module side by side
with the head/CPU module, making sure that
the upper and lower rails are hooked
together.
