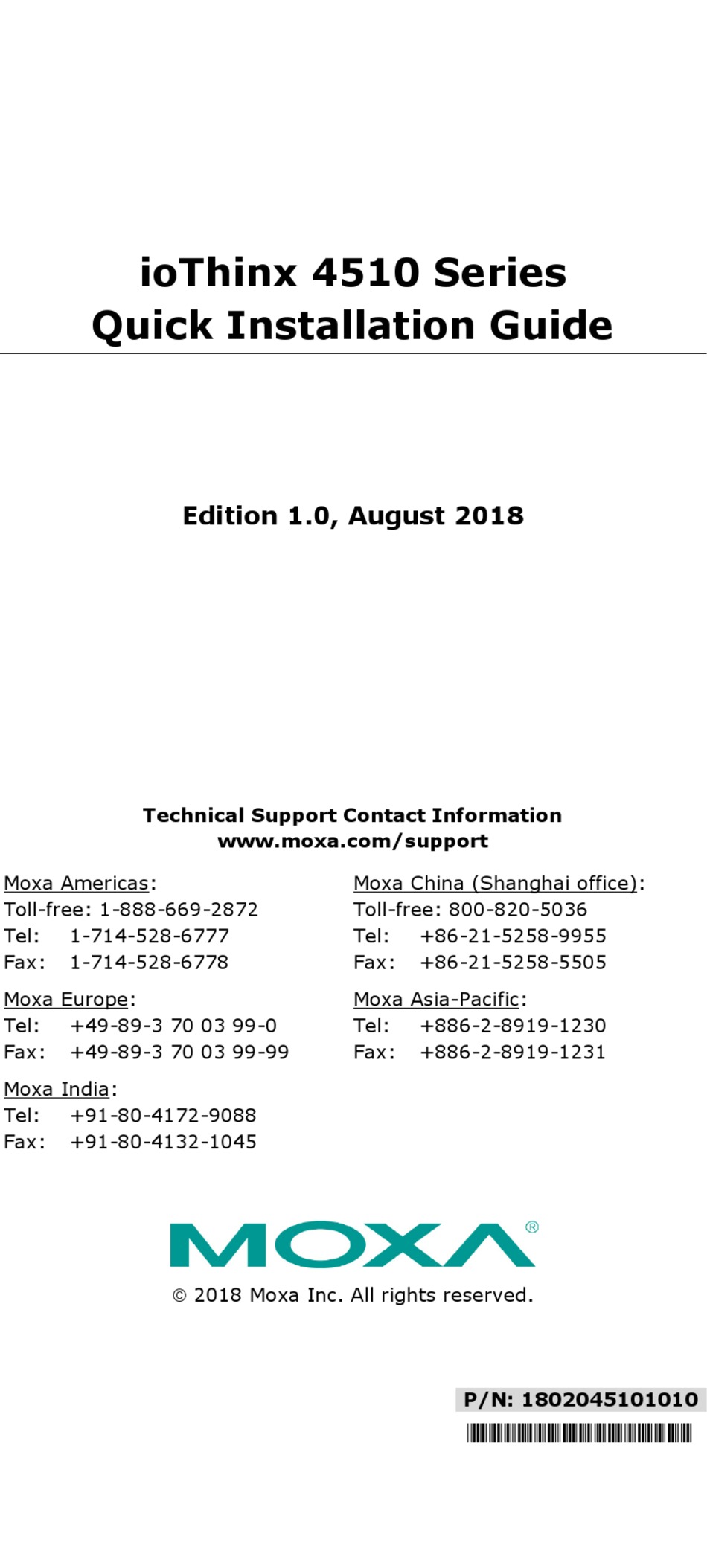

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
ioThinx 4510 Series
Edition 1.0, August 2018
Technical Support Contact Information
www.moxa.com/support
 2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802045101010
*1802045101010*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ioThinx 4510 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies ioThinx 4510 Series

Summary of Contents for Moxa Technologies ioThinx 4510 Series

  • Page 1 4510 Series Quick Installation Guide Edition 1.0, August 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

  • Page 2: Package Checklist

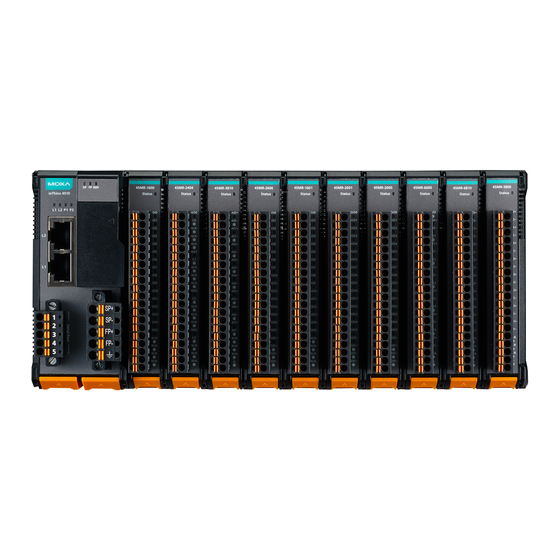

    Introduction The ioThinx 4510 is an advanced modular remote I/O device with a unique hardware and software design that makes it ideal for a variety of industrial data acquisition applications. Package Checklist • 1 ioThinx 4510 product • Quick installation guide (printed) •...

  • Page 3: Connecting To The Network

    Connecting Field Power The ioThinx 4510 can receive field power through a 12/24 VDC power input. Field power can be used to supply power for some I/O modules, such as digital input and analog output modules. Connecting the Field Power Ground Connect the Field Ground pin ( ) to the field power ground.
  • Page 4 Serial Communication The ioThinx 4510 is equipped with a 3-in-1 serial interface, which supports 1 RS-232 port, or 1 RS-422 port, or 2 RS-485 ports. Follow the pin assignment table below to set up serial connection to the unit. RS-232 RS-422 RS-485 (P1)
  • Page 5 Installing a 45M Module on a DIN-Rail Step 1: Align the 45M module side by side with the head/CPU module, making sure that the upper and lower rails are hooked together. Step 2: Align the 45M module side by side with the head/CPU module and then push the 45M module until it touches the DIN-rail.
  • Page 6 Step 2: Push the top of the release tab to latch it, and then pull the module out. NOTE Electrical connections for internal bus will be disconnected when removing the 45M module. WARNING Be sure the power is off before removing modules to avoid unexpected damage.

  • Page 7: Led Indicators

    LED Indicators Name Indication LED Qty Description System On: Power on Power Off: Power off Field Power 1 On: Power on Off: Power off System Green: System ready (Kernel) Green Slow Blinking: Booting up Ready Red: System error Red Slow Blinking: Loading Factory Default Recovery/Upgrading firmware/Backup mode Red Fast Blinking: Safe mode...

  • Page 8: Specifications

    How to Download the Software Related software packages can be downloaded from the Moxa website. Step 1: Go to the following address to open the Support & Downloads search tool: http://www.moxa.com/support/support_home.aspx?isSearchShow=1 Step 2: Type the model name in the search box or select a product from the drop-down box and then click Search.
