Wall-Mounted Installation
1. Use the back plate's mounting holes to mark the location of any holes that need to be drilled.
2. Drill the required holes (two at least).
3. Clean the surface and mount the expansion module using the appropriate screw types.
Figure 2: Wall-mounted expansion module

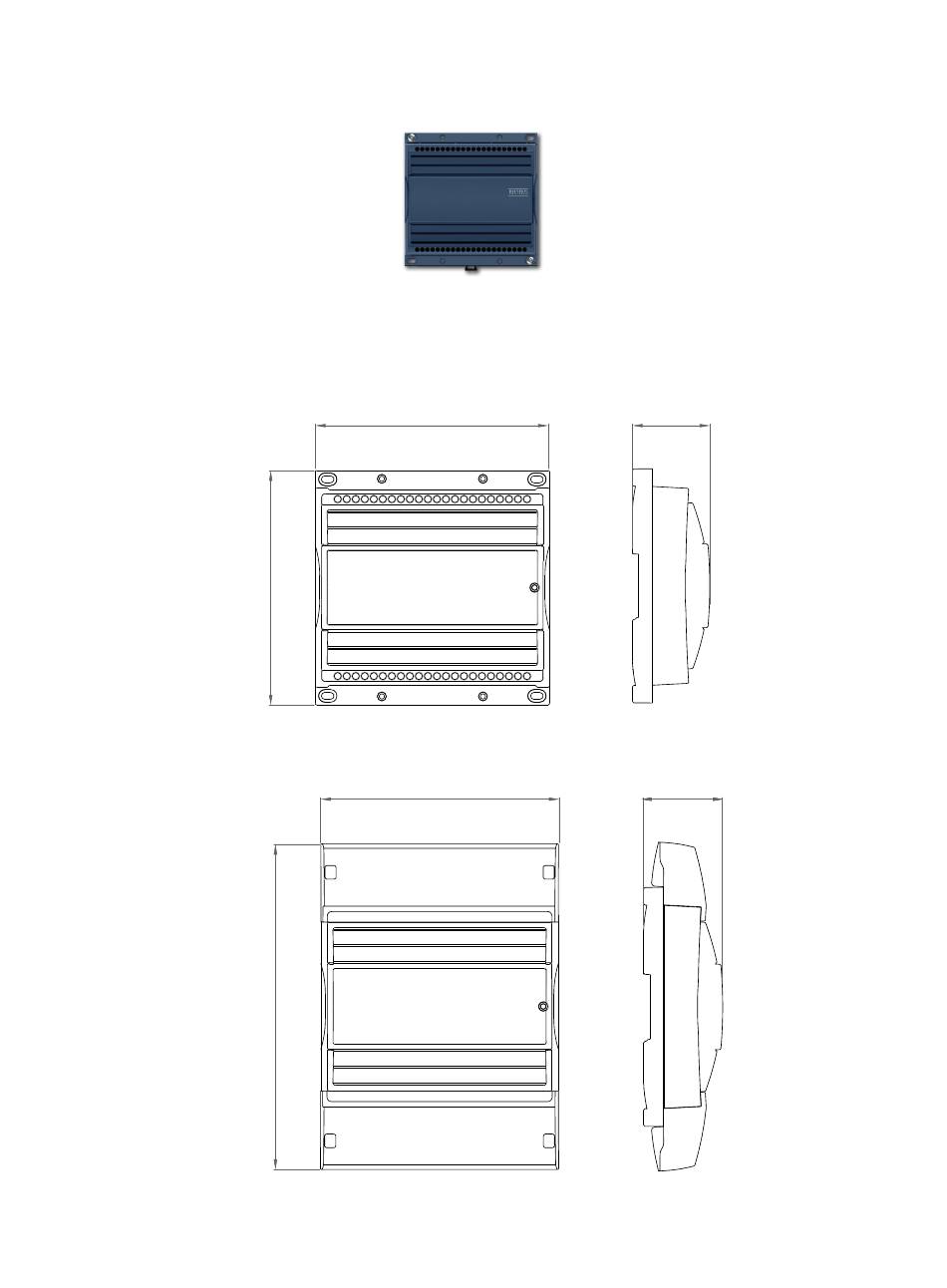

Device Dimensions
Figure 3: Front view and side view of the enclosure without strain relief
Figure 4: Front view and side view of the enclosure with strain relief
4 / 21
132 (5.2)
132 (5.2)
132 (5.2)
182
(7.2)
44 (1.7)
mm (inches)
44 (1.7)
mm (inches)
