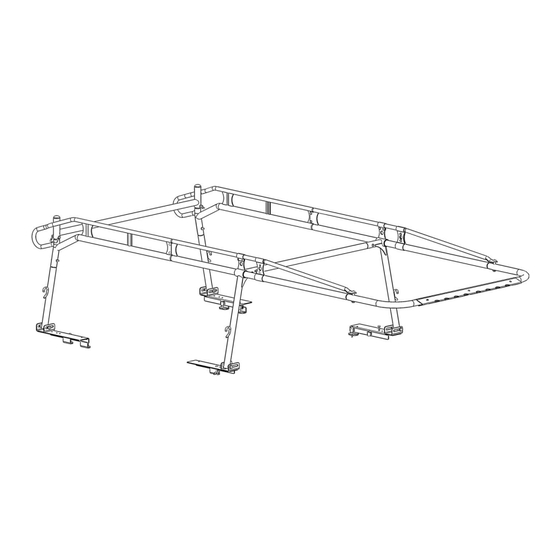

- Page 1 Instruction Guide Pro III Truck Rack Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20230620R5 DATE: ________________...
-
Page 2: Table Of Contents
Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. Too much weight will greatly reduce the stability of your vehicle. Holman makes no representation or warranty as to the amount of weight your vehicle can safely carry. - Page 3 Read all instructions carefully, and follow each step in proper sequence, for ease and speed in assembling your rack. These instructions cover the 80000 and 80020 Pro III Racks. PROPER SEALANT APPLICATION IS CRITICAL TO PREVENTING WATER PENETRATION INSIDE THE RACK.
-
Page 4: Parts List
Instructions – Pro III Truck Rack Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3... -
Page 5: Hardware
Instructions – Pro III Truck Rack Parts List Cont. Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 4... - Page 6 Instructions – Pro III Truck Rack Hardware Cont. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 5...
-
Page 7: Installation Preparation
Instructions – Pro III Truck Rack Hardware Cont. Tools Needed 1/2”, 9/16”, 3/4" Sockets and Wrench 3/4" Box Wrench 3/8” Drill Bit and Drill 1/4", 5/16”, 3/8” Allen Wrench Installation Preparation There are two ways to install the rack to the... -
Page 8: Step 1A - Install Front Feet Using Clamps And T-Nuts
Instructions – Pro III Truck Rack Step 1A – Install Front Feet Using Clamps and T-nuts Position FRONT FOOTPLATES on the truck bedrail, as far forward as possible, firmly against the inside of the bed rail. Determine which... -
Page 9: Step 2 - Permanently Bolting Front Feet To Bed Rail
Instructions – Pro III Truck Rack Step 2 – Permanently Bolting Front Feet to Bed Rail Follow these steps if you prefer to permanently mount the FOOTPLATES to the bed rail. Verify the permanent mount location is accessible from inside the bed, below the bed rail. -
Page 10: Step 5 - Attach Rear Legs
Instructions – Pro III Truck Rack Using two 5/16” X 3/4” button head bolts, two 5/16” washer, and two 5/16” lock nuts loosely attach the top CLAMP. Step 5 – Attach Rear Legs Cover entire swage joints with sealant ... -
Page 11: Step 8 - Install Front Crossbar
Instructions – Pro III Truck Rack Step 8 – Install Front Crossbar Apply sealant to front side-channel swaged joint. Insert front side-channel swaged joint into front tube until bolt holes in tube and side- channel align. Loosely fasten front tube to side channel using 1/2”... -
Page 12: Step 11 - Attach Front Supports
Instructions – Pro III Truck Rack Repeat for each leg. Tighten up the bolts on the crossbar and clamp plates as well as the set screws. Step 11 – Attach Front Supports Using two 5/16” x 3/4” button head bolts, two 5/16”...
