Summary of Contents for Holman 4A93L

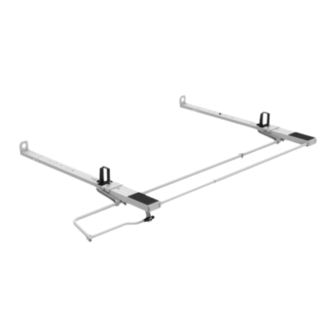

- Page 1 Assembly Guide 4A93L Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20231113R3 DATE: ________________...
-
Page 2: Table Of Contents
1/2” Wrench and Socket 9/16” Wrench and Socket Tape Measure Before You Begin • Read all instructions prior to assembling or installing any Holman product. • Have mount kit installed on vehicle. • NEVER EXCEED MANUFACTURERS ROOF WEIGHT RATING. •... -
Page 3: Parts List
Instructions – 4A93L Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Hardware
Instructions – 4A93L Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3... -
Page 5: Step 1 - Load Plates
Instructions – 4A93L Step 1 – End Stops Note: If installing driver side drop down, skip installing end stops. • At the end of each bow, opposite from the pan mechanism, bolt end stops using two 5/16” x 1” carriage bolts, two 5/16”... -
Page 6: Step 2 - Pan Mount
Instructions – 4A93L Step 3 – Pan Mount • Be sure mount kit is installed on vehicle. • Set front and rear bow assembly on mounting feet as shown. • Place a foam block from the packaging to hold the bow in the up position in order to access the mounting slots. -
Page 7: Step 4 - Install Torque Tube
Instructions – 4A93L Step 5 – Install Torque Tube • If extension is needed, assemble extension to long torque tube. • If extension is not needed, only use long torque tube. • Bolt torque tube to front and rear bow using 1/4" x 1” hex head bolt, two 1/4" flat washers and 1/4"... -
Page 8: Step 5 - Install Cross Tube
Instructions – 4A93L Step 6 – Install Cross Tube • Insert cross tube as shown. • Bolt to the end of both pans using 3/8” x 3/4" hex head bolts, 3/8” lock washers and 3/8” flat washers. • Repeat at both bows. -
Page 9: Step 6 - Install Latch
Instructions – 4A93L Step 7 – Install Latch • Move rear pan assembly out of the way to expose the end of the cross member. Be sure to attach to the inner holes on the bow. • Bolt latch assembly to end of cross member using 5/16”... -
Page 10: Step 8 - Install Ladder Stop
Instructions – 4A93L Step 9 – Install Ladder Stop • Attach ladder stop to both front and rear bow. Be sure the flange of the ladder stop is aligned with the cut out in the bows. • In the front bow, bolt in place using 3/8”... -
Page 11: Step 9 - Assemble Ladder Hooks
Instructions – 4A93L Step 10 – Assemble Ladder Hooks Note: Before use the ladder hook must be adjusted to an appropriate height for the ladder that will be used. The height of the hook needs to be at least 1/4" greater than the ladder. The ladder should fit loosely on the hook, not snug. -
Page 12: Step 10 - Install Ladder Hooks
Instructions – 4A93L Step 11 – Install Ladder Hooks • Using the hardware and installed studs on both bows, loosen nuts and slide ladder hook assembly into place. • Tighten. DO NOT USE IMPACT WRENCH! GO BACK AND TIGHTEN ALL HARDWARE.
