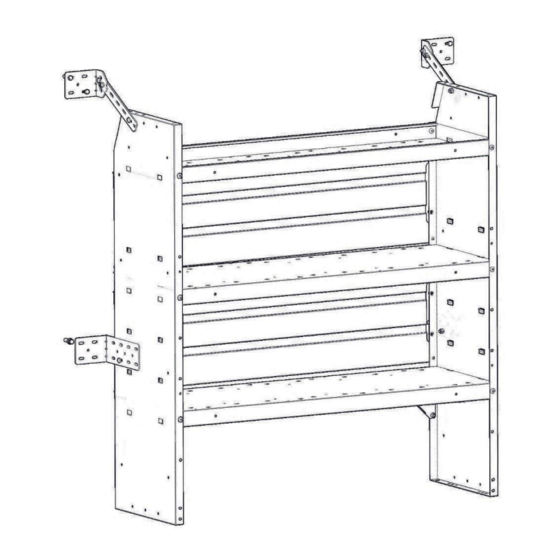

- Page 1 Installation Guide 4861 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20220901R9 DATE: ______________...
-
Page 2: Table Of Contents
Step 5 – Mount to Floor ......................... 7 Step 6 – Mount to Shelf ......................... 7 Before You Begin Read all instructions prior to assembling or installing any Holman product. Ensure it is safe to drill before drilling anywhere on vehicle. ... -
Page 3: Parts
Instructions – 4861 Parts Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Plus Nuts Installation Instructions
Instructions – 4861 Plus Nuts Installation Instructions DO NOT drill beyond depth of floor or upper installation surface. Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. -
Page 5: Step 1 - Insert Shelf Into Van
Instructions – 4861 Step 1 – Insert Shelf into Van Set shelf in vehicle in desired location. If using factory threaded bosses be sure to line mounting brackets up first. Floor spacers are provided if desired location does not have a solid platform. -
Page 6: Step 3 - Install Top Mount
Instructions – 4861 Step 3 – Install Top Mount Place upper mount bracket firm against a structural member of van. Mark location of two holes for installing plus nuts. The locations of these holes will vary based on your vans application. -
Page 7: Step 4 - Install Mid Mount
Instructions – 4861 Step 4 – Install Mid Mount Locate a solid place on van interior to mount midway down of shelf side. Place mid mount bracket firmly against shelf side, trying to pick up an existing hole, and position tightly against van wall. -
Page 8: Step 5 - Mount To Floor
Instructions – 4861 Step 5 – Mount to Floor Mark on floor where the bottom of the shelf mounts best. Repeat front and rear. Remove shelf. Install plus nuts per above Plus Nut Installation Instructions. ...
