Summary of Contents for Holman 40669TH

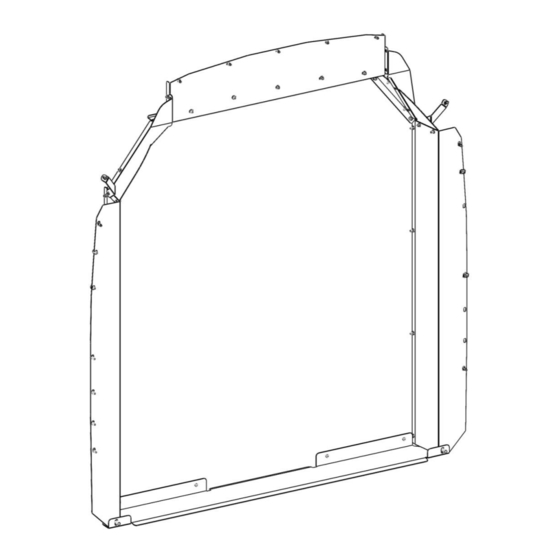

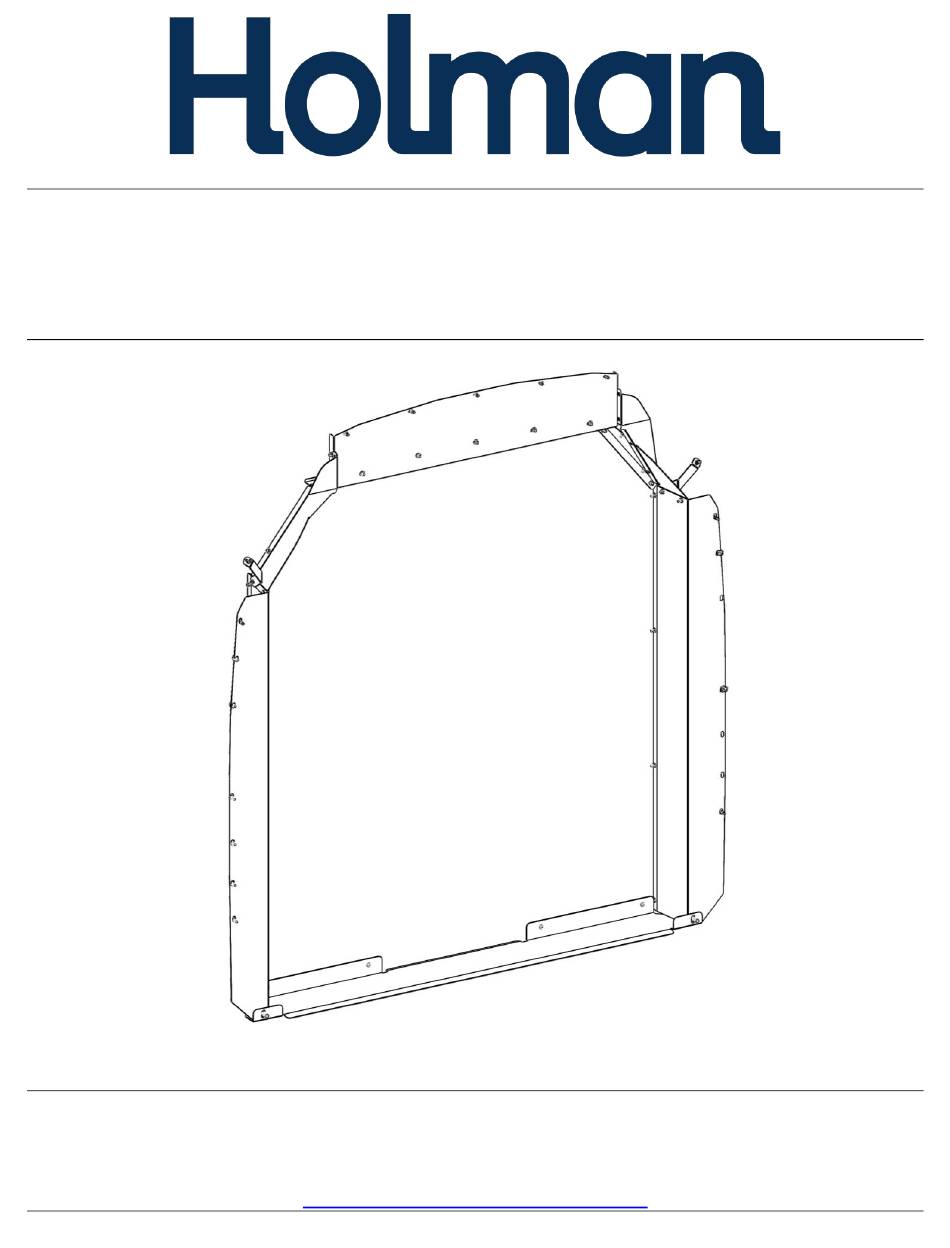

- Page 1 Instruction Guide 40669TH Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20231019R6 DATE: ________________...
-
Page 2: Table Of Contents
Step 13 – Install Wings to D-ring Holes ..................12 Before You Begin • Read all instructions prior to installing any Holman product. • Be sure to have a tall partition (40660, 40661, 40662, or 40665) assembled and ready to be installed. -
Page 3: Parts List
Instructions – 40669TH Parts List Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... - Page 4 Instructions – 40669TH Hardware (Continued) For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3...
-
Page 5: Step 1 - Attach Side Wings
Instructions – 40669TH Step 1 – Attach Side Wings • Using four 1/4” x 5/8” flanged bolt and four 1/4” flanged lock nuts, bolt side wing to partition (40660). • Snugly tighten. • Repeat this step on opposite side partition. -
Page 6: Step 3 - Attach Corner Panels
Instructions – 40669TH Step 3 – Attach Corner Panels • Using two 1/4” x 5/8” flanged bolts and two 1/4” flanged lock nuts, bolt corner panel to partition. • Snug tighten but allow for movement. SHOWN WITHOUT TOP WING FOR CLARITY •... -
Page 7: Step 5 - Attach Corner Wing Panels
Instructions – 40669TH REAR VIEW Step 5 – Attach Corner Wing Panels NOTE: The corner brackets are side specific. Verify the correct bracket position prior to installing. • Using 1/4” x 5/8” flanged bolts and 1/4” flanged locknuts, bolt each corner wing to corner panel. -
Page 8: Step 6 - Attach Top Wing
Instructions – 40669TH Step 6 – Attach Top Wing • Using 1/4” x 5/8” flanged bolts and 1/4” flanged Locknuts, loosely bolt the top wing to the top panel. • DO NOT tighten. • Using two 1/4” x 5/8” flanged bolts and two 1/4”... -
Page 9: Step 9 - Install Driver's Side Wing To "B" Pillar
Instructions – 40669TH Step 9 – Install Driver’s Side Wing to “B” Pillar NOTE: On the driver side the wing kit can be installed using either U-nuts or the included plus nuts. Both instructions are shown below U-Clips • On the driver’s side, place one M6 clip-on U-nut in each of the two locations shown. -
Page 10: Plus Nuts
Instructions – 40669TH Plus Nuts • Press the assembled partition with wings firmly against the “B” pillar and the top wing across the roof support of the van. • Mark the holes shown. MARK NOTE: Ensure this is the location of where you want the partition to be installed. -
Page 11: Step 10 - Install Passenger Wing To "B" Pillar
Instructions – 40669TH • Using 1/4" x 1-1/4” hex heads, 1/4" lock washers, and 1/4" flat washers, bolt partition into plus nuts. • Snug tighten but allow for movement. Step 10 – Install Passenger Wing to “B” Pillar • Using M6 x 25mm hex heads, 1/4” lock washers, and 1/4"... -
Page 12: Step 12 - Install Top Wing To "B" Pillar
Instructions – 40669TH Step 12 – Install Top Wing to “B” Pillar Always ensure, when installing hardware through any installation surface, the area behind the installation surface is clear of fuel tanks or lines, electrical wiring or vehicle safety features. -
Page 13: Step 13 - Install Wings To D-Ring Holes
Instructions – 40669TH • Use 5/16” x 1” self tapping screws, secure the remaining three locations along the wings to each “B” Pillar. Use 5/16” x 1” self- tapping screws here. Step 13 – Install Wings to D-ring Holes •...
