System Power

Wire Range:
12 to 16 AWG (ferrule diameter: 2.053 mm to 1.291 mm)
Wire Strip Length: 10 mm

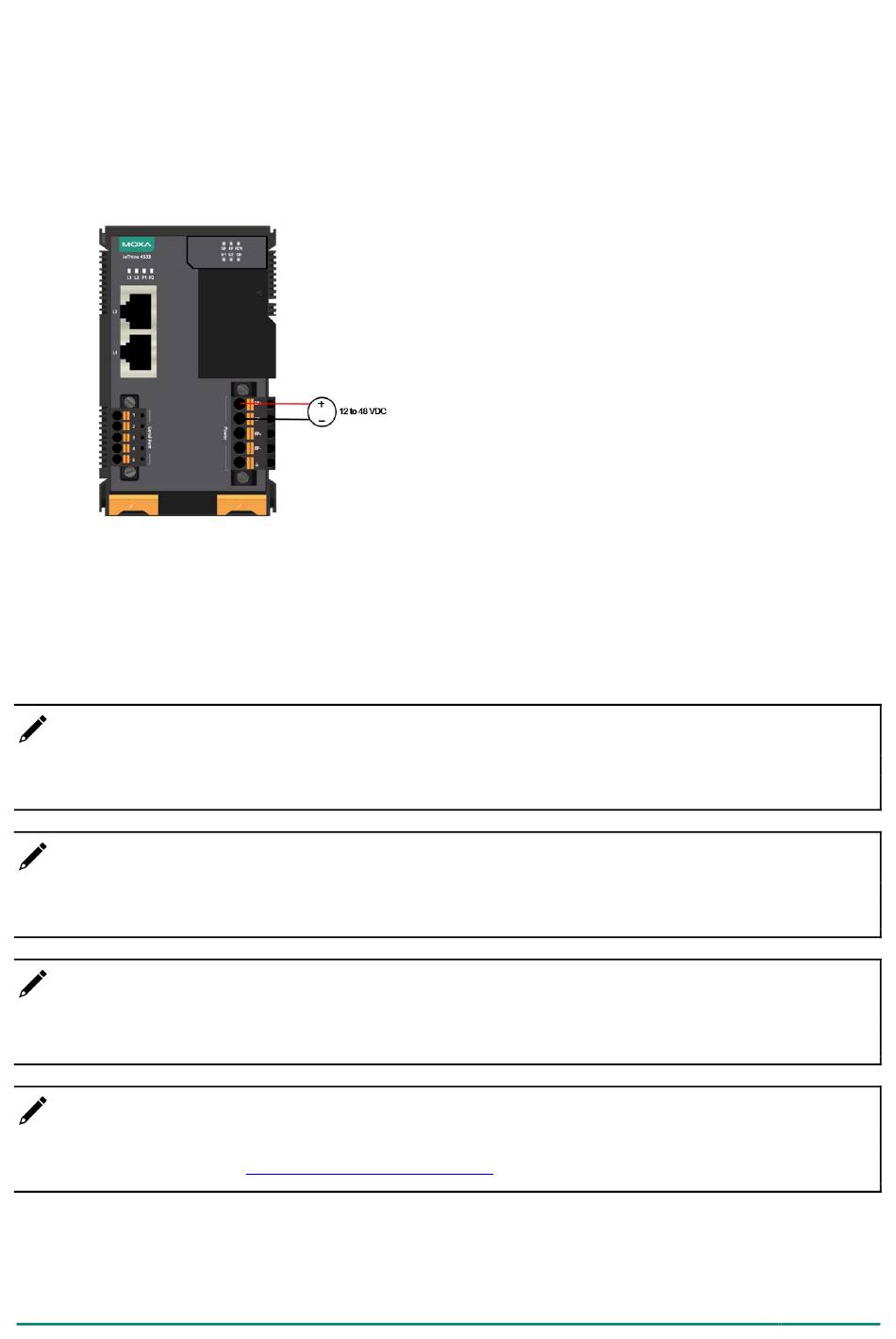

This device requires a 12 to 48 VDC system power input. The system power powers this device and the
expansion modules via an internal bus, which is galvanically connected to the system power supply.
The amount of system current required to support an expansion module is 1 A. If more modules and more
power consumption is needed, an additional power module (45MR-7210) is required. Below is an example:
10 x 45MR-1600 (59.4 mA) = 594 mA
•
5 x 45MR-3810 (187 mA) = 935 mA
•
The total system current is 1.529 A, which is greater than 1 A. Therefore, an additional 45MR-7210 is
needed.
NOTE
Install the 45MR-7210 to the left-hand side of the module where the power consumption would be
exceeded.
NOTE
When booting up the device in a low temperature environment, it may take up to two minutes until the
device is up and running.
NOTE
To avoid damaging your devices, reset all power supplies connected to this device and 45MR-7210
modules at the same time.
NOTE
Click the following link to see how many 45MR-7210 power modules you will need to support your ioThinx
4500 Series project:
ioThinx 4530 Series Hardware User Manual
http://iothinxcalculator.moxa.com
