Serial Console (Debug Port)

The serial console gives users a convenient way of connecting to the programmable controllers. This method
is particularly useful when using the computer for the first time. The serial console is also effective for
connecting to the Moxa programmable controllers when you do not know target network settings and IP
addresses.
Step 1:
Open the card cover.

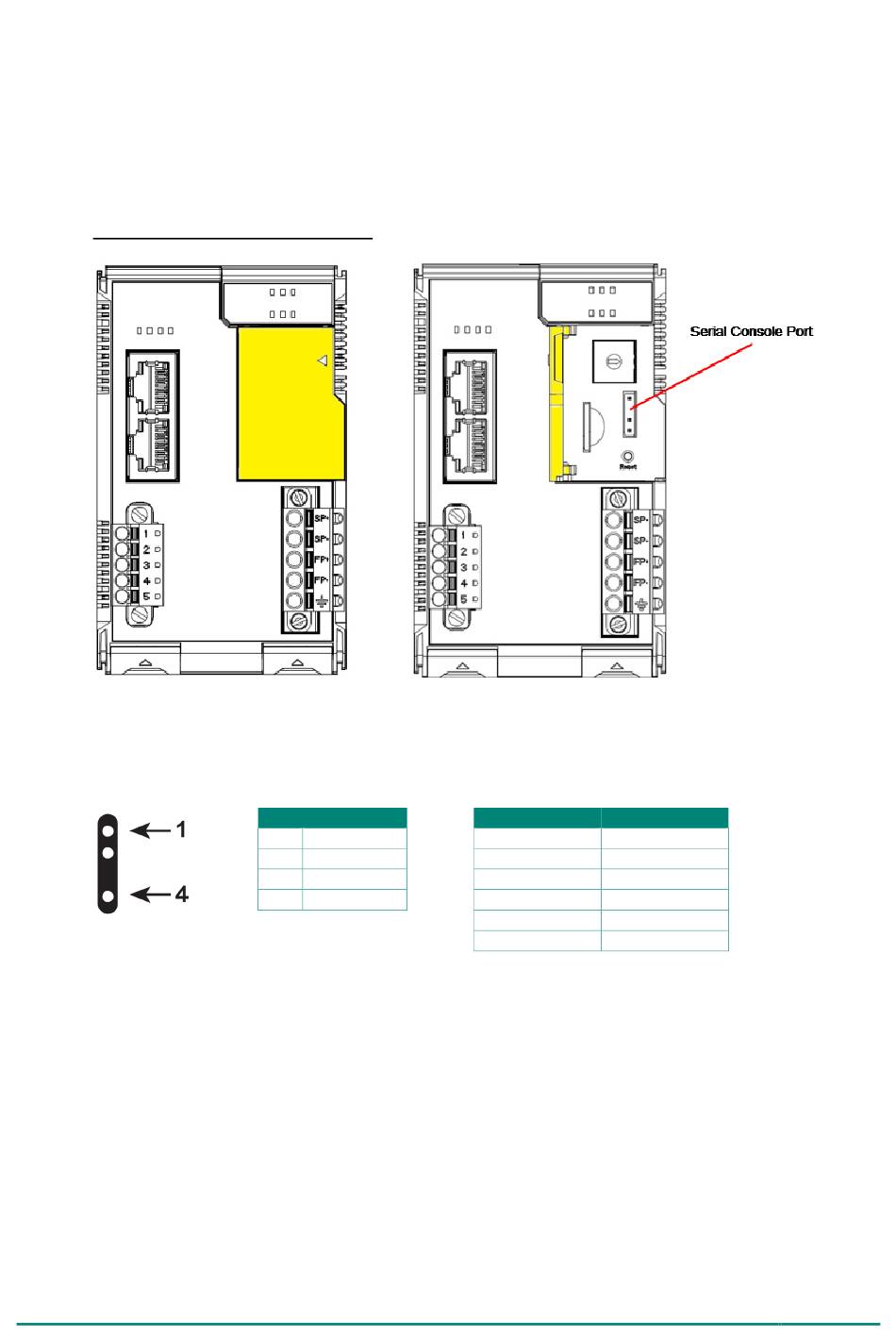

Console port for the ioThinx Series
Step 2:
Attach the 4-pin serial console cable to the console port. The following diagram shows the 4-pin serial
connector and pin connections.
Pin Assignment for the Serial Console Port
ioThinx 4530 Series Hardware User Manual
Pin Definition
1 TxD
2 RxD
3 NC
4 GND
Serial Console Default Settings
Parameter Value
Baudrate 115200 bps
Parity None
Data bits 8
Stop bits 1
Flow Control None
Terminal VT100
