Disconnect the RPS Cable and the AC Power Cord
2. Disconnect the RPS cable from the rear panel of the RPS and the rear panel of the
switch.

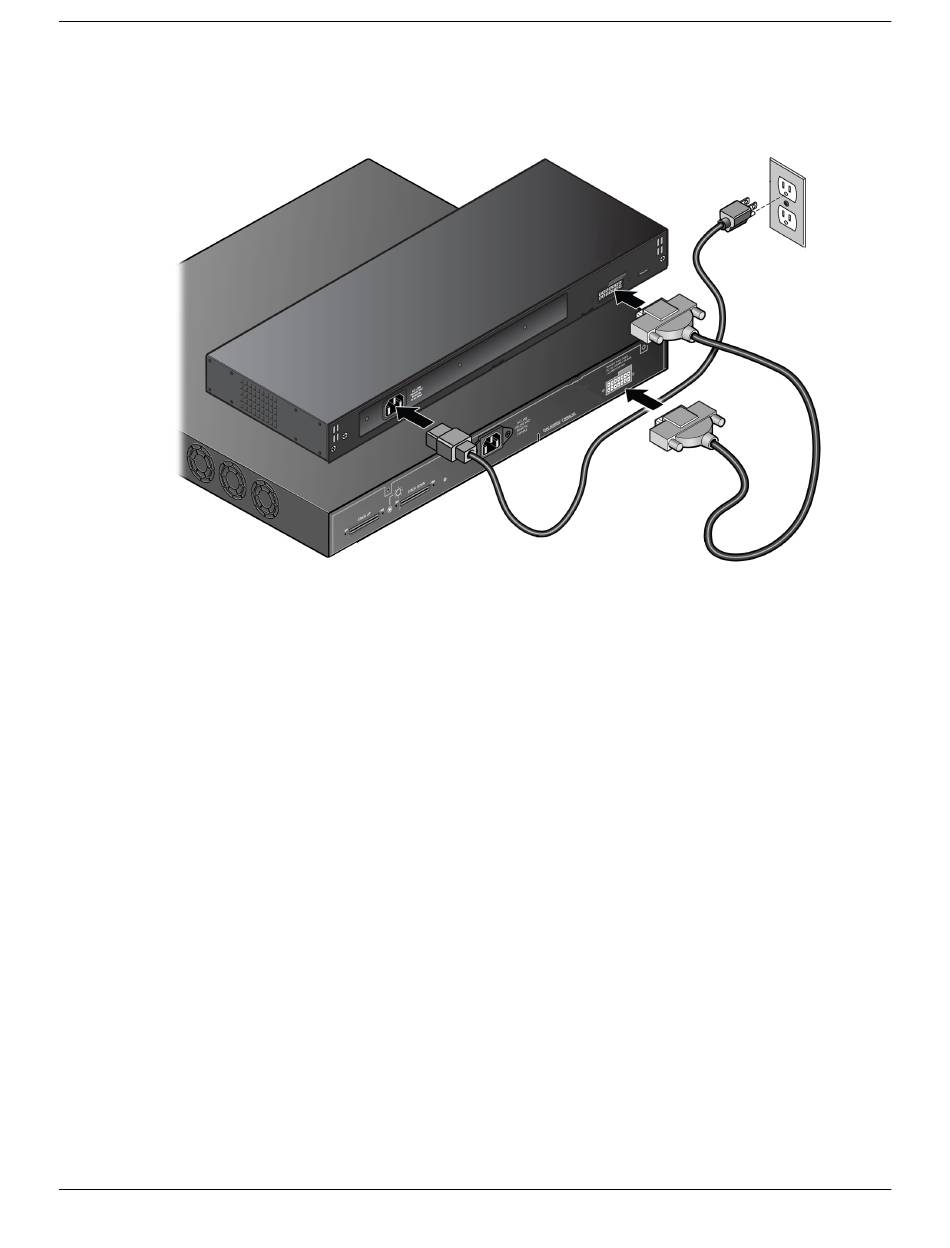

Figure 62: RPS cable and AC Power Cord Connection
The AC power LED on the rear of the RPS turns off to indicate that the power to the
RPS has been disconnected.
