2| Product description
2.1
Short description
• Semi-hermetic six-cylinder reciprocating compressor with suction-gas cooled drive motor.
• The stream of refrigerant sucked out of the evaporator flows over the motor and cools it
intensively. In this way, the motor can be kept at a relatively low temperature level, particularly
under high loads.
Terminal box
Discharge
shut-off valve
Valve plate
US
Oil pump
Dimension and connection values can be found in chapter 10.
6 | AQ450438640296en-US0301

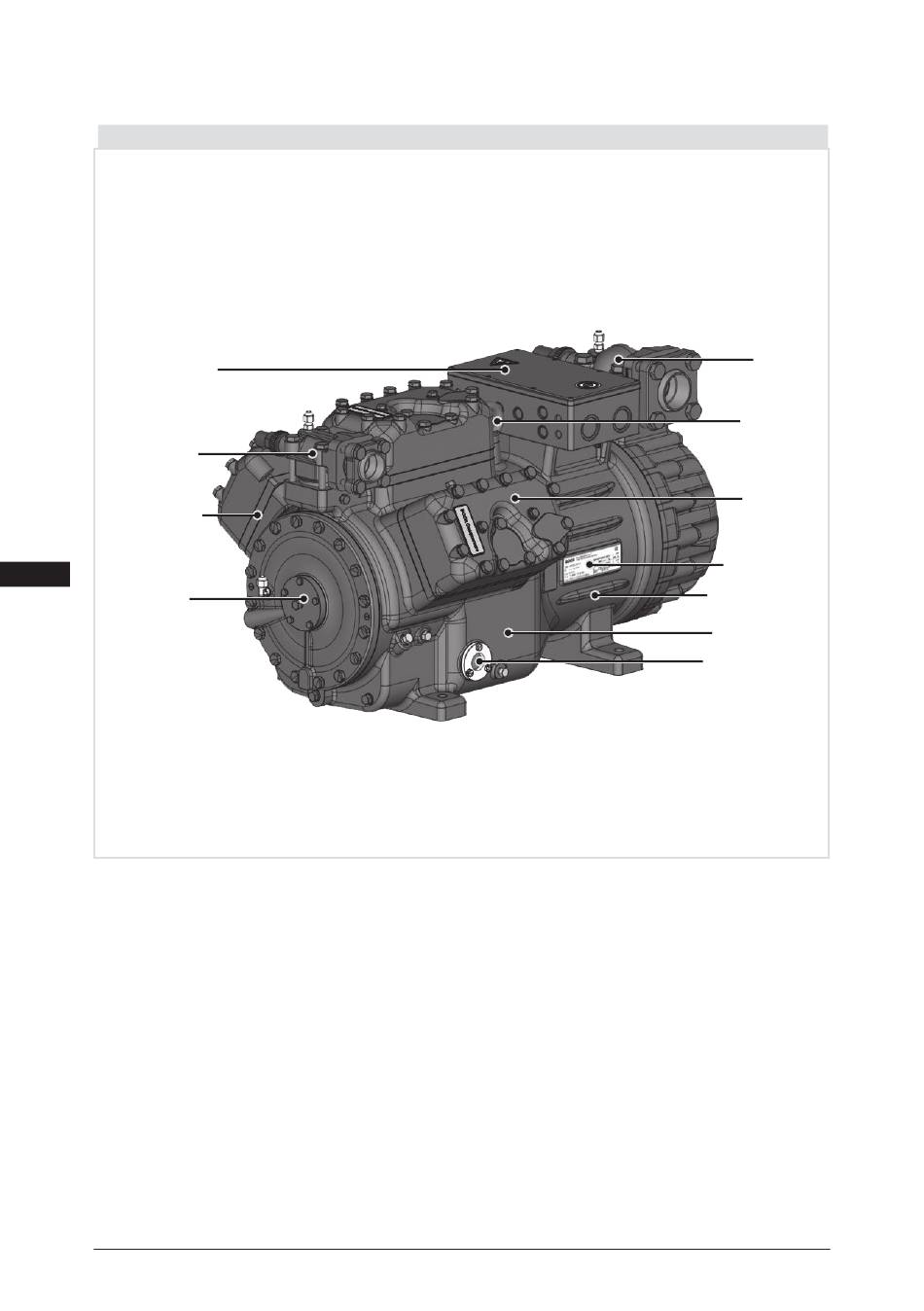

Fig. 1
shut-off valve
Transport
Cylinder
Name plate
Motor section
Drive section
Oil sight glass
© Danfoss | Climate Solutions | 2024.04
Suction
eyelet
cover
