8| Accessories

8.3

Oil level regulator

Oil level regulation systems have proven themselves with parallel circuits of several compressors. The

connection "0" is provided for installing an oil level regulator (see dimensions drawing). All common

mechanical oil level regulators from AC&R, ESK, Carly as well as the electronic oil level regulation

system from AC&R, Teklab, OM3 TraxOil from Alco and ESK (only long version) can be connected

directly without adapters (see Fig. 22). A sight glass on the oil level regulator is not required.

The assembly is made at the original position of the standard sight glass (see Fig. 22).

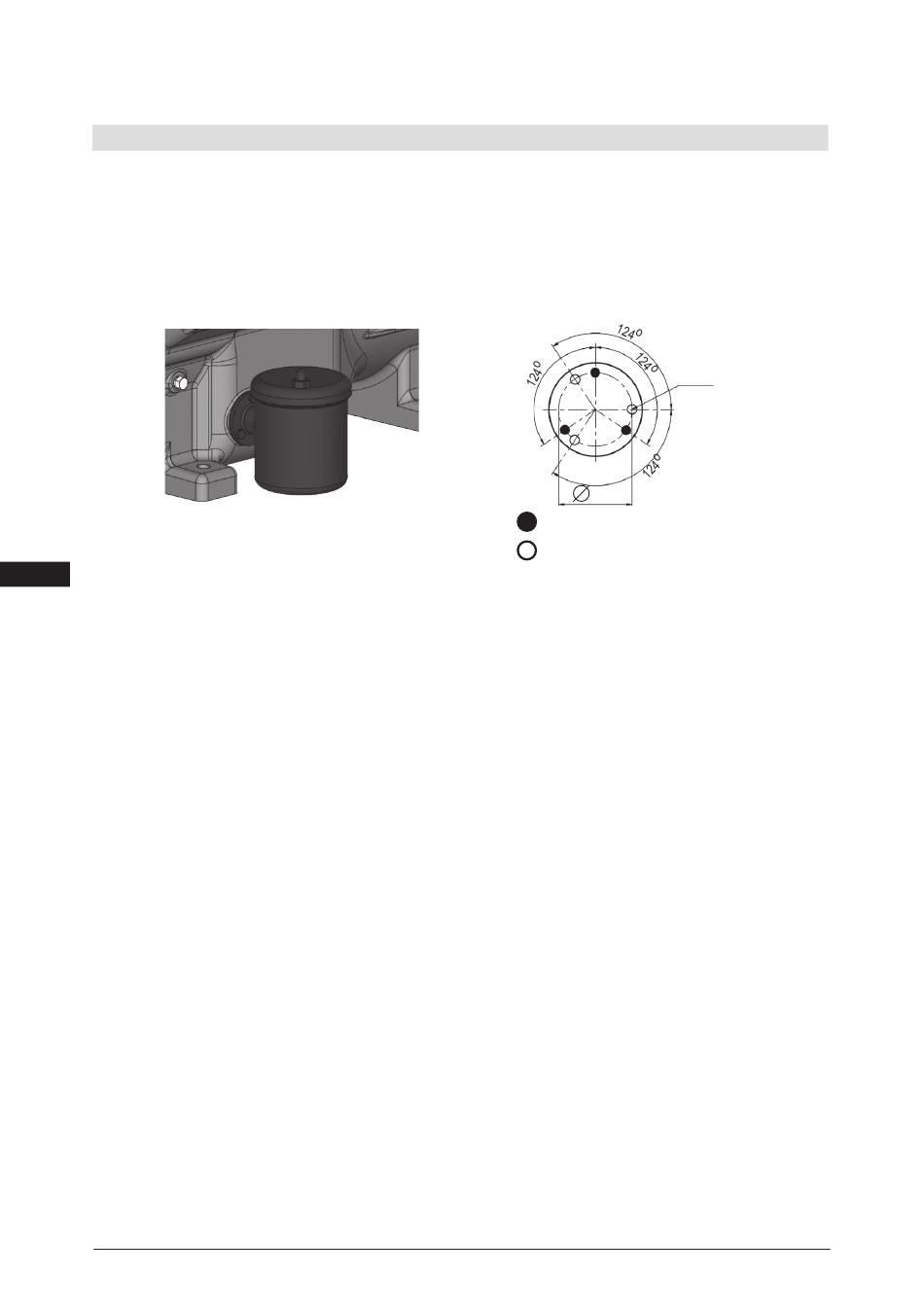

Mechanical oil level regulator

at the "O" connection

30 | AQ450438640296en-US0301

Fig. 22

3 hole connection diagram for

3-Loch-Anschlussbild für ESK,

ESK, AC&R and CARLY

AC&R und CARLY

3 hole diagram for TraxOil

3-Loch-Anschlussbild für TraxOil

M6 x 10

3 times each

je 3 mal

Fig. 23

47,6
