Scroll compressors, DSG240 to DSG480 | Introduction

Introduction

Product description

DSG series scroll compressor bene t from an improved design to achieve the highest e ciency and increased life
time.

Cut Away DSG240-480

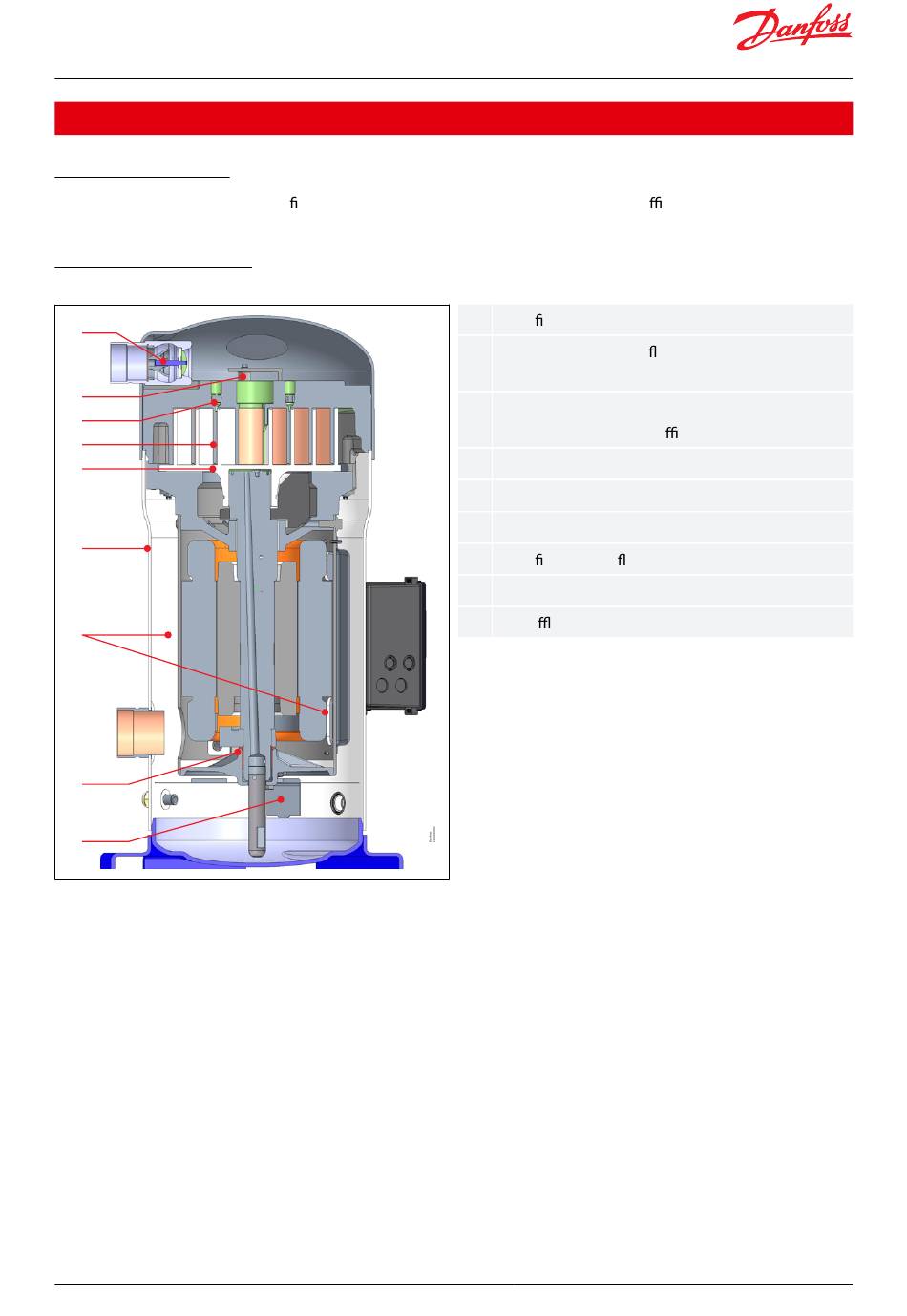

Figure 1: Cut Away DSG240-480
1
2
3
4
5
6
7
8
9
© Danfoss | Climate Solutions | 2023.01
1 Speci c internal non return valve : ZNRV
2 Discharge port gas de ector lowers the sound
level
3 New generation of intermediate discharge valve
increase the seasonnal e ciency
4 High slenderness wrap for compactness
5 Orbital disk for compactness
6 Flared and stratched midshell
7 Speci c gas path ow
8 Flanged polymer bearing for better reliability
9 Oil ba e
