Scroll compressors, DSF090 to DSF530 | Introduction

Introduction

Product description

DSF series scroll compressor benefit from an improved design to achieve the highest efficiency and increased life
time.

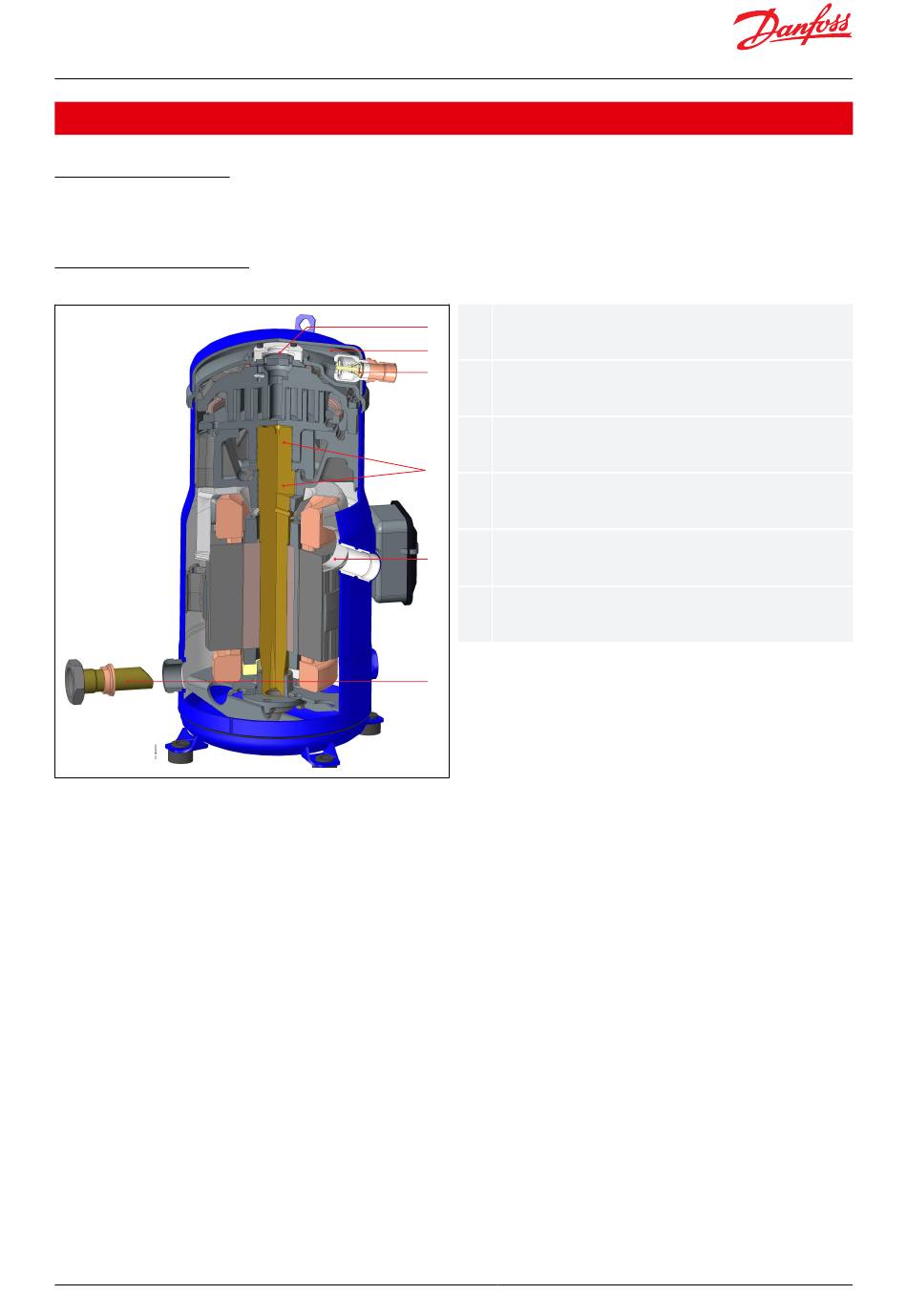

Cut Away DSF090-200

Figure 1: Cut Away DSF090-200
© Danfoss | Climate Solutions | 2023.06
1 Intermediate discharge valves (IDVs) increase
1
seasonal efficiency
2
3
2 Heat shield lowers the heat transfer between
discharge and suction gas and the sound level
3 Internal Non Return Valve (INRV) prevents
excessive leak rate from high pressure side
4
4 Lead free polymer bearings improve behavior
under poor lubrication conditions
5 Patented motor cap for optimal motor cooling and
5
higher resistance to liquid slugging
6 Organ pipe masters oil circulation in manifold
configuration.
6
AB309735209512en-000603 | 6
