3.3.4
PMC I/O Signals
The I/O signals of PMC Slots 1 and 2 of the CPU board are routed to two 64-pin connectors.
Figure 8
and
Figure 8.

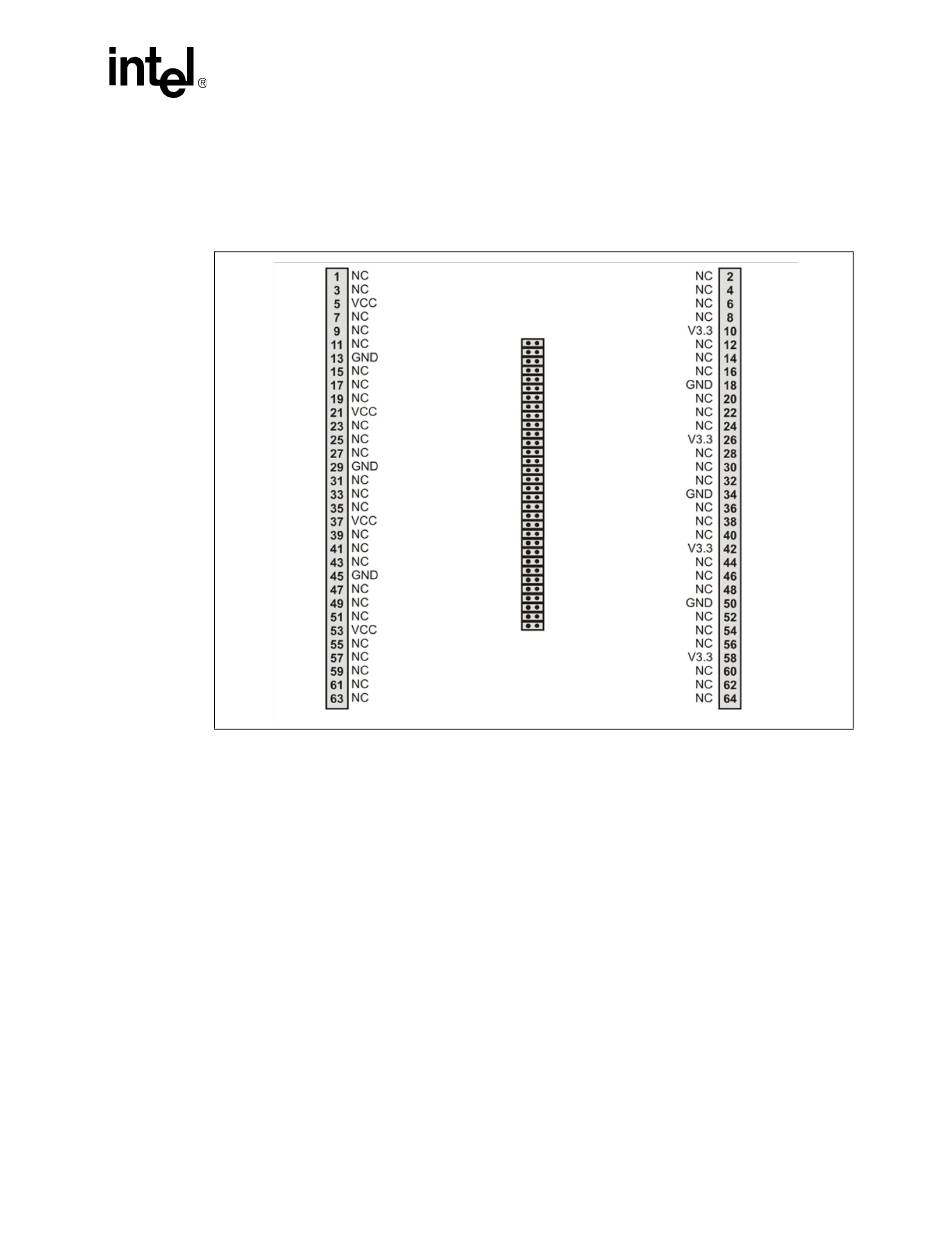

PMC 1 Connector Pinout
®
Intel
NetStructure™ MPRTM4808 Rear Transition Board Installation Guide
Download from Www.Somanuals.com. All Manuals Search And Download.
Figure 9
show the pinouts.
Installation
15
