3.4
Switch Settings
Caution: The Intel MPRTM4808 board provides two on-board switches and one FP reset switch. The
switches must be set to OFF to avoid damage to attached PMC modules.

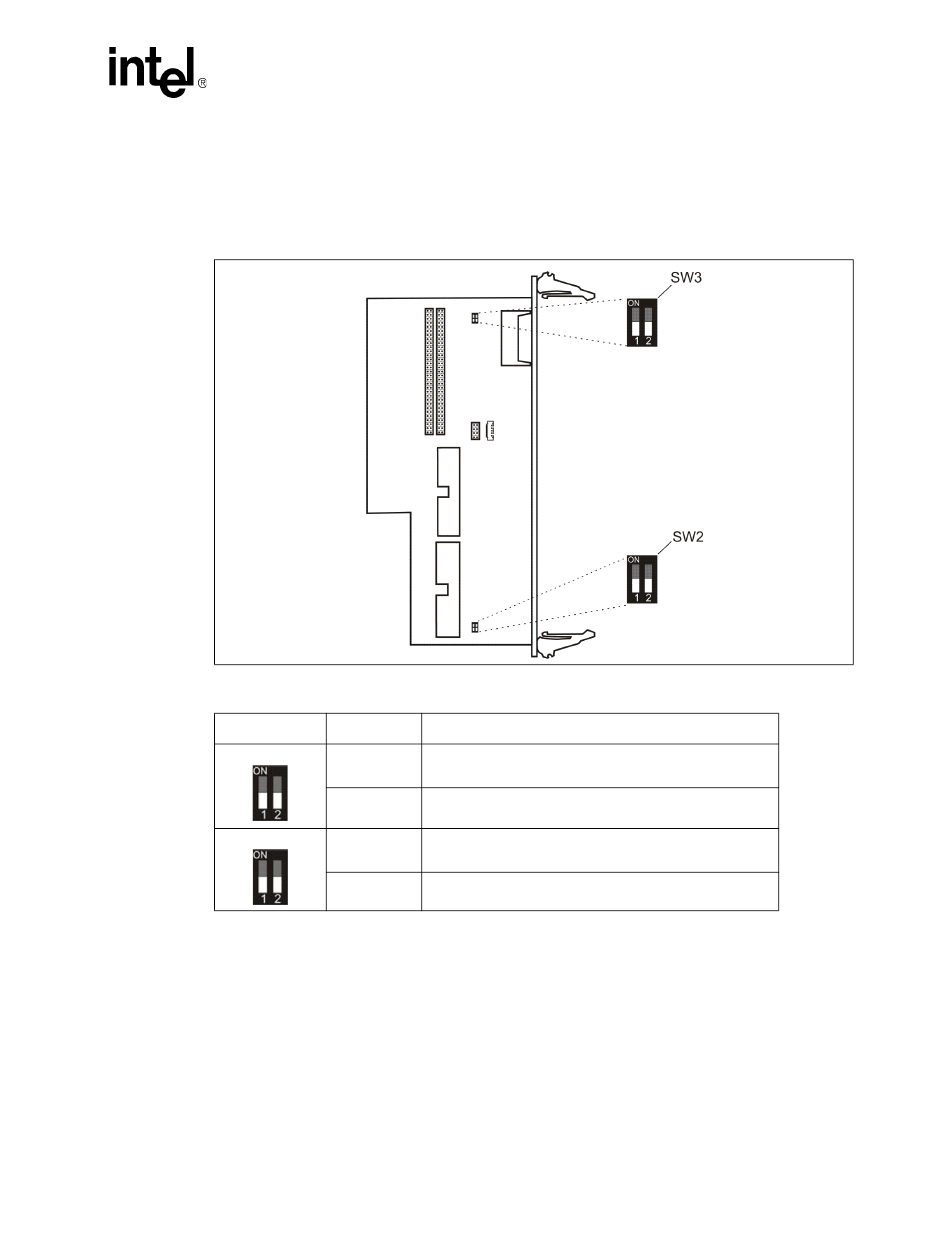

Figure 10.
Location of Switches
Table 3.
Switch Settings
Switch
SW2
SW3
3.5
Installing and Removing the Board
Caution:
•
To prevent board damange, install and use the Intel MPRTM4808 board only with CPU boards
especially designed for it.
•
Always turn off system power before installation or removal of the Intel MPRTM4808 board.
•
Use only the backplane's rear slot position.
®
Intel
NetStructure™ MPRTM4808 Rear Transition Board Installation Guide
Download from Www.Somanuals.com. All Manuals Search And Download.
No.
ON: Reset disabled
1
OFF: RESET enabled(default)
2
Reserved, must be OFF (default)
ON: Flash disk is master
1
OFF: Flash disk is slave (default)
2
Reserved, must be OFF (default)
Description
Installation
17
