PANEL DESCRIPTION

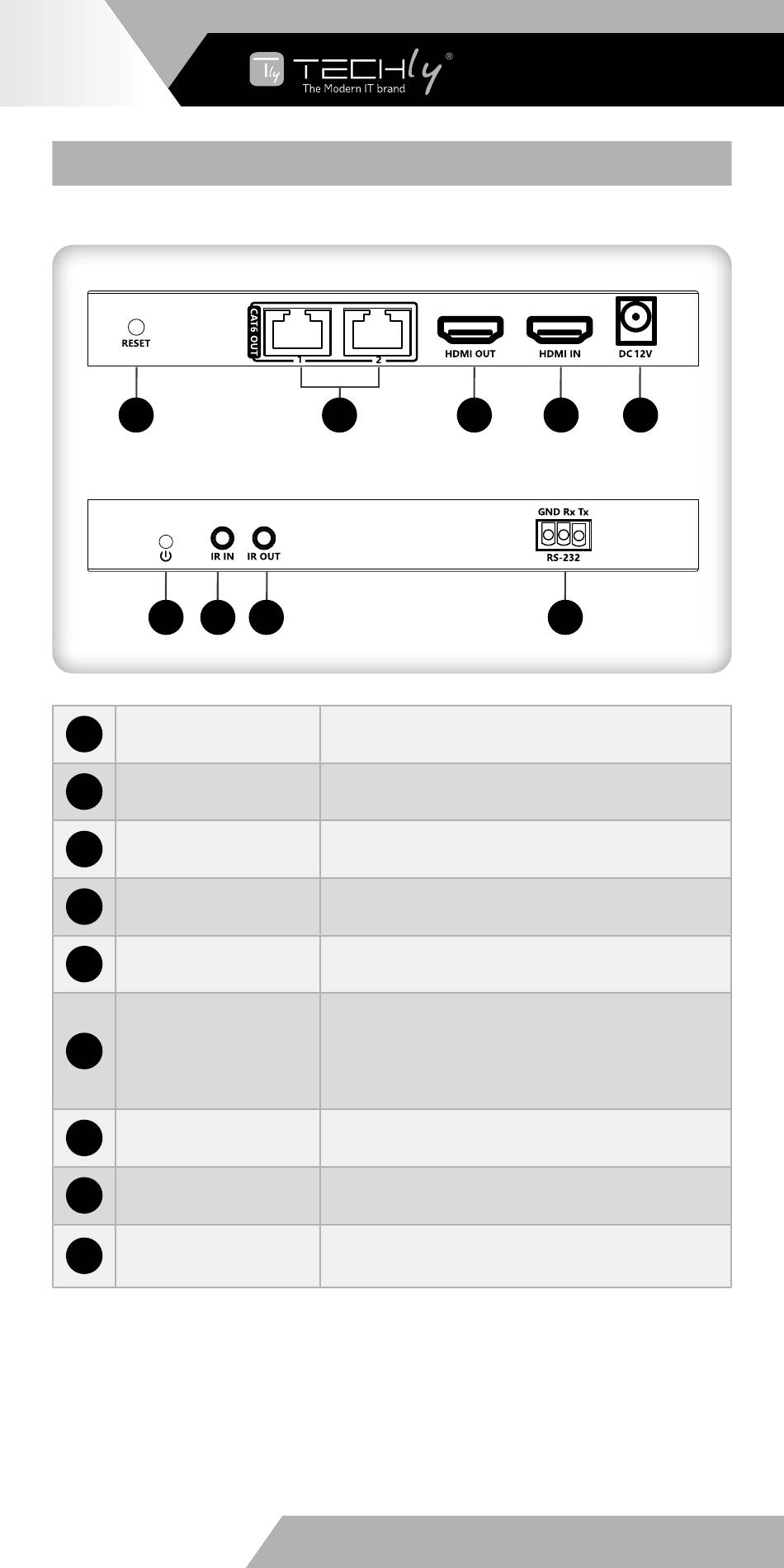

Transmitter unit (TX)
1
6
1
Reset button
2
RJ45 signal output
3
HDMI output
4
HDMI input
5
Power input
6
Power indicator
7
IR in
8
IR out
9
RS-232
WWW.TECHLY.COM
2
7 8
Press to restard the device
Connect with Cat.6/6A/7 network cable
Connect with HDMI display device
Connect with HDMI source
Connect with DC12V /1A power adapter
a. when power is on and no HDMI signal is
transmitted, the indicator flashes
b. when power is on and HDMI signal is
transmitted, the indicator is always on
Connect with IR receiver extension cable
Connect with IR blaster extension cable
Connect to a control device (like computer),
input control commands for management
1x2 HDMI SPLITTER
WITH EXTENDER POC
