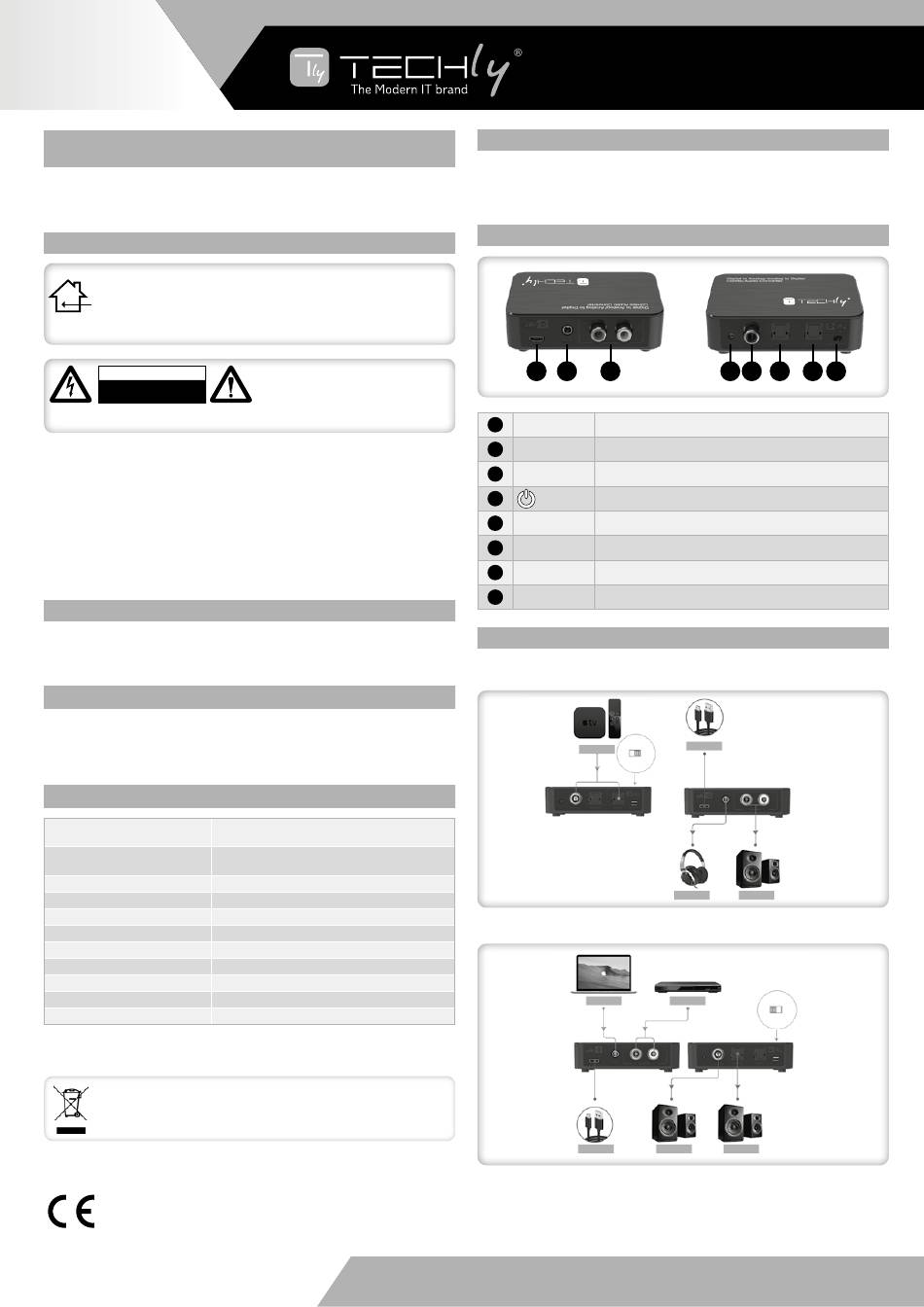

Techly IDATA SPDIF-10 Quick Start Manual

EN
DIGITAL TO ANALOG / ANALOG TO DIGITAL COMBO
AUDIO CONVERTER
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this
manual for future reference.
IMPORTANT SAFETY INSTRUCTION
INTENDED USE
We do not permit using the device in other ways like described in this user's manual.
Use the product only in dry interior rooms. Not attending to these regulations and
safety instruction might cause fatal accidents, injuries, and damages to persons
and property. The manufacturer/supplier assumes no liability for damages caused by failure to
comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
equipment if a problem should occur. Do not expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts which
can be swallowed and can injure when used inappropriately! • Please install the system and
devices attached to it in a way that persons cannot be injured, or objects not be damaged for
example by dropping or stumbling. • Please remove the packing materials, because children may
cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalation of
incidentals and insulating material. • Avoid places with high temperatures, or humidity, or
places which might come into contact with water. Do not install the product close to openings
of air conditioners, or at places with an excessive amount of dust or smoke. • Do not install the
product at places subject to vibration, or oscillation • Do not modify and alter the product and any
accessories! Do not use any damaged parts. • Keep enough space around all devices for a good
ventilation and free motion and to avoid damages. • Do not unplug the device when it is in using,
keep distance from flammable and explosive devices.
INTRODUCTION

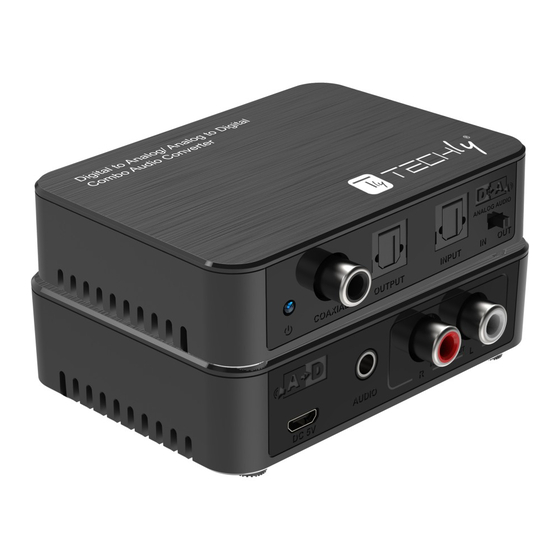

This Digital to Analog/Analog to Digital Combo Audio Converter is Converter is designed for either
home or professional audio switching It convert coaxial or optical digital audio input to analog
stereo output over RCA or 3.5mm, and also can convert analog audio signals to digital audio
signals, it can convert in either direction.
FEATURES
• Supports coaxial or optical digital audio to analog stereo audio
• Supports analog stereo audio to coaxial or optical digital audio
• Supports 2 channels LPCM digital audio signal output
• Supports sampling rate at 44.1 KHz, 48 KHz, 96 KHz
• Plug and play
SPECIFICATION
Coaxial/Toslink digital audio, 3.5mm stereo and R/L
Input Audio
analog audio
Coaxial/Toslink digital audio, 3.5mm stereo and R/L
Output Audio
analog audio
Sampling Rate
32, 44.1, 48 ,64,88.2and 96 KHz
Size (L-W-H)
87x62x25mm
N.W.
53g
Operating Temperature
0°C to +60°C
Operating Humidity
10% to 85% RH (no condensation)
Storage Temperature
-10°C to +80°C
Storage Humidity
5% to 90% RH (no condensation)
Power Consumption
1 watts (Max)
Powered By Micro USB power cable
This product is marked with this symbol. It means that used electrical and electronic
products should not be mixed with general household waste. There is a separate
collections system for these products in compliance with EU Directive WEEE.
With the CE sign, Techly
®
European standards and directives.
WWW.TECHLY.COM
To reduce risk of electric shock, this product
should ONLY be opened by an authorized
technician when service is
Disconnect the product from mains and other
ensures that the product is conformed to the basic
DIGITAL TO ANALOG / ANALOG TO DIGITAL
PACKAGE CONTENTS
Please check following parts are included in the package:
• Main Unit Combo Audio Converter
• Micro USB power cable
• User Manual
PANEL DESCRIPTION
1 2
required.
1 DC 5V
2
AUDIO
3 R / L
4
5
COAXIAL
6 OUTPUT
7 INPUT
8
IN / OUT
CONNECTION AND OPERATION
Mode one:
Digital to Analog (Switch: Analog Audio OUT)
Coaxial
or
Optical Input
Mode two:
Analog to Digital ( Switch: Analog Audio IN )
Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes and modifications of the
product or damage caused due to incorrect use of this product.
COMBO AUDIO CONVERTER
3 4 5
Input DC 5V power (micro-USB)
Input / Output 3.5mm analog audio signals
Input / Output: R / L analog audio signals
LED indicates the power status of the device
Input / Output coaxial digital audio signals
Output optical digital audio signals
Input optical digital audio signals
Switch to change input and output
ANALOG
AUDIO
Power
TV BOX
IN OUT
3.5mm
(Output)
Headphone Amplifier
Laptop Laptop
3.5mm or R/L (Input)
and/or Coaxial Optical
(Output) (Output)
Power Amplifier Amplifier
6 7 8
R/L
(Output)
ANALOG
AUDIO
ANALOG AUDIO
IN OUT
IN OUT
