1x2 HDMI SPLITTER
WITH EXTENDER POC

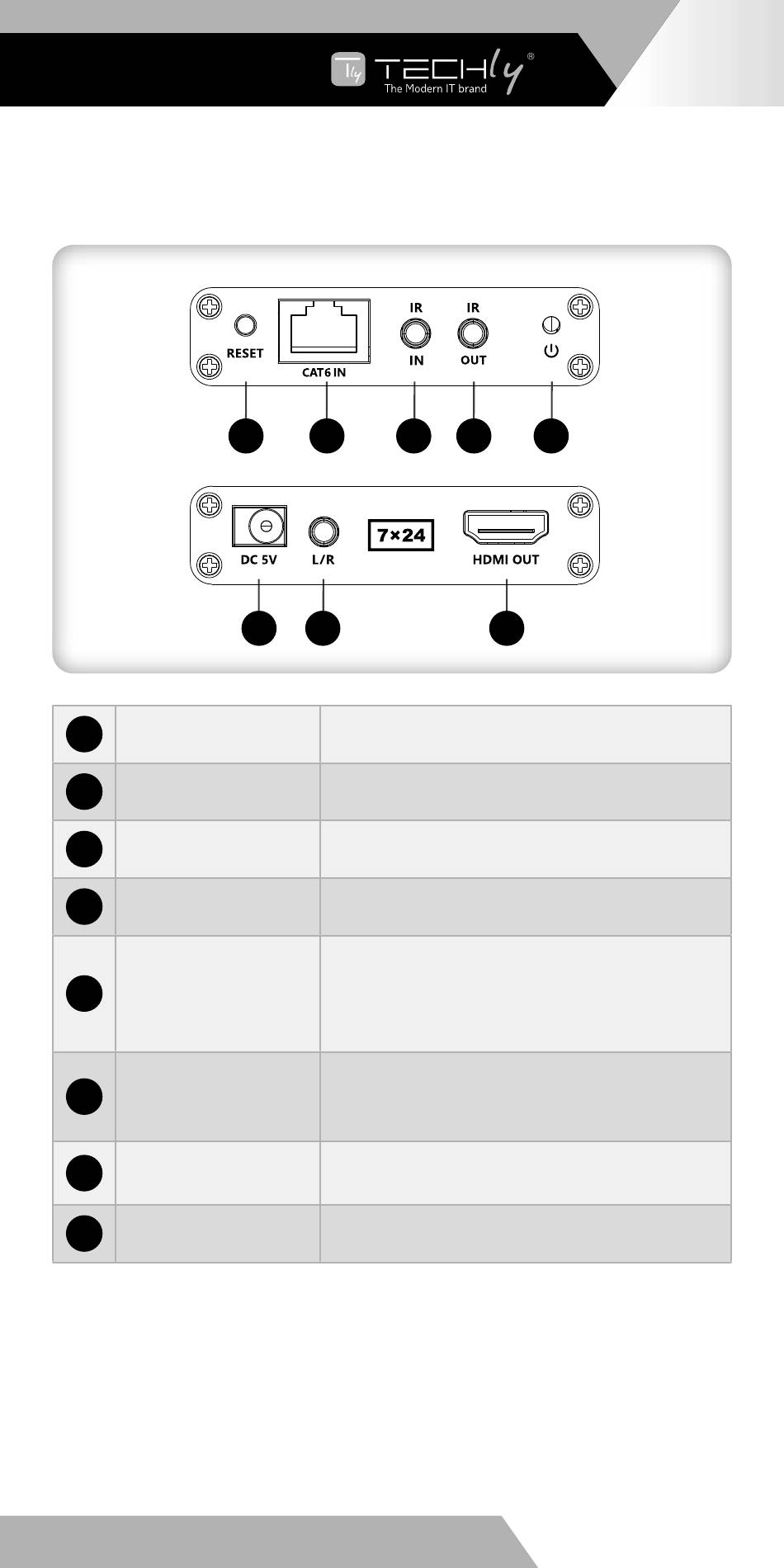

Receiver unit (RX)
1
Reset button
2
RJ45 signal input
3
IR In
4
IR Out
5
Power indicator
6
Power input
7
3.5mm L/R out
8
HDMI output
1 2
6 7
Press to restard the device
Connect with Cat.6/6A/7 network cable
Connect with IR receiver extension cable
Connect with IR blaster extension cable
a. when power is on and no HDMI signal is
transmitted, the indicator flashes
b. when power is on and HDMI signal is
transmitted, the indicator is always on
Connect with DC12V /1A power adapter (no
need to connected when the transmitter is
powered)
Connect headphones or power amplifiers to
output stereo audio
Connect with HDMI display device
3 4 5
8
