EN - 6
INSTALLATION PROCEDURES
How to make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue
5-Blue/white
6-Green
7-Brown/white
8-Brown

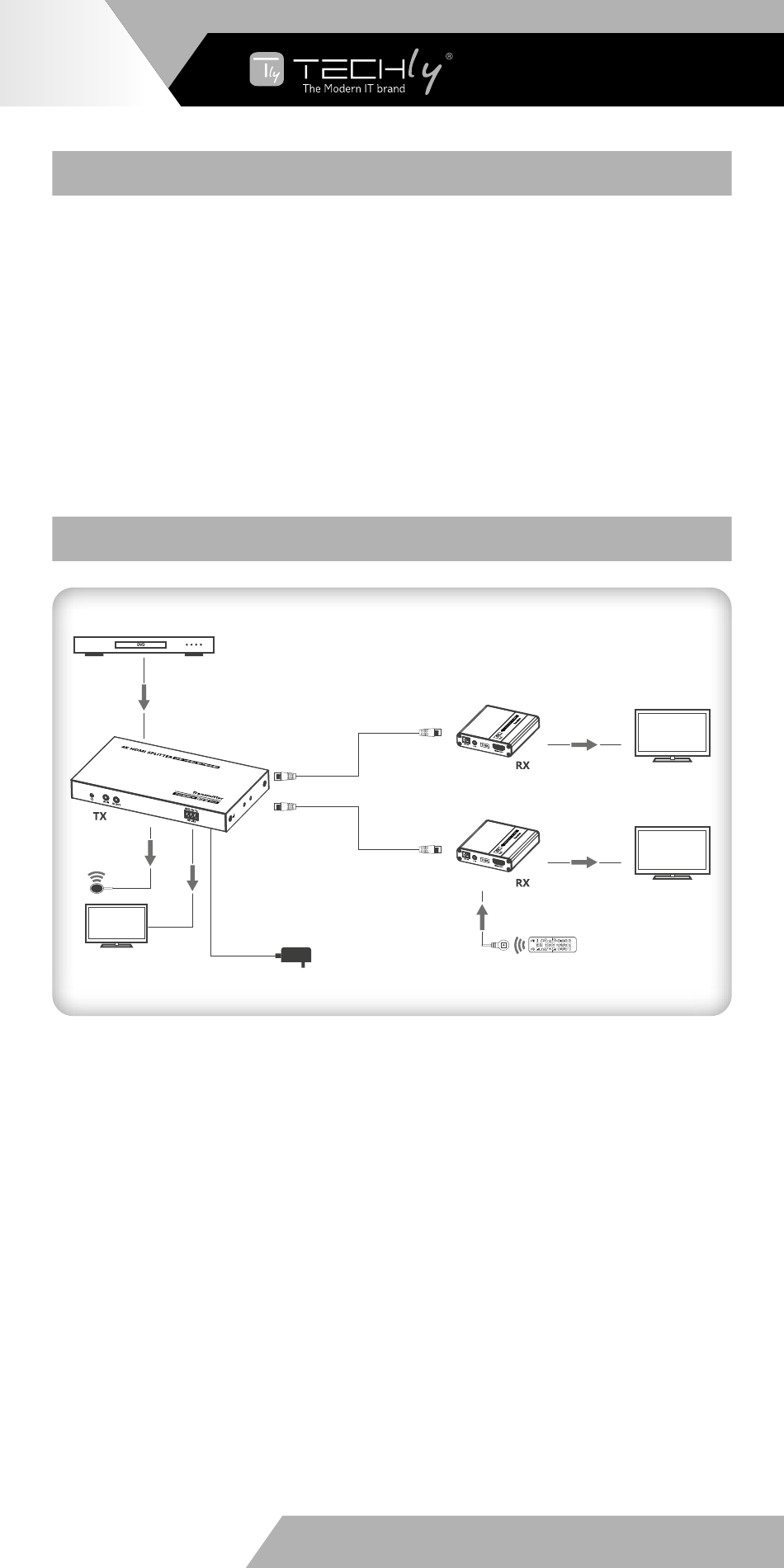

CONNECTION DIAGRAM
Video Source
HDMI IN
HDMI Display
Connection instructions
1) Connect the source device to the HDMI IN port of the transmitter with an HDMI
cable and the HDMI OUT port of the receiver to the display device with another
HDMI cable
2) Use a Cat. 6/6A/7 cable to connect the RJ45 port of the transmitter and
receiver
3) If using the HDMI loop out, connect the display device to the HDMI OUT port of the
transmitter
4) If using the IR passthrough, the IR blaster extension cable should plug in the IR
OUT port, the IR receiver extension cable should plug in the IR IN port
5) If you need to output audio additionally, connect the speaker to the L/R port of the
receiver with 3.5mm stereo audio cable
6) If you need to use RS-232 command control, connect the RS-232 port to the
control device
7) Plug the power supply into the device to get started
WWW.TECHLY.COM
Network
Cable
Power
1x2 HDMI SPLITTER
WITH EXTENDER POC
HDMI OUT
HDMI Display
HDMI OUT
HDMI Display
