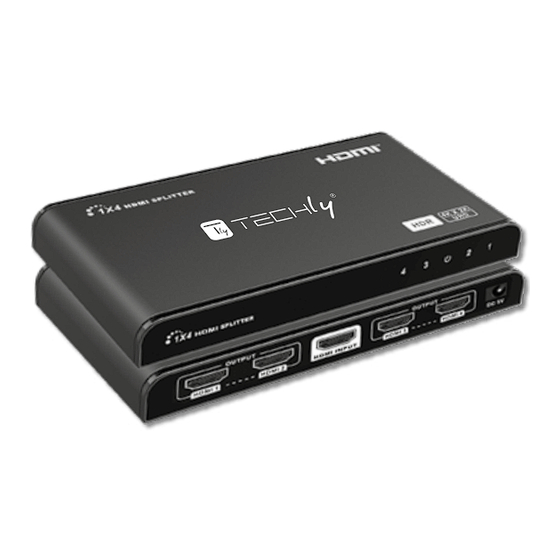

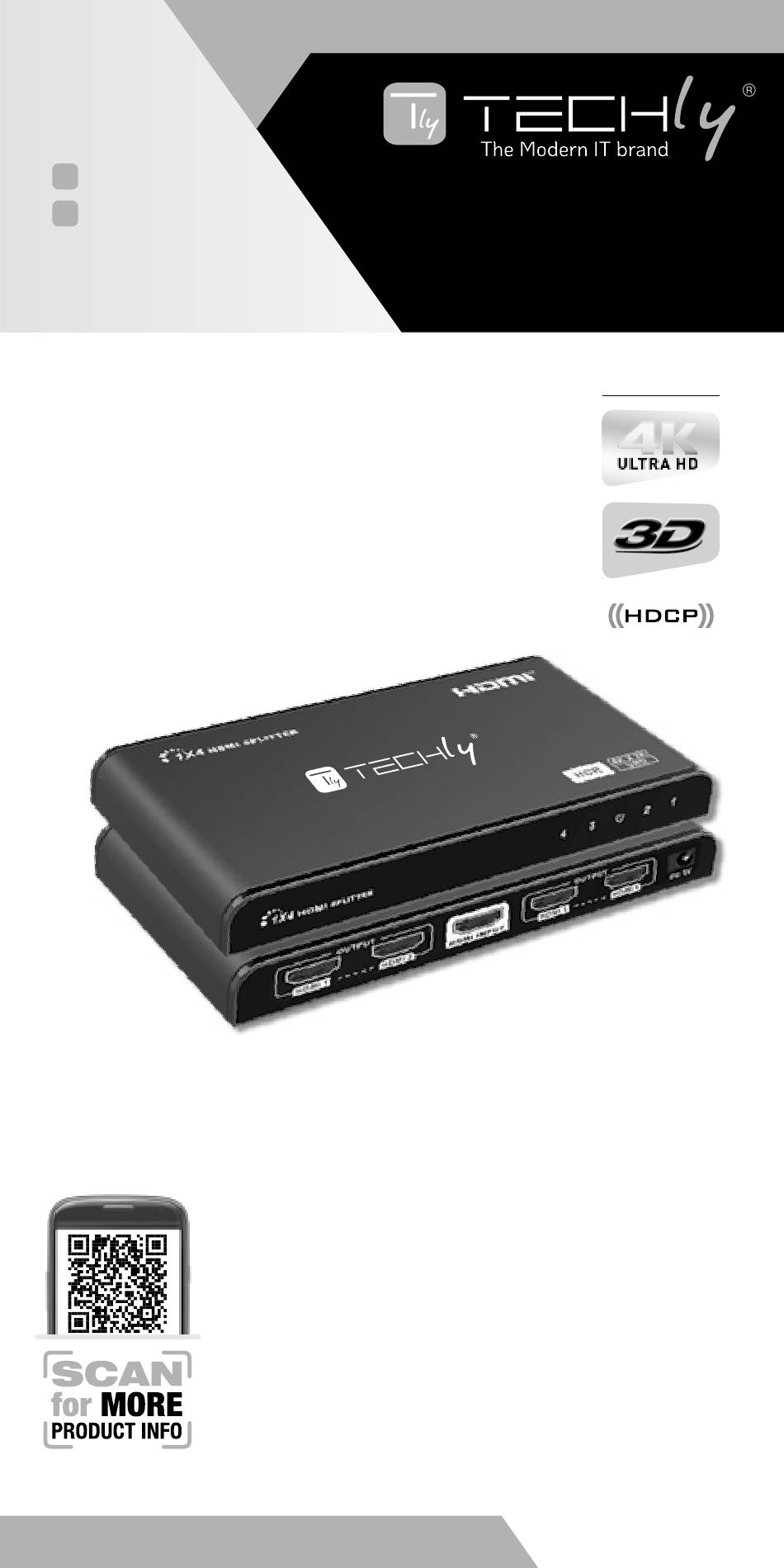

- Page 1 User's Manual 1X4 HDMI SPLITTER Manuale d’istruzione 4K@60HZ HDR Technical features P/N: IDATA HDMI2-4K4 8054529023981 WWW.TECHLY.COM...
-
Page 2: Safety Notes
• Keep product away from strong static and magnetic environment. INTRODUCTION 1x4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously. Apply for STB, DVD, Media Player, Laptop, D-VHS and other HD- Player devices. It's compatible with HDMI 3D and 4Kx2K. WWW.TECHLY.COM... -
Page 3: Package Contents
1. Source: HDMI video source, such as DVD, PS3, STB, PC, Etc. 2. Display: HDTV, projector or other display with HDMI port 3. Cable: High speed standard HDMI cable (can support 4Kx2K@60Hz) PANEL DESCRIPTION HDMI Output HDMI Input HDMI Output Power Input Ports Ports Ports (DC5V/1A) Output Output Power Indicator WWW.TECHLY.COM... -
Page 4: Interface Specification
A: 1) Check and make sure all connections are good and correct. 2) Try to directly connect HDMI source to display, if it is the same, please change the source device. 3) Use high-quality HDMI 1.4 and HDMI 2.0 cable for transmitting 4K×2K@60Hz signal. WWW.TECHLY.COM... -
Page 5: Specification
Support standard audio and DSD Support audio format (Direct Stream Digital) and HD (HBR) audio Supported Working temperature 0°C – 60°C Power supply DC5V/1A Power consumption <3W Dimension 158mm (W) x 80mm (D) x 17 mm (H) Weight 200g Color Black WWW.TECHLY.COM... - Page 6 There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment. With the CE sign, Techly ensures that the product ® is conformed to the basic European standards and directives.
-
Page 7: Informazioni Di Sicurezza
Questa apparecchiatura è uno splitter HDMI che permette di distribuire lo stesso segnale proveniente da una sorgente HDMI a 4 monitor HDMI contemporaneamente. Utilizzabile con STB, DVD, Media Player, Laptop, D-VHS e altri dispositivi HD-Player. É compatibile con HDMI 3D e 4Kx2K. WWW.TECHLY.COM... -
Page 8: Contenuto Della Confezione
2. Schermo: HDTV, proiettore o altri schermi con porta HDMI 3. Cavo: cavo HDMI High speed standard (che possa supportare 4Kx2K@60Hz) DESCRIZIONE PANNELLO Porte uscita Porta ingresso Porte uscita Ingresso HDMI HDMI HDMI alimentazione (DC5V/1A) Uscita Uscita Indicatore alimentazione WWW.TECHLY.COM... -
Page 9: Installazione E Collegamento
2) Provare a collegare direttamente la sergente HDMI allo schermo, se non si notano miglioramenti, sostituire il dispositivo sorgente. 3) Utilizzare un cavo HDMI 2.0 di ottima qualità per permettere la trasmissione del segnale 4K×2K@60Hz. WWW.TECHLY.COM... - Page 10 Risoluzione HDMI 1080p/4K×2K@24/25/30/60Hz Supporta standard audio e audio DSD Audio (Direct Stream Digital) e HD (HBR) Supportato Temperatura d’esercizio 0°C – 60°C Alimentatore DC5V/1A Consumo <3W Dimensioni 158mm (L) x 80mm (P) x 17 mm (A) Peso 200g Colore Nero WWW.TECHLY.COM...
- Page 11 Contattate le autorità locali competenti per ottenere informazioni in merito allo smaltimento corretto della presente apparecchiatura. Con il marchio CE, Techly garantisce che il prodotto è ® conforme alle norme e direttive europee richieste.
- Page 12 All rights reserved. All trademarks and trade names are those of their respective owners. TECHLY® - Viale Europa 33 33077 Sacile (PN) - Italy WWW.TECHLY.COM...
