Techly IDATA HDMI-EA4K Manual

EN
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V
device use more convenient, more comfortable, more productive and more cost-efficient.
IMPORTANT SAFETY INSTRUCTION
INTENDED USE
We do not permit using the device in other ways like described in this user's manual. Use the
product only in dry interior rooms. Not attending to these regulations and safety instruction
might cause fatal accidents, injuries, and damages to persons and property. The
manufacturer/supplier assumes no liability for damages caused by failure to comply with the
intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts which can be
swallowed and can injure when used inappropriately! • Please install the system and devices attached to it
in a way that persons cannot be injured, or objects not be damaged for example by dropping or stumbling.
• Please remove the packing materials, because children may cut themselves on them while playing.
Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material. • Avoid
places with high temperatures, or humidity, or places which might come into contact with water. Do not
install the product close to openings of air conditioners, or at places with an excessive amount of dust or
smoke. • Do not install the product at places subject to vibration, or oscillation. • Do not modify and alter the
product and any accessories! Do not use any damaged parts. • Keep enough space around all devices for a
good ventilation and free motion and to avoid damages. • Do not unplug the device when it is in using, keep
distance from flammable and explosive devices. • Power supply: DC 5V, usage only the supplied power unit,
do not use the power supply if it is damaged.
INTRODUCTION
The HDMI 18Gbps Audio Extractor allows you to extract audio signals from your HDMI source to digital
optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up
to 4K2K@50/60Hz (YUV4:4:4). It supports 10bits HDR pass though and HDMI high resolution digital audio
formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio
sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
APPLICATIONS
• Game entertainment on monitor
• Extend your audio signal
PACKAGE CONTENTS
• HDMI 4Kx2K Audio Extractor • 5V Power Adaptor
SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/PS3 player and output display (TV/monitor) and amplifier/active
speakers with connection cables.
FEATURES
• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolution up to 4K2K@50/60Hz (YUV4:4:4)
• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• Supports HDMI audio sampling rate up to 192 kHz
• 10bits HDR pass through
• Supports CEC bypass
Note: When displaying HDMI 4Kx2K signal, equivalent source signal, output display and HDMI cables are
required in order to secure the best image display.

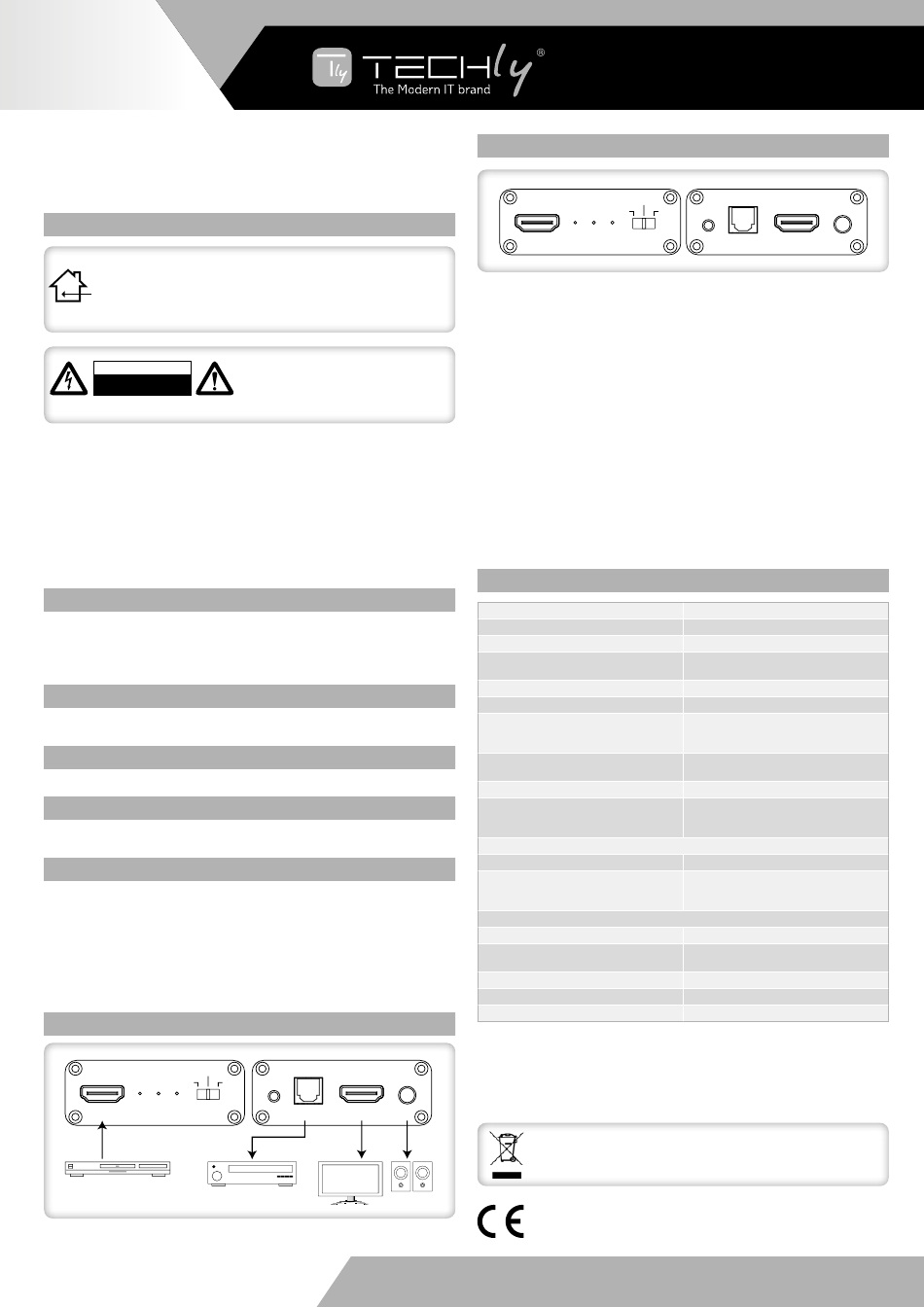

CONNECTION DIAGRAM
Bitstream Bitstream
TV TV
HDMI In HDMI In LPCM Link Power LPCM Link Power
DVD or Blu-ray Player DVD or Blu-ray Player
WWW.TECHLY.COM
To reduce risk of electric shock, this product should
ONLY be opened by an authorized technician when
service is required. Disconnect the product from mains
and other equipment if a problem should occur. Do not
• Audio extraction for non-HDMI AV receivers or
wider audio systems
• User's Manual
LPCM LPCM 5V/DC 5V/DC
2CH 2CH
Optical Optical HDMI Out HDMI Out
Display Display
Amplifier Amplifier
Speaker Speaker
OPERATION CONTROLS AND FUNCTIONS
HDMI In HDMI In
LPCM Link Power LPCM Link Power
HDMI IN: This slot is to connect with source equipment such as Blu-ray/PS3 player with HDMI signal sending.
LPCM: This LED will illuminate when the output audio EDID is switch to LPCM 2CH.
Link: This LED will illuminate when input source is connected with HDMI signal.
Power: This LED will illuminate when the unit is connected with power supply.
TV/Bitstream/LPCM 2CH: This switch allows users to select the source's audio EDID.
• TV Mode: Switch to TV mode to use the HDMI output port's EDID.
• Bitstream Mode: Switch to Bitstream mode to use the HDMI output port's EDID, the audio supports up to
compressed audio 5.1 channels.
• LPCM 2CH Mode: Switch to LPCM 2CH mode to use HDMI output port's EDID, the audio supports up to
LPCM 2 channels.
DC 5V: Plug with 5V DC power adaptor from the AC wall outlet for power supply.
Optical out: Connect to audio equipment such as an amplifier or Hi-Fi system with an optical cable for digital
audio output. Supports up to bitstream audio 5.1CH and LPCM 2CH.
HDMI out: Connect to the display (TV/monitor) with an HDMI cable for video and audio signal output. For
4Kx2K or 3D image display, an equivalent standard display is required. No HDMI output connection is required
to send audio through the analog and optical outputs.
L/R OUT: Connect to audio equipment such as an amplifier or active speakers with 3.5mm phone jack cable
for stereo audio outputs.
Note: Depending on the input audio format, the unit may not output audio through all output port. For
Example, the L/R analog output port will have no audio when the input audio format is other than LPCM 2CH.
SPECIFICATIONS
HDMI compliance
HDCP compliance
Video Bandwidth
Video resolutions
Color space
Color Depth
HDMI Audio Formats (Pass-through)
Optical Audio Formats
L/R Audio Formats
ESD Protection
CONNECTION
Input
Output
MECHANICAL
Dimensions (L-W-H)
Power Supply
Operating Temperature
Storage Temperature
Relative Humidity
Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes and modifications of the product or
damage caused due to incorrect use of this product.
L/R L/R
In compliance with EU Directive WEEE this product is marked with this symbol. It means
that used electrical and electronic products should not be mixed with general household
waste. There is a separate collections system for these products in compliance with WEEE
directive, otherwise contaminative and hazardous substances can pollute the environment.
With the CE sign, Techly
standards and directives.
HDMI 2.0 4K2K
AUDIO EXTRACTOR
Bitstream Bitstream
TV TV LPCM LPCM 5V/DC 5V/DC
2CH 2CH
Optical Optical HDMI Out HDMI Out
HDMI 2.0b
HDCP 2.2 and HDCP 1.4
18 Gbps
Up to 4Kx2K@50/60HZ (UYV 4:4:4), 4Kx2K@30Hz,
080P@120Hz and 1080P 3D@60Hz
RGB, YCbCR 4:4:4, YCbCr 4:2:2
10-bit, 12-bit
LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH,
DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD
and DTS-HD Master Audio
LPCM 2CH, Dolby Digital 2~5.1CH
and DTS 2~5.1CH
Analog Stereo 2 CH
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
1 x HDMI Type A (19-pin female)
1 x HDMI Type A (19-pin female)
1 x L/R Audio Out (3.5 mm Stereo Mini Jack)
1 x Optical Out (S/PDIF)
77 x 64 x 23 mm
Input AC 100-240V 50/60Hz
Output DC 5V/2A
0˚C~40˚C / 32˚F~104˚F
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
20 – 90% RH (no condensation)
ensures that the product is conformed to the basic European
®
DVD DVD
L/R L/R
