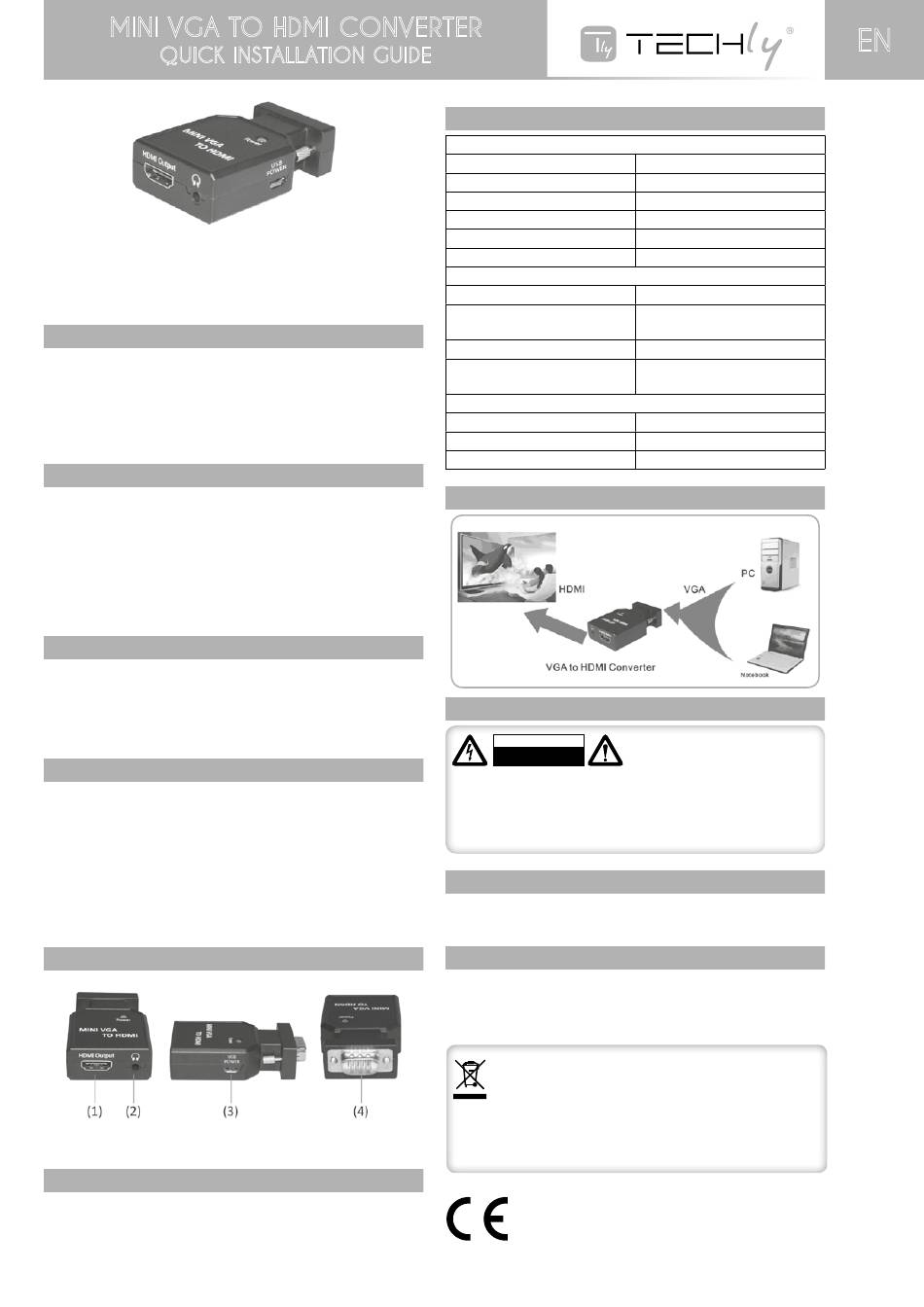

Techly MINI VGA TO HDMI CONVERTER Quick Installation Manual

MINI VGA TO HDMI CONVERTER
QUICK INSTALLATION GUIDE
Dear customer
Thank you for purchasing this product. For optimum
performance and safety, please read these instructions
carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
INTRODUCTION:

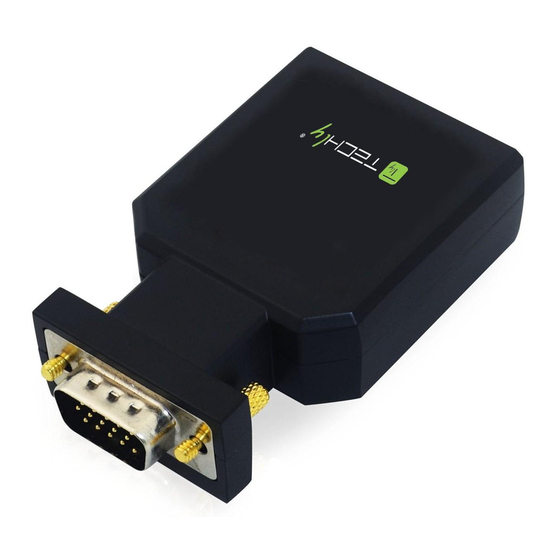

The Mini VGA to HDMI converter can convert analog PC
(RGBHV ) and audio signal to digital HDMI format. It can
connect the analog HD-15 VGA output from PC to the digital
HDMI input of the latest HD ready plasma, LCD or DLP TV. Its
high bandwidth capability supports a wide range of PC and
HDTV resolutions.
FEATURES:
• Video and audio in full digital HDMI format, no transmission
loss!
• Supports standard VESA VGA timing output .HDMI output
support up to 1920x1080@60Hz.
• Provides advanced signal and processing with great
precision colors.
• No need external power adapter (powered by USB cable)
No need drive software, plug and play
RESOlUTIONS:
• Automatically identify the HDTV or monitor EDID by DDC
channel.
• Adapt to HDTV or DVI monitor automatically.
• No power adaptor, no messy cords—just one HDMI cable.
• Hassle Free! Plug and play
SUppORTED INpUT/OUTpUT MODE:
640x480@60/75Hz,
800x600@60/75Hz,
1024x768@75Hz,
1152x864@60/75Hz,
1280x600@60Hz,
1280x720@60Hz,
1280x768@60/75Hz,
1280x800@60Hz,
1280x960@60Hz,
INTERFACE SpECIFICATIONS:
(1) HDMI Output
(2) Audio Input
ACCESSORIES:
USB Cable -------------------------------------------------1 PC
VGA Cable --------------------------------------------------1 PC
Audio Cable ------------------------------------------------1 PC
User Manual -----------------------------------------------1 PC
1280x1024@60/75Hz,
1360x768@60Hz,
1366x768@60Hz,
1400x1050@60Hz,
1440x900@60Hz,
1600x900@60Hz,
1600x1200@60Hz,
1680x1050@60Hz,
1920x1080@60Hz
(3) USB 5V Input
(4) VGA Input
SpECIFICATION:
Signal Inputs/Output
Video Input
HDMI Output
Connector
Input Signal
H + V
Audio Input
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
External Power Supply
Power Consumption
DC Power Adapter
CONNECTION IMAgE
SAFETY pRECAUTIONS
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
authorized technician when service is required. Disconnect
the product from mains and other equipment if a problem
should occur. Do not expose the product to water or
moisture.
MAINTENANCE:
Clean only with a dry cloth. Do not use cleaning solvents or
abrasives.
WARRANTY:
No guarantee or liability can be accepted for any changes
and modifications of the product or damage caused due to
incorrect use of this product.
In compliance with EU Directive WEEE this product
is marked with this symbol. It means that used
electrical and electronic products should not
be mixed with general household waste. There
is a separate collections system for these products in
compliance with WEEE directive, otherwise contaminative
and hazardous substances can pollute the environment.
With the CE sign, Techly® ensures that the pro-
duct is conformed to the basic European stan-
dards and directives.
VGA(RGBHV)
compatible with HDMI 1.3
VGA/HDMI
RGB: 0.7 Vp-p 75 ohm
3 to 5 Vp-p
Analog audio L,R
0° to +70°
10% to 85 % RH
(no condensation)
-10° to +80°
5% to 90 % RH
(no condensation)
USB Power (500mA)
0.5 watts (max)
USB Cable
To reduce risk of electric
shock, this product should
ONLY be opened by an
EN
